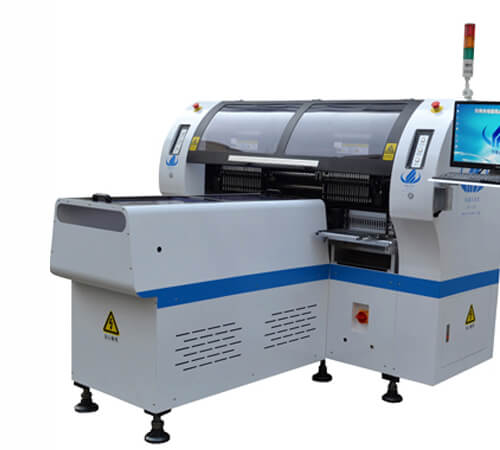

LED Strip Pick and Place Machine HT-XF

Speed:150000~170000CPH
PCB:Max.:300mm*1200mm Min.:60mm*300mm
Weight:1300KG
Components:LED 3014/3020/3528/5050 etc.
Product description: LED Strip Pick and Place Machine HT-XF, Speed:150000~170000CPH, PCB:Max.:300mm*1200mm Min.:60mm*300mm, Components:LED 3014/3020/3528/5050 etc.Weight:1300KG
INQUIRY

LED strip Pick and Place Machine HT-XF

Specifications:

This LED PCB high speed pick and place machine HT-XF is 150000CPH, suitable for LED strip PCB producing. Welcome world wide distributor contact us for more details.

PCB Length Width	Max.:300mm1200mm Min.:60mm300mm
PCB Thickness	0.5~5mm
PCB Clamping	Adjustable Pneumatic
Mounting Mode	Group to take and group to mount
Software	Windows 7
Display	LED Monitor
Input Device	Keyboard,Mouse
No. of Camera	5 sets of imported camera/Vision alignment,Mark correction
Mounting Precision	±0.02mm Chip
Mounting Height	15mm±2
Mounting Speed	150000~170000CPH
Components	LED 3014/3020/3528/5050 etc.
Components Space	0.2mm
No. of Feeders	34PCS
Power	220AC 50HZ
Power Comsumption	5KW
Air Force	0.5mpa
Operating Environment	23℃±3℃
Conveyor Transmission	Max Length:1.2m, Belt drive
Transmission Speed	>500mm/sec.
Transmission Direction	single (left→right or right→left)
Transmission Mode	Online Drive
Position Mode	Optical
Air Pressure	>5.0kg/cm2
Air Consumption	<100L/min.
Electrical Control	Research and Develop Independently by ETON
Motion Control Card Module	Research and Develop Independently by ETON
X,Y Axies Driving	Servo motor control for X,Y,Z axies
Feeding Way	Electrical Feeder

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
