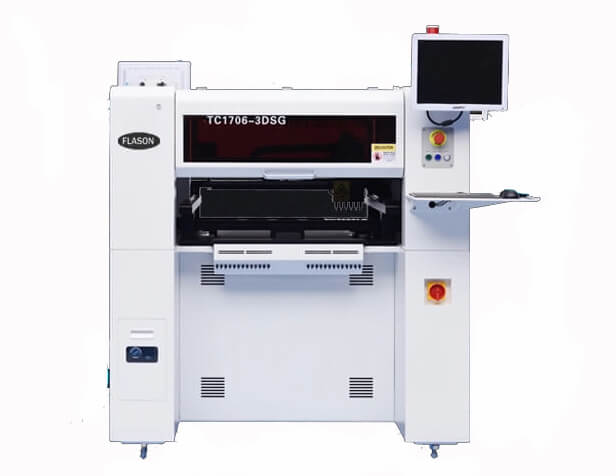

6 Heads SMT Pick And Place Machine

Speed: 20000 CPH
Applicable Components 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, BGA etc
Weight:500KG
Dimension: 1395MM(L)*1180MM(W)*1376MM(H)
Product description: 6 Heads SMT Pick And Place Machine, Speed: 20000 CPH, Applicable Components 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, BGA etc, Weight:500KG, Dimension: 1395MM(L)*1180MM(W)*1376MM(H)
INQUIRY

6 Heads SMT Pick And Place Machine

Specifications:

Feeder No.	60 (Front 26, rear 34)	Product Weight	500KGS
Mounting Heads	6	XYZ Drive Guide Rail	Imported Heavy-duty Taiwan HIWIN Linear Guide Rail
Average Power	600W	XYZ Drive Guide Rail	Imported Heavy-duty Taiwan HIWIN Linear Guide Rail
Positioning Accuracy	0.01mm	Motion Drive System	Panasonic High speed DPS driver
Nozzle Buffering Range	5.0mm	Operating System	Support Windows XP, Win7 operating system
Power Supply	220V, 50Hz	Component Angle	0~360°, synchronized rotation in motion
Compressed Air	0.5-06Mpa	X/Y Running Mode	Imported TBI high-precision ball screw + imported Taiwan HIWIN Linear Guide Rail
Driving Motor	Panasonic servo motor	X/Y Running Mode
Recognition Method	Six heads recognize synchronously	Mark Point Positioning	Full automation
Nozzle Vacuum Source	High-speed on-off vacuum generator with vacuum damage	Intelligent Alarm	Automatic correction and supplement, alarm when materials shortage
Max. Circuit Board Area	650x370mm	Board Input Method	Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning
XY Max. Movement Range	700x619mm	Board Input Method
Z Axis Max. Movement Range	20mm	Visual Display	15" industrial control display ratio 4:3, resolution 1024X768
Belt Type Feeder	8/12/16/24/56mm feeders, stick feeder, tube chip	Programming Mode	Point-to-point programming, visual programming, PCB file coordinates inputting, etc. Off-Off-Line Programming is successfully developed !!!
Max. Mounting Speed	13000CPH	Programming Mode
Average Mounting Speed	9000CPH (Visual)	Recognition Camera No.	1 Mark recognition camera, 6 high speed recognition cameras, 1 high-precision recognition camera
Dimensions	1335x1230x1420mm	Recognition Camera No.
Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc.

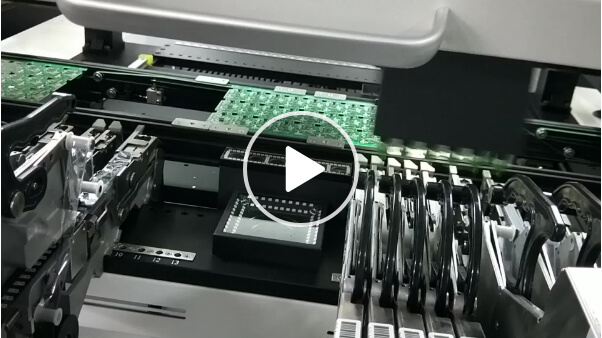

You can view the videos by following link:

https://www.flason-smt.com/videos/6-head-LED-assembly-line-pick-and-place-machine-chip-Mounter.mp4

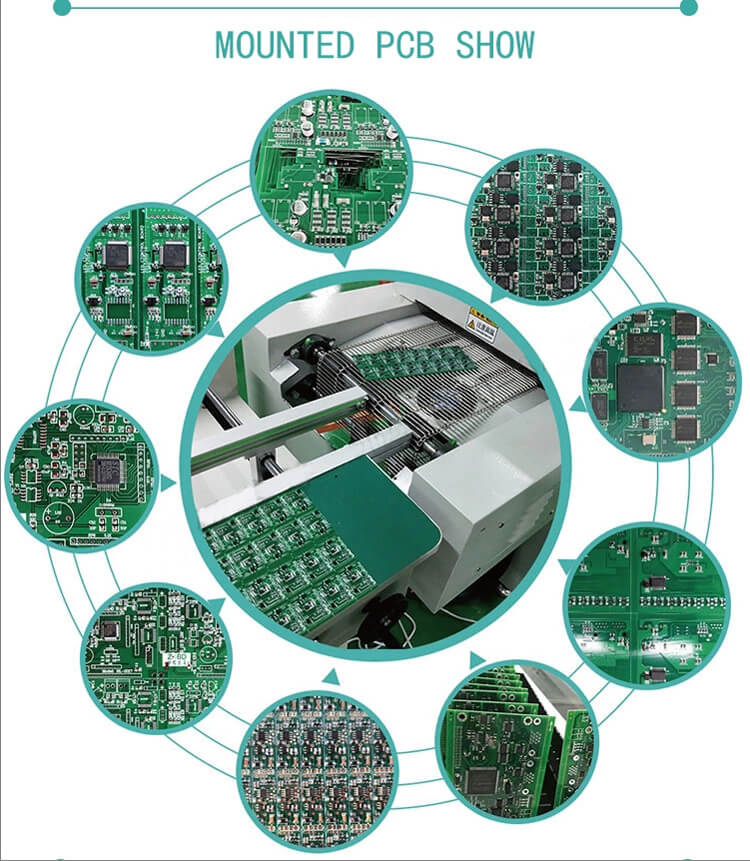

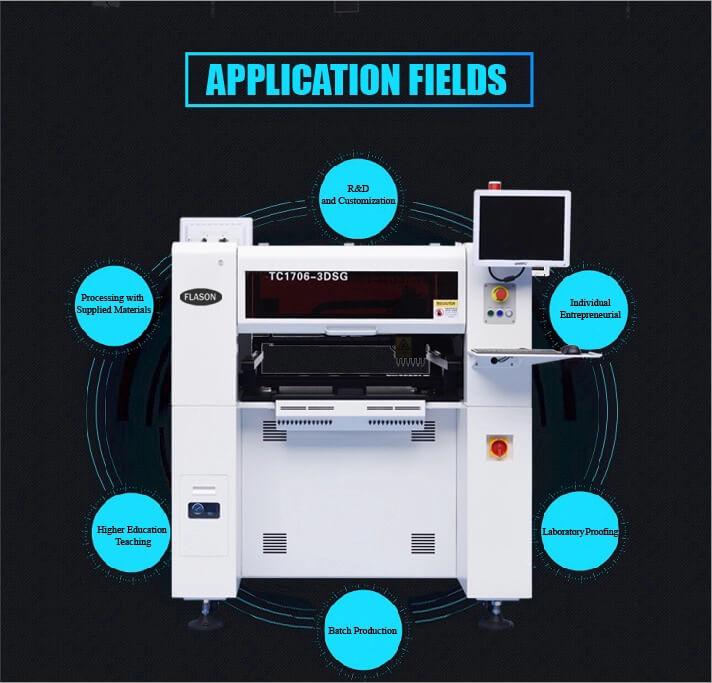

Applications Industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

Product Advantages:

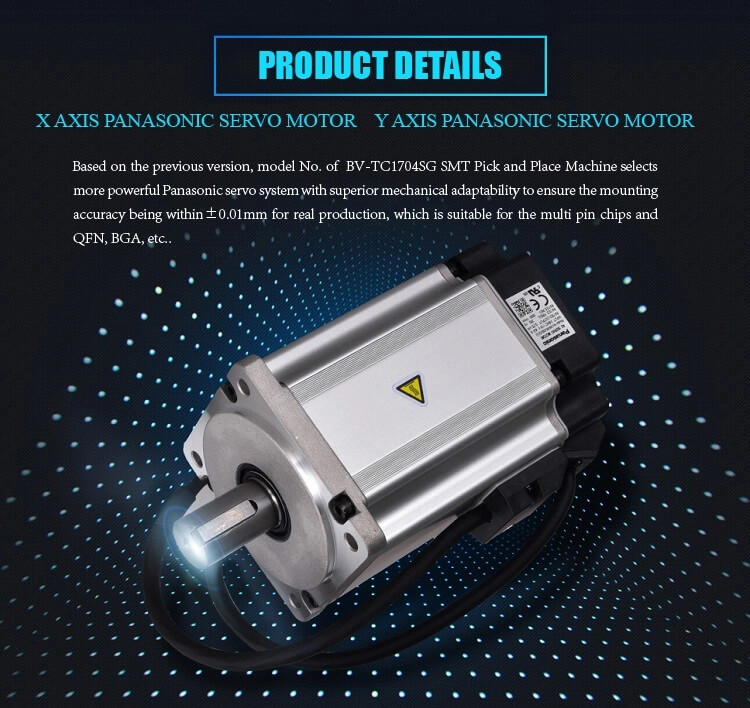

1. Model No. of BV-TC1706-3DSG SMT Pick and Place Machine selects more powerful Panasonic servo system with superior mechanical adaptability to ensure the mounting accuracy being within±0.01mm for real production, which is suitable for the multi pin chips and QFN, BGA, etc..

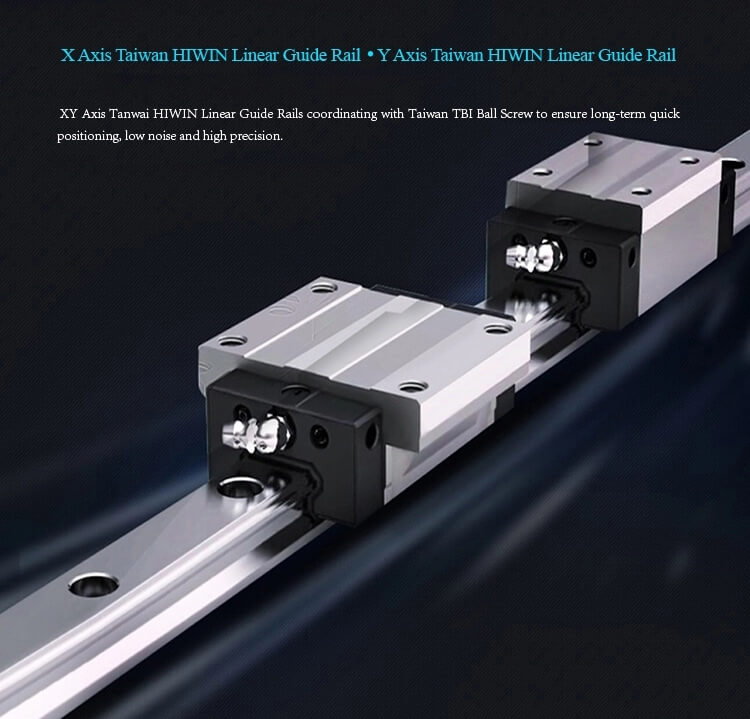

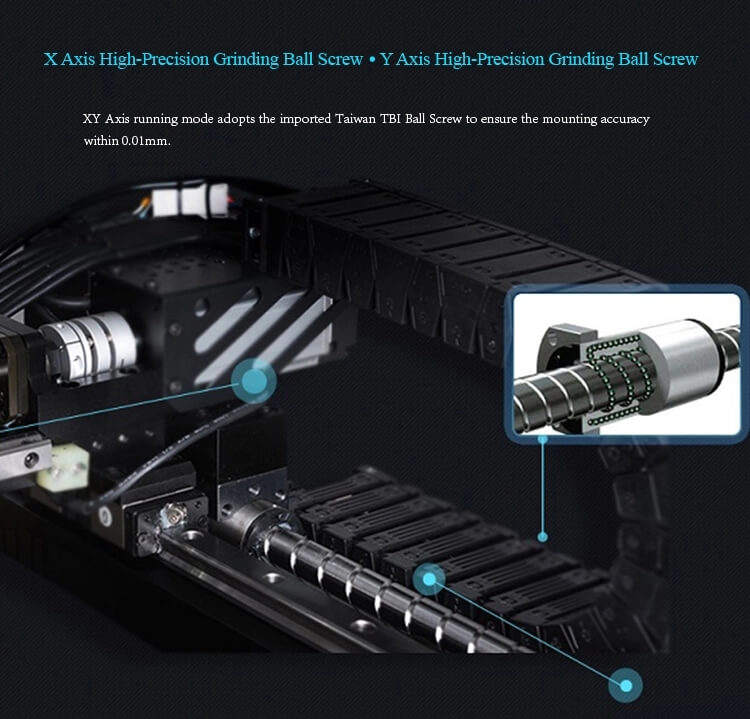

2. XY Axis running mode adopts the imported Tanwai HIWIN Linear Guide Rail and Taiwan TBI Ball Screw to ensure the mounting accuracy within 0.01mm.

3. High strength wear-resistant material is adopted, which improves wear-resistant strength, more flexible bending, less resistance, less noise, avoiding the equipment cable distort.

4 Tanwai HIWIN Linear Guide Rails coordinating with Taiwan TBI Ball Screw to ensure long-term quick positioning, low noise and high precision.

Keywords:

Modular Surface Mounter, JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Samsung SM482 Pick and place Machine, Hanwha SM471 Pick and Place Machine, SMT pick and place machine, cheap price second hand pick and place machine,SMT chip mounter,pick and place machine,used chip mounter, second hand IC placer, modular surface mounter second hand price, chip mounter second hand, Samsung SM481 Plus Pick and place machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com
