Hitachi SIGMA F8 Pick and Place Machine

Description:

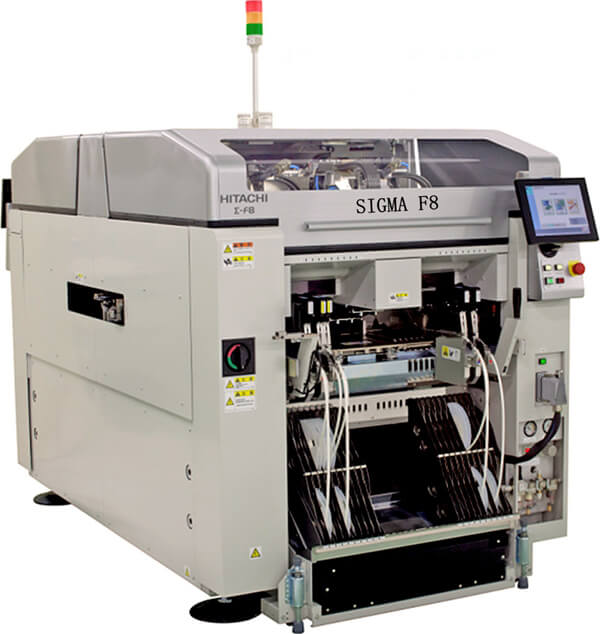

Hitachi SIGMA F8 Pick and Place Machine

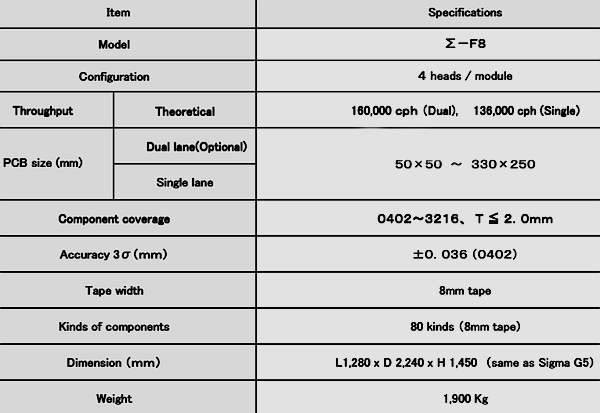

Hitachi SIGMA F8 parameters
Device Name: Hitachi Mounter
Model: SIGMA-SIGMA F8
The placement head consists of: 4 placement heads / modules
Mounting Speed (Highest Mounting Speed): 156,000CPH
Board size (mm) Monorail, / double track: 50 * 50 - 330 * 250
Applicable components: 0402 -
Equipment size (mm): Ll2,80 D2,240 Hl, 450
Equipment weight: about l, 900kg (excluding trolleys and Feeders)
Power supply: 3-phase AC200V ± 20V, 5O / 60Hz
Air pressure: 0.45-0.69MPa (4.6-7kgf / cm2)
Setting: O.45MPa (4.6kgf / cm2)
Hitachi Mounter SIGMA F8, HITACHI Mounter Features:
To leapfrog performance, into the ultra-high-speed era
High Productivity (156,000 cph) High Production Coverage (54,400 cp / m2)
High reliability of small components mounted (placement accuracy 30: soil 36μm)

Flason operation
Evolving direct drive placement head
Super High Speed DDH (Direct Dreve Head)
High-speed high-precision direct-drive placement head
High Speed One By One Suction / Mount
Quatro Head (4 over the head structure)
Four heads were mounted in the same space as the previous generation SIGMA-G4 / SIGMA G5
Significantly increase the production capacity per unit area
Horizontal rotation detection

Detection of all the tiny components of the suction state (with or without oblique),

measured the thickness of components, feedback and adjust the mounting height

Excellent operability
SL (Super Loading) gun
Automatic follow-up guns will greatly reduce the operator's homework
Intelligent operation
The entire line can be controlled on any module (line start / stop / program change)
Bad point identification and other substrate information sharing of all production lines

High reliability
LISA (Line Information Support & Administration)
Material gun material testing to prevent the wrong material production
CV tracking support / data unified management
ACV (Advanced Component Validation)
ACV system
Production line information unified management
Support non-stop switching
Production line operation and management

Theoretical speed of the patch 156, OOOCPH
Placement range 1005 (0402) -32mmIC
Placement accuracy plus or minus 0.03mm
PCB size 50 * 50 - 330 * 250mm
Equipment size: Ll2,80 D2,240 Hl, 450
Power 3-phase AC200V ± 20V, 5O / 60Hz
Equipment weight 1900kg
