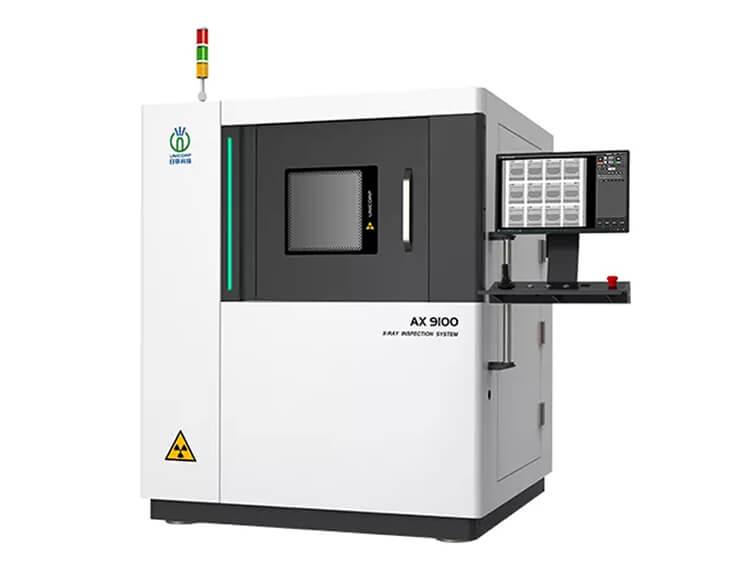

X-Ray Inspection Machine AX9100

X-Ray Inspection Machine AX9100

  • Pixel Size: 85μm
  • Voltage: 0~130kV
  • Weight: 2800 kg
  • Dimensions:1420×1580×2000mm
  • Product description: X-Ray Inspection Machine AX9100, Pixel Size: 85μm, Voltage: 0~130kV, Effective Detection Area: 130*130mm, Frame Rates:20fps, Pixel Matrix:1536*1536, Weight: 2800 kg, Dimensions: 1420×1580×2000mm
  • INQUIRY

X-Ray Inspection Machine AX9100

Product Specification


X-Ray Inspection Machine AX9100

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields
SMT/PCBA, Semiconductor, Lithium Batteries, LED, Photovoltaic
Functions and Feature
1. Large Size Inspection Table with 360° rotation Laser Locator for Precise Location
2. Big Maganification (1600X)
3. Accurate Control, CNC Programming, Automatic Positioning
4. FPD 55° Tilting Inspection
5. 7-Axis Movement
6. Adjustable Console

System Summary

Footprint

1420(W)×1580(D)×2000(H)mm

Machine Weight

2640 kg

Power Supply

AC 110~220V, 50/60Hz

Plywood Packing Size

165(W)×180(D)×225(H)cm

Packing Weight

2800 kg

Power Consumption

3.0 kW

X-Ray Tube

Tube Type

Sealed

Max. Power

40W

Voltage

0~130kV (Adjustable)

Focus Spot Size

7μm

Imaging System

Detector

Flat Panel Detector (FPD)

Pixel Size

85μm

Effective Detection Area

130*130mm

Frame Rates

20fps

Pixel Matrix

1536*1536

System Magnification

1600X

Software

Auto-measuring

BGA Soldering Voids Auto-measuring and Support Data/Graphic Output

Multiple Measuring Tools

Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc

CNC Mode

CNC Programmable Inspection, Easy Operation and User Friendly

Real-time Display

Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc

Navigation

Convenient Target Point Positioning System

Motion Control System

Movement Control

Joystick, Keypad & Mouse

Max. Loading Area/Weight

Ф570mm / 10kg

Max. Inspection Area

450*450mm

Oblique Views

Max. 55° Filting (FPD) / 360° Rotation (Table)

Manipulator

7-axis with X1 / X2 / Y / Z1 / Z2 / T (55°) /R (360°)

Industrial PC

Monitor

21.5’’ FHD LCD Display

System OS

Windows 10 64bit

Hard disk

1TB

RAM

8GB

CPU model

Intel i7 Processor

Other Features

Energy Saving

X-Ray Auto-off when it's out of work over than 5 minutes

Safety Operation

Electromagnetic Interlock and warning Light

Authority Management

Password Magnagement

X-Ray Safety

<1μSv/h (Meets All International Standards)

* Specifications are subject to change without notice, All trademarks are the property of the system maker.
