  • X-Ray Inspection Machine AX7900

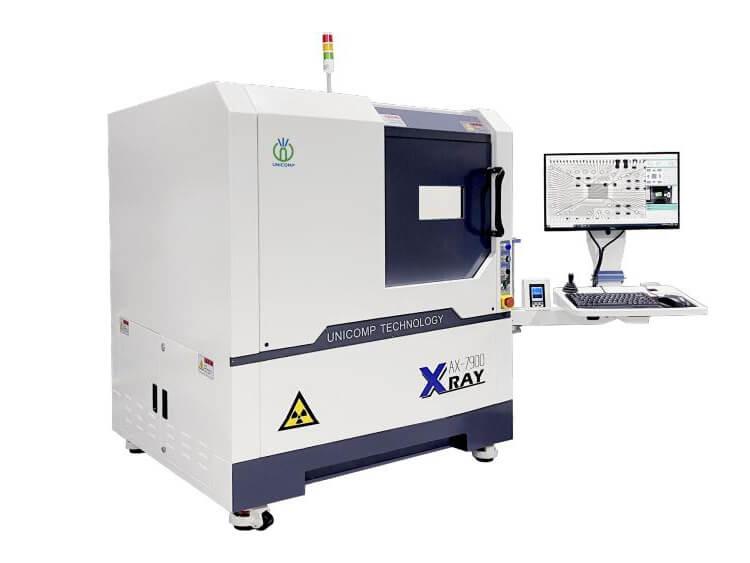

X-Ray Inspection Machine AX7900

X-Ray Inspection Machine AX7900

  • Effective Detection Area: 130*130mm
  • Focus Spot Size: 5μm
  • Machine Weight: 1130 kg
  • Dimension:1200(W)×1200(D)×1500(H)mm
  • Product description: X-Ray Inspection Machine AX7900 Equipment, Effective Detection Area: 130*130mm, Focus Spot Size: 5μm, Machine Weight: 1130 kg, Dimension:1200(W)×1200(D)×1500(H)mm
  • INQUIRY

X-Ray Inspection Machine AX7900

Product Description:


X-Ray Inspection Machine AX7900

Large Size Inspection Table

Laser Locator for Precise Location

accurate Control, CNC Programming Automatic Positioning

FPD Tilting ±30°

Safely Electromagnetic Interlock

Fingerprint Access Management System

Real-time Monitoring of Radiation

Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

Technical Parameters and Specifications

Footprint

1200(W)×1200(D)×1500(H)mm

Machine Weight

 1130 kg

Power Supply

 AC 110/220V,  50/60Hz

Plywood Packing Size

1870(W)×1480(D)×1880(H)mm

Packing Weight

 1330 kg

Power Consumption

 1.3 kW

X-Ray Tube

Tube Type

Sealed

Voltage

0~90kV (Adjustable)

Max. Power

8W

Focus Spot Size

5μm

Imaging System

Detector

Flat Panel Detector (FPD)

Effective Detection Area

130*130mm

Pixel Matrix

1536*1536

Pixel Size

85μm

Frame Rates

20fps

System Magnification

600X

Auto-measuring

BGA Soldering Voids Auto-measuring and Support Data/Graphic Output

Multiple Measuring Tools

Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.

CNC Mode

CNC Programmable Inspection, Easy Operation and User Friendly

Real-time Display

Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc

Navigation

Convenient Target Point Positioning System

Motion Control System

Movement Control

Joystick, Keypad & Mouse

Max. Loading Area/Weight

520*420mm / 10kg

Max. Inspection Area

460*400mm

Tilting Angle

±30°

Manipulator

 5-axis with X / Y / Z1 / Z2 / T

Monitor

24’’ FHD LCD Display

System OS

Windows 10

Hard disk

64bit    1TB

RAM

8GB

CPU model

Intel i7 Processor

Other Features

Energy Saving

X-Ray Auto-off when it's out of

work over than 5 minutes

Authority Management

Fingerprint Access Management System, and Support Password Accessing.

X-Ray Safety

<1μSv/h (Meets All International Standards)

Safety Operation

Electromagnetic Interlock, Warning Light and

Real-time Radiation Leakage Monitor
