Siemens Siplace DX Chip Mounter Pick And Place Machine

Description:

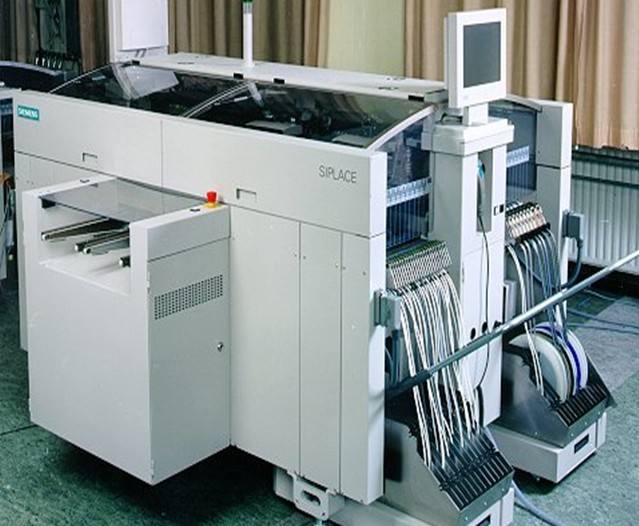

Siemens Siplace DX Chip Mounter

Siemens SMT shooter: D4, D2, D1, S20 25 27 50 60, F3, F4, F5

SIPLACE's new DX series Pick and Place machine, high-performance equipment, and intelligent production solutions are the smart choices for customers.
Siemens Chip Mounter DX Series Features:
SIPLACE's new DX series inherits the many advantages of the SIPLACE series of platforms and combines new and innovative technology applications to provide customers with an integrated solution.
◆ The DX series achieves a very high processing capacity while providing a better cost performance and performance space ratio.
◆ Application of new technology to achieve high placement quality
The universal application of linear motor technology on DX equipment, full-closed loop control system, intelligent X Feeder technology, and placement head design based on 01005 scale application ensure long-term accuracy and various technical indicators of SIPLACE DX series. Both are in the leading position in the industry and have achieved high production quality in the industry.
◆ Intelligent feeding, production and changeover solutions
Not only advanced equipment for the benefit of customers, but also with the innovation of SIPLACE software, allowing customers to easily achieve intelligent loading, production and change lines. For example, the DX series offers more feeder levels, and its unique Split table virtual material trolley technology can help customers easily achieve multi-product collinear production and material management, and achieve high efficiency of equipment.
◆ Fast new product import function
Not only can virtual production and offline confirmation on the programming machine, but also component picking and placement position learning on the machine, with the industry's advanced digital visual recognition system and simpler production operations, the introduction of fast new products.

Basic parameters:
Mounting head CP20 placement head CP12 placement head TH placement head
Component range 01005～6×6mm 0201～18.7×18.7mm 0201～200×125mm
Component height 4 mm 6 mm 25 mm
Mounting accuracy ±41μm, ±0.5°@3σ ±41μm, ±0.5°@3σ ±22μm, ±0.05°@3σ
Model DX4 DX2 DX1
Applicable heads CP20 CP20, CP12, TH CP20, CP12, TH
Theoretical speed 135,500 CPH 65,500 CPH 33,300 CPH
IPC speed 90,500 CPH 38,000 CPH 22,500 CPH
PCB (length X width) mm 50×50～550×560 50×50～610×560
PCB (thickness) mm 0.3~4.5 (others available on request)
8mm feeder level 148 120
Power supply Three-phase 220/208/230/380/400/415VAC±5%. 50/60Hz
Gas supply 5.0bar (0.5MPa)-10bar (1.0MPa)
Machine size (length X width) mm 1900×2734 1500×2854 1500×2854
Machine weight 346Okg 2532kg 2482kg
