  • Selective Soldering Machine ERSA VERSAFLOW 4 XL

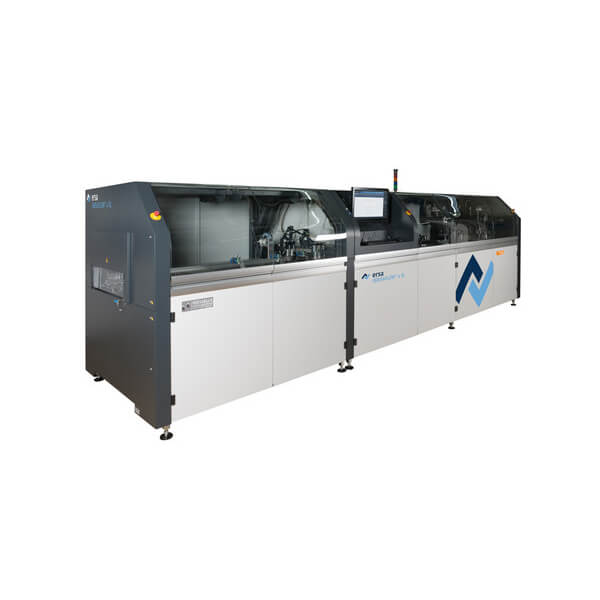

Selective Soldering Machine ERSA VERSAFLOW 4 XL

Selective Soldering Machine ERSA VERSAFLOW 4 XL

  • PCB size 680 x 610 mm
  • 4 flux spray heads
  • PCB length 127-680 mm
  • Miniwave, approx. 13 kg
  • Product description: Selective Soldering Machine ERSA VERSAFLOW 4 XL, PCB size 680 x 610 mm, 4 flux spray heads, PCB length 127-680 mm, Miniwave, approx. 13 kg

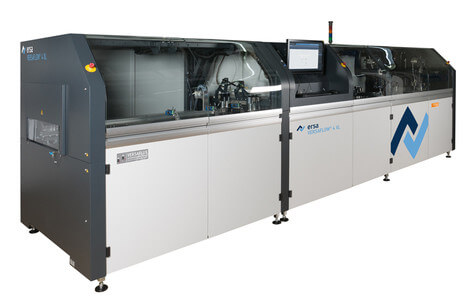

Selective Soldering Machine ERSA VERSAFLOW 4 XL

Products description

High-end selective soldering system to integrate into in-line manufacturing concepts
Max. PCB size 680 x 610 mm (option 1,200 x 610 mm)
Product change without downtime
VERSACAM for solder wave height measurement on the fly
VERSAFLEX solder module x/y/z-variable
Parallel process through separation of fluxing, preheating and soldering cycle
Use of up to 4 flux spray heads with two independent axes (2 spray heads per axis)
Flexible system configuration on account of modularity of the design
Ideal for linking to manual workstations or peripheral equipment
Secure process control with monitoring of all relevant processes
CAD Assistant 4 for offline programming
Link for traceability systems for process control
State-of-the-art user interface: ERSASOFT 5


Printed circuit board formats of up to 610 x 1,200 mm can be soldered efficiently and safely with the VERSAFLOW 4 XL making it a perfect system for large, highly integrated assemblies or LED applications. Featuring the completely new VERSAFLUX flux module and VERSAFLEX solder module, the VESRAFLOW 4 XL is extremely flexible and manages most diverse solder jobs. Depending on the application and on the throughput requirements called for, additional preheat and solder modules can be integrated into the system. In the maximum configuration level of the VERSAFLOW 4 XL, the system can operate 3 VERSAFLEX modules and 4 preheat modules. As an option it is possible to integrate a preheat module in front of the flux module.

The VERSAFLOW 4 XL offers an interesting option for smaller assemblies up to a max. length of 330 mm. Thanks to an additional stopper in each module, two PCBs can be processed separately but simultaneously. This option doubles system throughput and does away with dual track conveyor systems. The complex machine movements are controlled using the intuitive operator software ERSASOFT 5. The modern and future-oriented CAD Assistant 4 is integrated in this software, which means complex programming of the solder parameters is a thing of the past.

Length: 4,700 mm
Width: 1,800 mm
Height: 1,600 mm
Conveyor system
Roller conveyor
PCB width 50-610 mm
PCB length 127-680 mm (1,200 mm option)
PCB weight 15 kg, 20 kg (option)
Flux module
VERSAFLUX module with 2 independent axis systems
High-precision spray fluxer
No. of spray heads per axis: up to 2
Preheat module
IR bottom-side (basis)
Top-side convection (option)

Solder module
VERSAFLEX solder module with 2 independent axis systems
Miniwave, approx. 13 kg

Roller conveyor for direct board handling
Programmable width adjustment
Max. PCB weight: 15 kg (heavy load conveyor 20 kg)
VERSAFLUX with 2 independent axis systems
High-precision drop jet fluxer with up to 2 spray heads per axis
2 different fluxes per module
Up to 4 preheat modules
IR preheaters, individually configurable, top-side convection heaters
Pyrometer to monitor temperature
Up to 3 VERSAFLEX solder modules with 2 independent axes, carrying one solder pot per axis
CAD Assistant 4
ERSASOFT 5 incl. integration of MES (Manufacturing Execution System)
