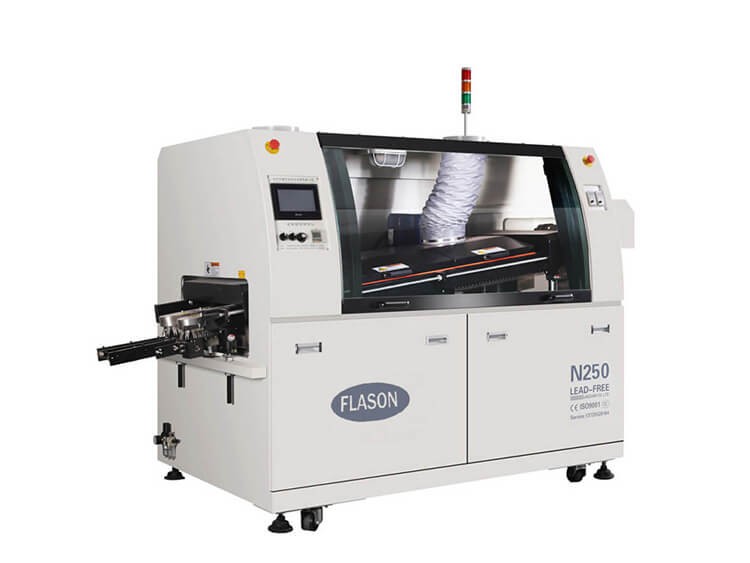

Small wave soldering machine N250

Weight: 700KG
Dimensions: 2600(L)*1200(W)*1600(H)
spray fashion: SMC+ST 8 nozzle
Heating zone Length: 800mm
Product description: Small wave soldering machine, Weight: 700KG, Dimensions: 2600(L)*1200(W)*1600(H), spray fashion: SMC+ST 8 nozzle, Heating zone Length: 800mm
INQUIRY

Small wave soldering machine N250

Introduction:

1. Automatic conveying power system and auto synchronous board feeding functions.

Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
Fluxer system using transverse Japanese spray Nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
PLC is used to control the machine, to ensure the reliability and stability of the system.
Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
Special alloy solder fingers, strengthened double v-groove.
Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
Timer startup feature for solder pot, solder melted within 90 minutes.
Automatic finger cleaner ensure the cleanliness of solder fingers.

Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Model No.	FLASON N250
Number of Pre-heaters	2
Pre-heater passage	800mm
Body size	1800(L)1200(W)1600(H)
Outside dimension	2600(L)1200(W)1600(H)
Weight	700KG
Total/steady consumption	11KW/4-6KW
Air supply	0.5MPa
Preheating style	Hot air
Preheater consumption	220V 5KW
Control method	Press key +PLC Option: touch screen, PC
Range of temp. set-point	Room temperature---300℃
Preheating time	About 10-15mins for setting 150℃
Solder application	Lead-free / Sn-Pb
Solder pot capacity	220KG
Solder pot temperature	300℃
Solder pot consumption	380V 6KW
Solder temp. control method	PID&SSR
Wave motor power	500W 220V
Solder melting	About 120mins for setting 250℃
PCB width	50-250mm
Conveyor speed	0-1800mm/min
Conveyor direction	L-R (R-L optional)
Conveyor Inclination	4—7 º
Flux pressure	3-5 bar
Flux capacity	3.2L

Keywords:

Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
