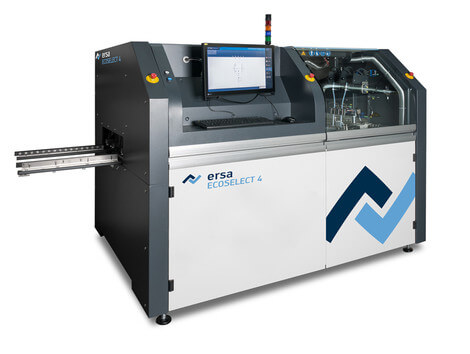

Selective Soldering Machine ERSA ECOSELECT 4

Selective Soldering Machine ERSA ECOSELECT 4

  • PCB size 508 x 508 mm
  • Maximum PCB weight: 15 kg
  • Electromagnetic solder pot
  • Mini-wave 13 kg up to 2 pots
  • Product description: Selective Soldering Machine ERSA ECOSELECT 4, PCB size 508 x 508 mm, Maximum PCB weight: 15 kg, Electromagnetic solder pot, Mini-wave 13 kg up to 2 pots
  • INQUIRY

Selective Soldering Machine ERSA ECOSELECT 4

Products description



Flexibly integrable soldering system: inline or batch operation
VERSAFLOW 4 technology
PCB size 508 x 508 mm
Roller conveyor
Up to two spray heads and flux tanks
Powerconvection
y/z variable dual solder pots
Automatic nozzle activation
Upgrade with independent flux module to a full inline machine
Award-winning ERSASOFT 5 software
VERSACAM – solder wave height measurement “on the fly”

Selective Soldering Machine ERSA ECOSELECT 4

The ECOSELECT 4 is Ersa’s newest selective soldering system. It is a compact system that is perfectly suited for small up to medium-sized batches where flexibility is essential. The ECOSELECT 4 features machine technology of the latest VERSAFLOW generation. Its conveyor system is a high-quality roller conveyor for a max. PCB size of 508 x 508 mm. The ECOSELECT 4 can be used inline or in batch operation. Another machine highlight is the new power convection heating, for example, which provides an optimal and homogenous warm-up also of complex boards. Like all Ersa selective soldering systems the ECOSELECT 4 is equipped with a programmable precision spray fluxer with integrated spray control for precise and economical flux application in single spots or in tracks. A second spray head is available as an option.
Innovative machine operation with ERSASOFT 5
The new dual solder pot system of the VERSAFLOW 4 is also available for the ECOSELECT 4. Both mini wave pots can be moved flexibly in Y/Z direction. Thus, the machine operator can install solder nozzles with different diameters in order to quickly solder connectors using a nozzle with large diameter and using a very slim nozzle shape for joints which are difficult to reach. The innovative and user-friendly ERSASOFT 5 software renders machine operation even more intuitive. Through individual user interfaces, each group of operators receives, at one glance, the data and information it requires. A further software highlight is the PiP technology (picture in picture) combined with a process monitoring camera.

Dimensions
Length from 2,000 mm
Width approx. 1,800 mm
Height approx. 1,700 mm
Conveyor system
Roller conveyor
PCB width: 50-508 mm
PCB length: 127-508 mm
Maximum PCB top side clearance: 120 mm
Maximumg PCB bottom side clearance: 60 mm
Maximum PCB weight: 15 kg
Media supply
Nitrogen
Pneumatic system
Electric supply
Extracted air
Flux module
Drop-Jet in different sizes
Preheat module
IR heating, convection (option), powerconvection (option)
Solder module
Electromagnetic solder pot
Mini-wave 13 kg up to 2 pots
