SMT Reflow Oven TSM TRA F71 Air
Products description

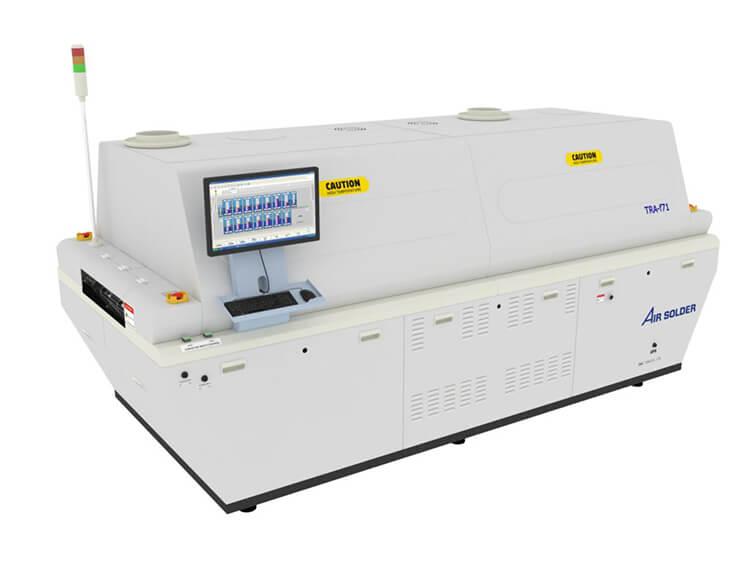

SMT Reflow Oven TSM TRA F71 Air
System configuration with outstanding durability
Reliable quality
Energy saving insulation structure
Blowermotor with triple sealing
Reliable follow-upmanagemen
TRA series, the most output to realize superior performance and Econology
Realize ultra low consumption power in order to reduce CO2,
eventually Econology, key words of TRA series under ceaseless technical
development, Partial start-up mode heats up the reflow system in 2 steps to
minimize the peak electricity, which greatly saves the operational cost
for the factory with lower contracted power.
Also, heating zone is diversified in order to cope with characteristics of production
shape of various boards and maximized heating efficiency with newly designed
Nozzle structure, improved for air flow resistance.
The best product is realized thanks to contribution of the lowest temperature
deviation, applied for an advanced ultra uniform temperature control system.
TRA series offers an efficient production method with up and down heating and also
can switch heating method beside of a way of up and down. User friendly configured
MMI screen shows a various functions such as temperature monitoring, period of
operation maintenance alarm, calibration of temperature and help pop up window for
program running while considered user's easy access and its convenience in maximum.
RTPM (op), a Real Time Temperature Profile Monitoring System offers abundant information, compatibility and the process index & data chart for analyzing process.
The TRA series is the outcome of realizing Econology and offers the best performance.
Satisfying the economic effectiveness and practicality of your business
· Realize ultra-low power consumption to reduce CO2
· Partial start-up controlling heater in multi stages
· Weekly timer
· Realize the lowest temperature deviation applied with temperature control system of the latest ultra-uniform
· Maximize Flux emission capacity with mounting exclusive emission fan of eliminating Flux inside of oven
PCB size:
50 – 460mm (500 is optional)
Heating zone length:
310mm
Total heating lenght:
2000mm
Top heating zones:
7
Bottom heating zones:
7
Cooling zones:
1
Conveyor type:
Chain + PCB ANTI-WARP center support (Chain + Mesh is optional)
Conveyor speed:
0.3 – 1.6m/min
Conveyor height:
900 ± 20mm
Temperature accuracy:
± 1ºC
Temperature repeatability:
± 1ºC
Warm-up time:
30 – 40min
Profile time change:
15 – 30Min
PCB clearance TOP/BOT:
30/23mm (others available on demand)
Control:
PC, LCD monitor, Windows 10 software (SMEMA interface is optional)
Power supply:
3P 220/380V 50/60Hz (others available on demand)
Power consumption peak/average :
28/10KW
Compressed air supply:
5 bar
Compressed air consumption :
up to 105Nl/min
Fume extraction (m3/h): 1200
1200m3/h
Overall dimensions:
3250х1210х1450mm
Weight:
1100KG
