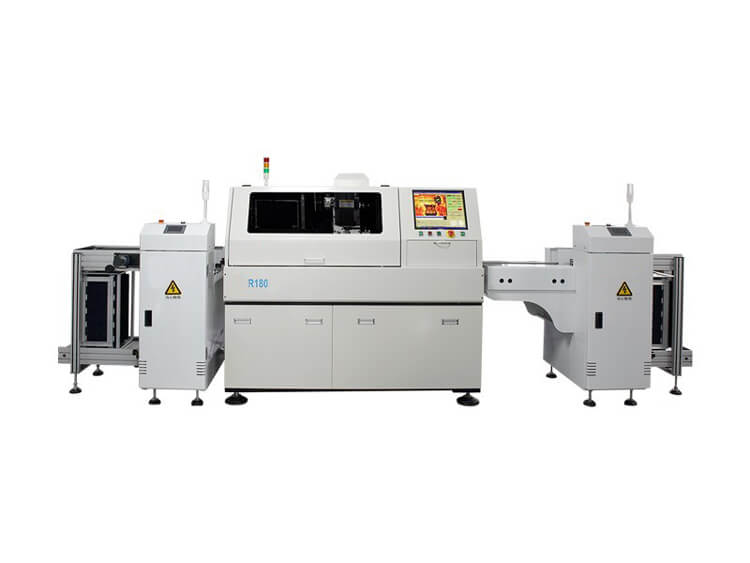

Inline vertical Inserter plug-in machine R180

Theoretical speed 18000PCS / H
Lead span Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM
weight 1600KG
Dimension: 1700mm × 1300mm × 1600mm
Product description: Inline vertical Inserter plug-in machine R180, Theoretical speed 18000PCS / H, Lead span Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM, weight 1600KG, Dimension: 1700mm × 1300mm × 1600mm
INQUIRY

Specifications:

Inline vertical Inserter plug-in machine R180

Computerized,Chinese&English interface,Convenient & user friendly
Intensive insertion mode,0-360°with 1°increment
Imported precision ball screw and AC servo motor drive,Positioning
accuracy＜0.001mm
Machine vision system,improve position alignment,Muti fiducials ,
maintain accuracy of insertion
USB port for data transmission
High speed up to 22000 cph,greatly increased 20% compared with last
generation machine
Maximum of 4 lead span capability
In-line production capability
Component pressing by connecting rod (High Stability)
Component feeding by AC servo motor
Cutting & clinching by servo motor (Adjustable)

Theoretical speed	18000PCS / H
Insertion direction	360 ° in 1 ° increments
Lead span	Double pitch2.5 / 3.5 / 5.0 / 7.5 / 10.0MM (optional)
Substrate size	Minimum50MM * 50MM, maximum 350MM * 280MM
Substrate thickness	0.79 ~ 2.36MM
Component specifications	The maximum height is23MM and the maximum diameter is 13MM
Component types	Capacitor, transistor, transistor, LED light, key switch, resistor, connector, coil, potentiometer, fuse, Wire seat, fuse wire and other vertical tape packaging materials.
Component Lead Shear Angle Length	1.2 ~ 2.2MM (adjustable)
Component lead angle	10-35 ° (adjustable)
Machine size (length * width * height)	Host1700mm × 1300mm × 1600mm + (10 stations) 500mm × 600mm × 760mm
Machine weight	1600KG
Use power / power	220V, AC (single-phase) 50 / 60HZ, 2.0KVA / 1.6KW (energy-saving)
System protection	Uninterruptible power supply(UPS) configuration, can run for 15 minutes after power failure
Air pressure / gas consumption	0.6MPA / 0.3m3 / min
Machine noise	80 dB
Hole position correction method	Image vision system, multi-point MARK vision correction
Drive System	AC servo, AC motor
Data entry method	USB interface input (EXCEL file format)
Control System	Chinese operation interface(WINDOWS system control platform) Dell LCD monitor
Circuit board conveying method	Manual/ Automatic (optional)
