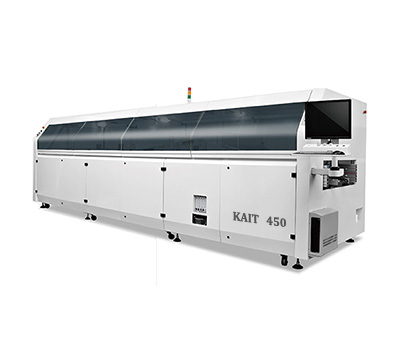

Nitrogen Wave Soldering Machine KTN-450

Nitrogen Soldering Process
Solder pot capacity 480kg
Weight Approx.2500kg
Dimension: 5500*1600*1730mm
Product description: Nitrogen Wave Soldering Machine KTN-450,Nitrogen soldering process,PCB no need cleaning, high soldering quality for high end PCB production feild, like Robort arm, military feild etc.
INQUIRY

Specifications:

Infrared heating method, by this method, the air won't flow, It can keep high level nitrogen level in soldering part. easy to reach oxygen less than 30-50 PPM. High nitrogen level make the solder clean and very few dross nearly no, and for the PCB surface it's very clean, no dross on the surface, so PCB no need cleaning , no need cleaning machine, save many cost for cleaning. High nitrogen level also make the solder more few empty holes inside the solder.

Machine Specification
Model	KTN-450	Solder pot type	4th adjustable
PCB width	Max.50~350mm by Frame	Heating technology	Matrix straight heating, heating efficiency up to 95%
PCB convey height	750±50mm	Solder pot temp.	Room temp. to 350℃,accuracy±1-2℃
Conveyor speed	0-1800mm／Min	Solder pot temp. accuracy	±1℃
Angle	3~7 degree	Finger types	Strong titanium finger /customized
Component height limit	Max.100mm	Solder bar adding way	Manually
Wave height range	0~18mm keep steady	Temp. control	P.I.D +SSR
Wave quantity	2	Machine control	PLC+PC
Preheating length	1800mm	Width adjust	Manually/motorized
Preheating zone	4 zones	Flux adding way	Automatic
Conveyor direction	Left to right	Flux flow rate	10~100ml/min
Preheat power	10KW	Spray method	Step motor+ ST-6 Nozzle
Preheat temp.	Room temp. to 250℃ (adjustable)	Flux recycle	Tray to collect
Heating model	Infrare Tube	Electricity	3P 5 wires 380V/3P 220V
Solder bar type	Lead-free	Total power	Max.22kw
Solder pot power	14kw	Normal running power	Approx.3-5kw
Solder pot capacity	Approx.480kg	Air supply	4~7KG/CM2
Solder pot material	Cast iron	Dimension	550016001730mm
Weight	Approx.2500kg

Keywords:

Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
