  • Nitrogen SMT Reflow Oven TSM TRN III-h102S

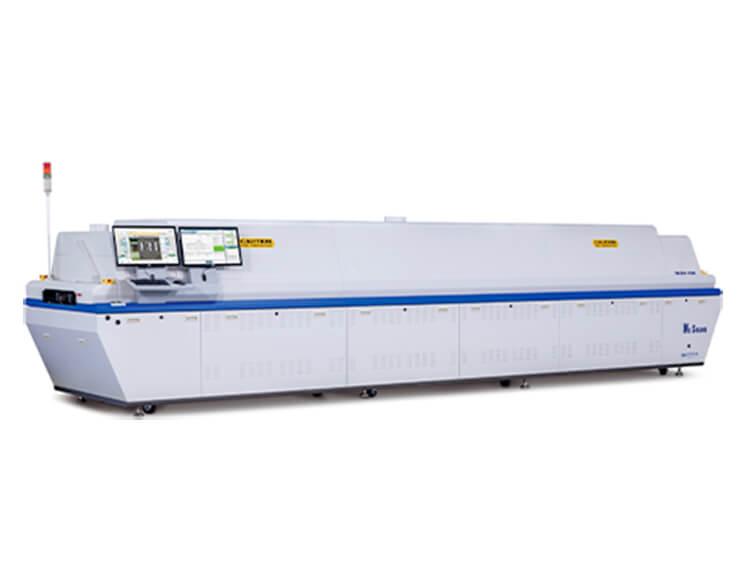

Nitrogen SMT Reflow Oven TSM TRN III-h102S

Nitrogen SMT Reflow Oven TSM TRN III-h102S

  • Heating Zones:10
  • Max PCB Width: 460mm
  • Weight: 2600KG
  • Dimension: 5050х1420х1550mm
  • Product description: Nitrogen SMT Reflow Oven TSM TRN III-h102S, Heating Zones:10, Max PCB Width: 460mm, Weight: 2600KG, Dimension: 5050х1420х1550mm
  • INQUIRY

Nitrogen SMT Reflow Oven TSM TRN III-h102S

Products description



Nitrogen SMT Reflow Oven TSM TRN III-h102S

TRN III series applied with upper and lower Oven Tube Cooling & B/M Seal Cooling offer Nozzle and triple insulation, optimized for connection method of high temperature.
Optimized system for high temperature
The optimized model series specialized for high temperature products are equipped with specially designed oven nozzle structure optimized for system High Convection at high temperature, B/M Seal Cooling and upper & lower Oven Tube Cooling.
Heater Output Monitoring (OP)
Heater Output Monitoring (OP) saves Data as Log File by monitoring output volume (MV), status information which controls each heater. Consequently, prevent heater trouble in advance after determining overheating status.
RPMS- B/M Motion Sensing Monitoring (OP)
Blow Motor Rotation Real Time Monitor : Checking normal operation of motor rotation in each zone and apply with an alarm function
Cooling function of equipment surface temperature (OP)
Additional cooling radiator on the upper oven allows surface temperature down to prevent the case that surface temperature of equipment increasing high temperature (400℃ setting), set by temperature Profile condition of cooling function of equipment surface temperature (OP) is relatively increased and higher than standard temperature Profile condition.
Model Numbering
SPEC
N2 Reflow for high temperature
TRN III-h Series
Closer to Customer’s Needs!
The high temperature Reflow specialized in high temperature setting is created based on solid
foundation of TRN series with an effort of Customer Proximity.
Product features
· Exclusive design specialized for high temperature operation up to 400°C
· Exclusive parts for high temperature and proceeded parts applied
· Highest triple insulation
· Cooling function around B/M sealing
· Oven tube cooling function
· Two FMS basic mounting
· Able to set up temperature difference between zones up to 150°C in max
· Applicable for TRN III-a model specification

PCB size:

50 – 460mm (500 is optional)

Heating zone length:

258mm

Total heating lenght:

2780mm

Top heating zones:

10

Bottom heating zones:

10

Cooling zones:

2

Conveyor type:

Chain + PCB ANTI-WARP center support (Chain + Mesh is optional)

Conveyor speed:

0.3 – 1.6m/min

Conveyor height:

900 ± 20mm

Temperature accuracy:

± 1ºC

Temperature repeatability:

± 1ºC

Warm-up time:

30 – 40min

Profile time change:

15 – 30Min

PCB clearance TOP/BOT:

30/23mm (others available on demand)

Control:

PC, LCD monitor, Windows 10 software (SMEMA interface is optional)

Power supply:

3P 220/380V 50/60Hz (others available on demand)

Power consumption peak/average :

76/10KW

Compressed air supply:

5 bar

Compressed air consumption :

up to 105Nl/min

Compressed nitrogen consumption:

up to 18Nm3/h

Recommended nitrogen purirty

100 ppm

Fume extraction (m3/h): 1200

1200m3/h

Overall dimensions:

5050х1420х1550mm

Weight:

2600KG
