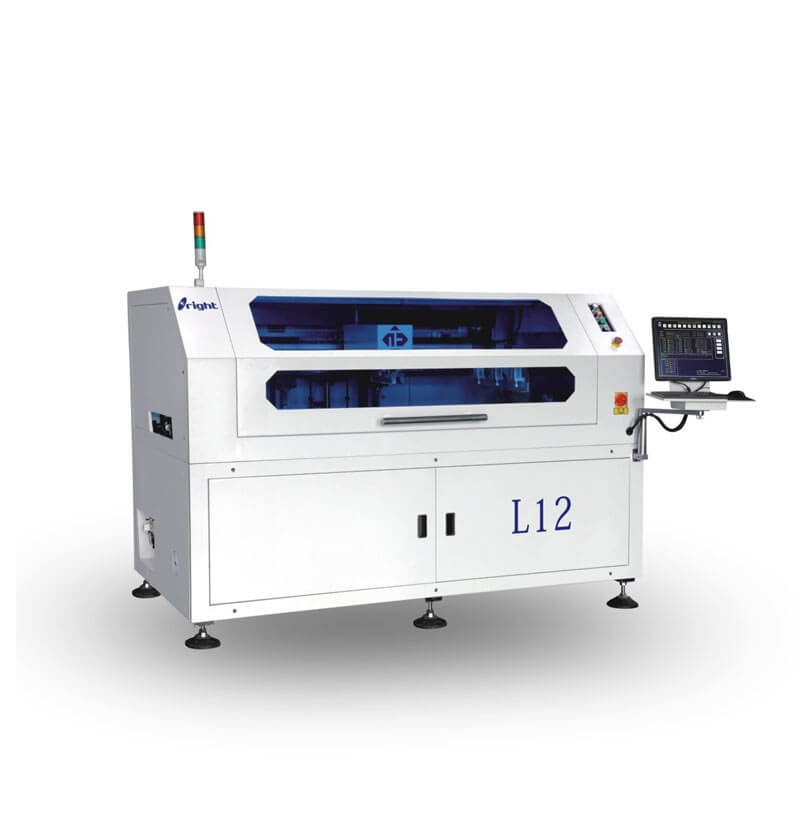

L12 SMT Stencil Printer

PCB Max Size 1200X350mm
Printing Accuracy ±0.03mm
size: 2200(L)X1200(W)X1500(H)mm
Weight:1500Kg
Product description: L12 SMT Stencil Printer Fully Automatic, PCB Max Size 1200X350mm, Printing Accuracy ±0.03mm, size: 2200(L)X1200(W)X1500(H)mm, Weight:1500Kg
INQUIRY

L12 SMT Stencil Printer

Products description

Specification ：
A Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~1200mm x 350mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Machine specification parameters

Item	L12
Min Size	737X737mm
Max Size	1500X750mm
Thickness	25~40mm
PCB Min Size	80X50mm
PCB Max Size	1200X350mm
PCB Thickness	0.4~6mm
PCB Warpage	＜1%
Transport Height	900±40mm
Transport Direction	Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed	Max 1500mm/S Programmable
Support System	Magnetic Pin/Up-down table adjusted/supportblock
Clamping System	Elastic side clip / Z direction sheet
Squeegee Speed	6~200mm/sec
Squeegee Pressure	0~15Kg Pressure control
Squeegee Angle	60°/55°/45°
Squeegee Type	Stainless steel(Standard), plastic
Stencil Separation Speed	0.1~20mm/sec Programmable
Cleaning System	Dry、Wet、Vacuum (Programmable)
Table Adjustment ranges	X:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy	±0.015mm
Printing Accuracy	±0.03mm
Cycle Time	<15s (Exclude Printing & Cleaning)
Product Changeover	<5Min
Air Required	4.5~6Kg/cm2
Power Input	AC:220±10%,50/60HZ 1Φ 3KW
Control Method	PC Control
Machine Dimensions	2200(L)X1200(W)X1500(H)mm
Machine Weight	Approx:1500Kg
