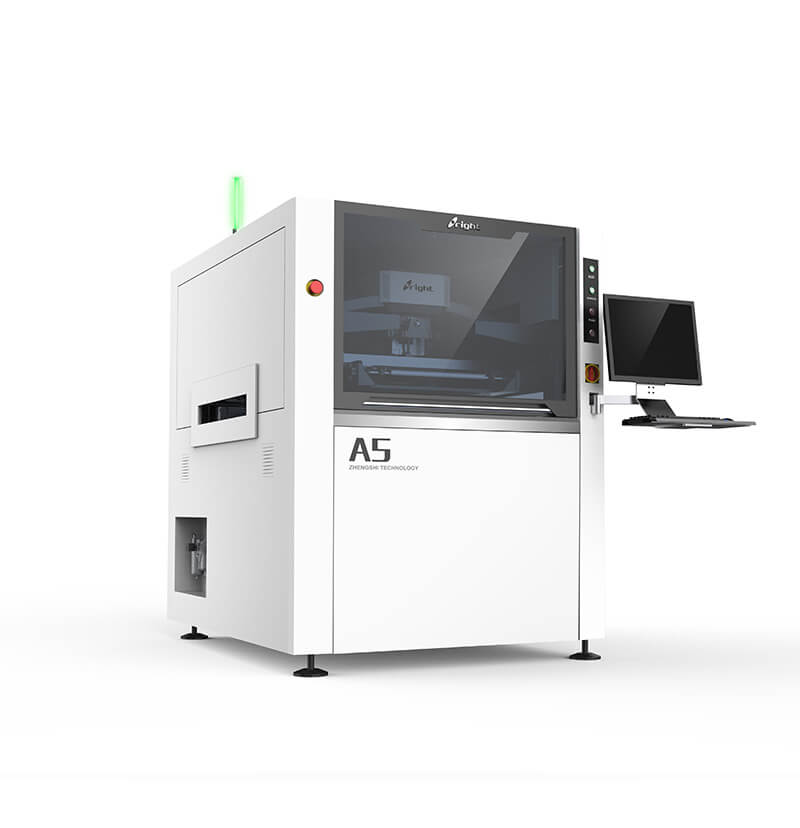

A5 SMT Stencil Printer Fully Automatic

PCB Max Size 400×340mm
Printing Accuracy ±0.025mm
size: 1220*1355*1500mm
Weight:1000Kg
Product description: A5 SMT Stencil Printer Fully Automatic, PCB Max Size 400×340mm, Printing Accuracy ±0.025mm, size: 1220*1355*1500mm, Weight:1000Kg
INQUIRY

A5 SMT Stencil Printer Fully Automatic

Products description

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification ：
A Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~400mm x 340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Model			A5
Item
Screen Frames		Min Size	470×370mm
		Max Size	737×737mm
		Thickness	25~40mm
PCB Min Size			50×50mm
PCB Max Size			400×340mm
PCB Thickness			0.4~6mm
PCB Warpage			<1%
Transport Height			900±40mm
Transport Direction			Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed			Max 1500mm/s（Programmable）
Board Location PCB The positioning	Support System		Magnetic Pin/Up-down table adjusted/support block
	Clamping System		Side clamping,vacuum Nozzle
Printer Head			Two independent motorised printhead
Squeegee Speed			6~200mm/sec
Squeegee Pressure			0~15kg
Squeegee Angel			60°/55°/45°
Squeegee Type			Stainless steel（standard）,plastic
Stencil Separation Speed			0.1~20mm/sec （Programmable）
Cleaning System			Dry 、Wet、Vacuum （Programmable）
Table Adjustment Ranges			X:±10mm;Y:±10mm;θ:±2°
Machine
Repeate Position Accuracy			±0.01mm
Printing Accuracy			±0.025mm
Cycle Time			<7s（Exclude Printing & Cleaning）
Product Changeover			<5Min
Air Required			4.5~6kg/cm2
Power Input			AC:220±10%,50/60HZ1F3KW
Control Method			PC Control
Machine Dimensions			1220（L）×1355（W）×1500（H）mm
Machine Weight			Approx:1000kg

Keywords:

SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer, 600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.
