  • In-Circuit Tester TRI ICT TR5001E

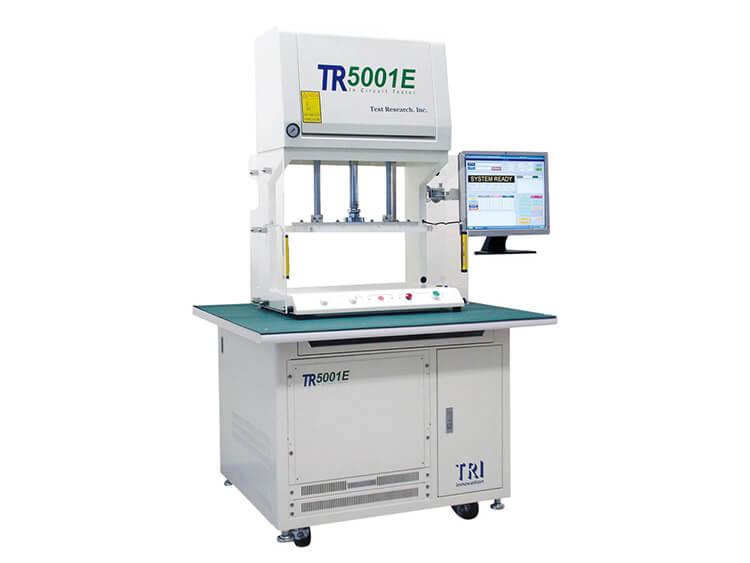

In-Circuit Tester TRI ICT TR5001E

In-Circuit Tester TRI ICT TR5001E

  • max PCB: 420 x 300 mm
  • Weight: 300 kg
  • Dimension: 1000 x 900 x 1680 mm
  • Product description: In-Circuit Tester TRI ICT TR5001E, max PCB: 420 x 300 mm, Weight: 300 kg, Dimension: 1000 x 900 x 1680 mm
  • INQUIRY

In-Circuit Tester TRI ICT TR5001E

Product Specification


In-Circuit Tester TRI ICT TR5001E

Fitted with a dual-stage press unit for reduced fixture cost, this ICT is designed as an expandable platform for testing PCBAs. The TR5001E provides an economical, customizable solution that can fully meet testing requirements of most customers. TR5001E incorporates MDA with selectable ICT and Functional test capabilities that cut production line staff

• Modular upgrade options from MDA to ICT and functional test
• High fault coverage test solution
• Limited access solution and functional test expansion using PXI modules
• Friendly UI with fast and easy program development

Tester Specifications

Analog/hybrid test points

3200 analog or maximum digital test points: 1600

Operating System

Microsoft® Windows compatible PC, Windows 7-10

Fixture Type

Offline press type fixture

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement, frequency

Component R/L/C measurement

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Arbitrary Waveform Generator

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A

Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

On-board Flash, EEPROM, MAC programming

Yield Management System

YMS 4.0

Board Handling

Max PCB Size

Standard: 420 x 300 mm

Option: 500 x 350 mm or larger

Dimensions

WxDxH

1000 x 900 x 1680 mm

Weight

300 kg
