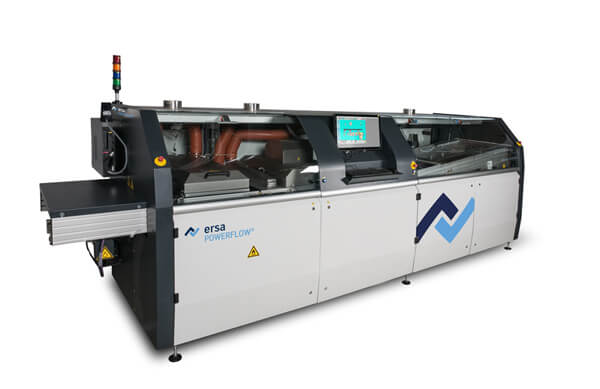

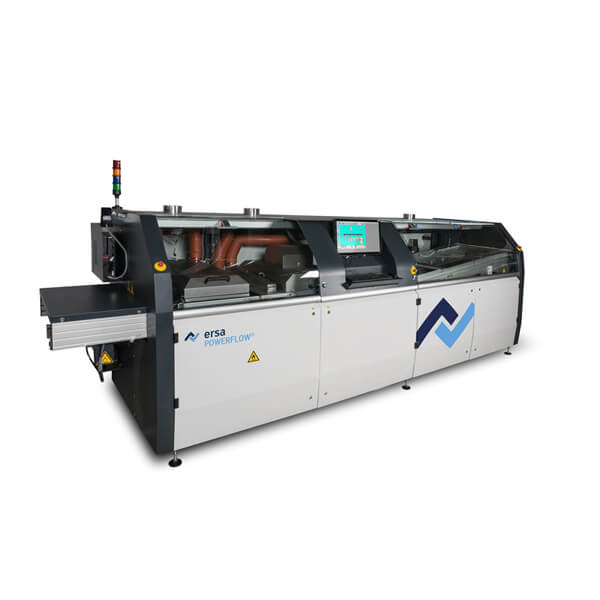

  • ERSA POWERFLOW Wave Soldeing Machine
ERSA POWERFLOW Wave Soldeing Machine

ERSA POWERFLOW Wave Soldeing Machine

  • PCB width : 508 mm
  • Solder volume: 820 kg
  • Solder temperature: max. 300 °C
  • Weight: 2,200 bis 3,000 kg
  • Product description: ERSA POWERFLOW Wave Soldeing Machine, PCB width : 508 mm, Solder volume: 820 kg, Solder temperature: max. 300 °C, eight: 2,200 bis 3,000 kg
  • INQUIRY

ERSA POWERFLOW Wave Soldeing Machine

Products description



ERSA POWERFLOW Wave Soldeing Machine


ERSA POWERFLOW Wave Soldeing Machine

With the POWERFLOW system supplier Ersa presents a high-performance wave soldering system with flexible soldering bath technology at attractive value-for-money. Technologically, the system is state of the art and includes process-relevant components made in Germany as motors, control units, nozzles

final assembly takes place in the Chinese production site shenzhen.


Dimensions
Length from 4,200 to 4,950 mm
Width 1,510 mm
Height 1,565 mm
Weight: 2,200 bis 3,000 kg
Conveyor systems
Finger conveyor
Maximum conveyor speed 2.5 m/min
Maximum working width upt o 508 mm
Maximum PCB top side clearanceup to 120 mm

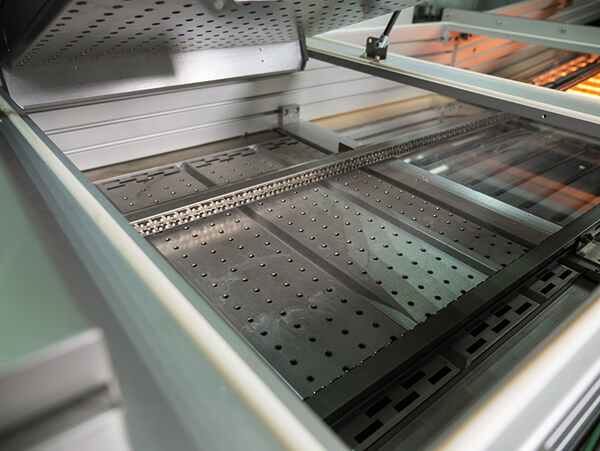

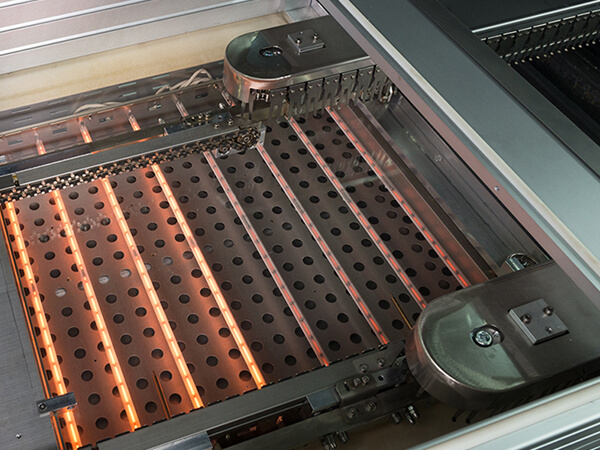

Preaheat module bottom-side
Dynamic short-wave emitter - max. 10.4 kW (power controlled)
Medium-wave emitter, max. 6 kW (controlled)
Convection module, max. 6 kW (controlled)
Dimensions: 600 mm length each
Soldering module
Capacity: ca. 9.8 kW
Solder volume: approx. 820 kg lead-free alloy
Solder temperature: max. 300 °C
