China SMT wave soldering machine factory Supplier Manufacturer N350

Weight: 1100KG
Dimensions: 3300(L)*1400(W)*1560(H)
spray fashion: SMC+ST 6 nozzle
Heating zone Length: 1600mm
Product description: China SMT wave soldering machine factory Supplier Manufacturer, Weight: 1100KG, Dimensions: 3300(L)*1400(W)*1560(H), spray fashion: SMC+ST 6 nozzle, Heating zone Length: 1600mm
INQUIRY

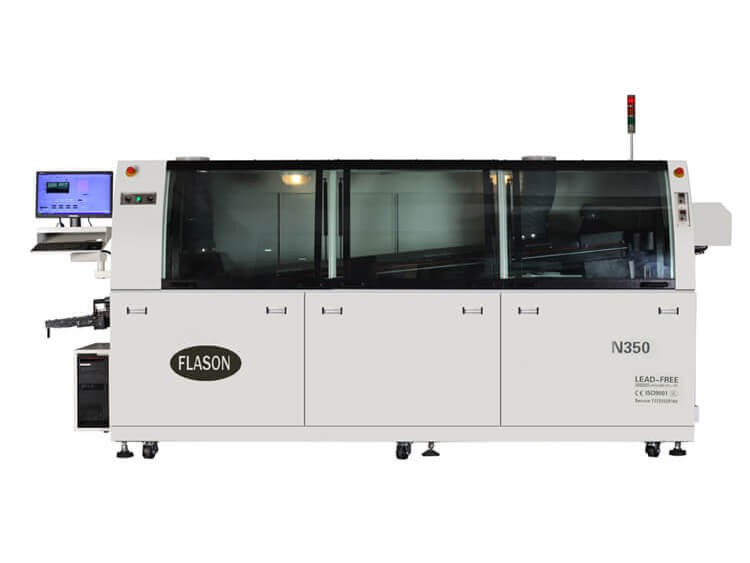

China SMT wave soldering machine factory Supplier Manufacturer N350

Introduction:

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray Nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

Model No.	Flason N350
Number of pre-heaters	3
Pre-heater passage	1600mm
Body size	3300(L)1400(W)1560(H)
Outside dimension	4100(L)1400(W)1560(H)
Weight	1100KG
Total/steady consumption	24KW/6-8KW
Air supply	0.5MPa
Preheating style	Hot air
Preheater consumption	220V 8KW
Control method	PC +PLC
Range of temp. set-point	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder application	Lead-free
Solder pot capacity	320KG
Solder pot temperature	300ºC
Solder pot consumption	380V 12KW
Solder temp. control method	PID&SSR
Wave motor consumption	1KW 220V
Solder melting	About 120mins for setting 250ºC
PCB width	50-350mm
Conveyor speed	300-2000mm/min
Conveyor direction	L-R (R-L optional)
Conveyor inclination	4-7 º
Flux pressure/capacity	3-5 bar/6.5L

Keywords:

Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
