Cheap semi auto Samsung SM321 SMT Assembly line

SMT Assembly line
PCB Assembly line
SMT production line
PCB production line
Product description: Cheap semi auto Samsung SM321 SMT Assembly line, Samsung SM321 speed is 21000CPH, Suitable for LED light, LED strip, Consumer products like mouse, Keyboard and other home electronic proudcts productio
INQUIRY

Cheap semi auto Samsung SM321 SMT Assembly line

Products description:

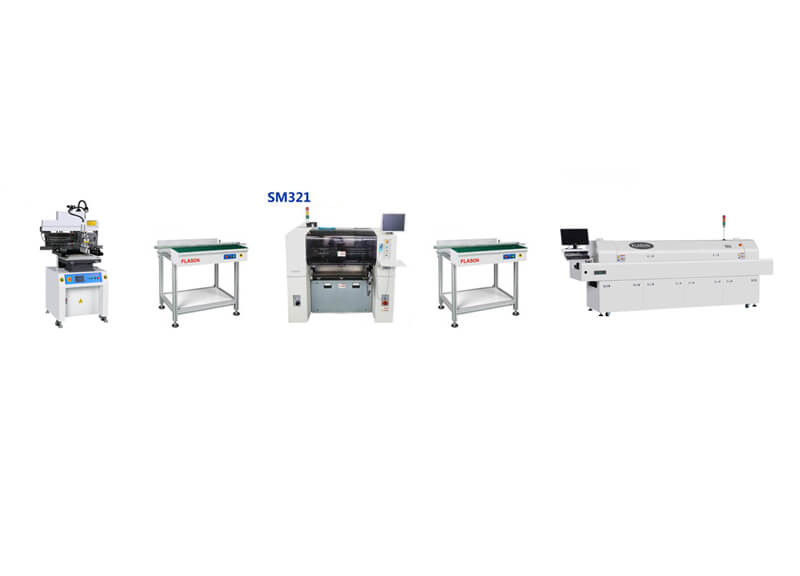

Cheap semi auto Samsung SM321 SMT Assembly line, Samsung SM321 speed is 21000CPH, Suitable for LED light, LED strip, Consumer products like mouse, Keyboard and other home electronic proudcts production. Whole production line cost around 20000USD, Suitable for start up SMT LED PCB assembly business. Contact us and we will offer you a suitable semi auto SMT assembly line solutions for start up SMT factory.

Specifications of each Machine:

1.Samsung SM321 Chip Mounter,As a ten years old pick and place machine, Samsung SM321 still working fine with good quality, very nice price and it is suitable for start up low cost SMT solutions..

Chip theoretical speed of 21,000CPH
Mounting range 0402mm Chip to 55mm
Placement accuracy plus or minus 0.03mm
PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Equipment size L1,650 * D1,680 * H1,530
Power 4.7KVA
Equipment weight 1800kg
Maximum height H 15mm (fixed vision)
Narrow Pitch Mounting 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of Feeders Max.120EA
PCB size (mm)
(L * W * T) Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions L1,650 * D1,680 * H1,530
Weight (KG) 1,800kg
Energy consumption 3phase
AC200 / 208/220/240/380/415
4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption 5KG / cm2 260NI / min

Samsung SMT SM321S using Windows XP operating system, the best production speed of 52,000 CPH, Dual-arm Y-axis dual-servo drive system, arms a total of 16 placement head, high-speed flight image recognition system, Components to adapt to: 0402mm Chip to12mm, placement accuracy: ± 50μm, non-stop refueling, For the new SM feeding system, LED display feeder status, dual transmission system, can be put 84 8mm feeders, With front and back for the operation of the LCD display, automatic mouth change device.

2.8 zones Reflow oven,it's enough for LED production, if you need double side PCB production use a Chain conveyor is OK. and second hand price is quite good and it's suitable for start up low cost SMT solutions..

Model	Flason A8
Heating System	Number of heating zones	Top 8/Bottom 8
	Heating passage	2800MM
	Heating style	Top: hot air; bottom: IR
	Cooling Style	Force air
Conveyor System	Max. Width of PCB	350mm
	Mesh belt width	400mm
	Conveyor Direction	L→R(or R→L)
	Process Height	880±20mm
	Conveyor type	Mesh
	Conveyor speed	0-1000mm/min
	Fixed Track	Front track fixed(option: rear track fixed)
Control system	Power supply	5 line 3 phase 380V 50/60Hz
	Total consumption	38kw
	Startup consumption	34kw
	Steady consumption	4KW
	Ramp Up time	About 20 mins
	Temp. set-point range	Room temperature-300℃
	Temp. control method	PID close loop control & SSR driving
	Temp. control precision	±1℃
	Temp. deviation on PCB	±2℃
	Data storage	Process Data and status storage(80GB)(machine with PC)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temp. (Overtemp/low temp.)
	Board dropped alarm	Tower light: Amber-warning, Green-normal, Red-abnormal
General	Dimension(LWH)	4200×700×1320mm
	Weight	800KG
	Color	Computer grey

3.Semi Automatic SMT stencil printer, it's good for small and middle size PCB printing, Even long LED strip PCB also can use this semi auto smt printer to do printing, new machine is not expensive, around 3000USD, second hand is more cheap is suitable for start up low cost SMT solutions.

Main Features of SMT Stencil Printer Machine:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch- screen life.

10.Printing speed display, can be adjusted.

Specifications	SMT Stencil Printer Machine
Working area	300400-300400mm(300600mm,3001200mm)
Frame size	370470mm,420520mm,550650mm,1500650mm
PCB thickness	0.2-4.0mm
Voltage	Single phase 220V,50/60Hz,100W
Accuracy	+/- 0.05mm
Machine size	L1750W1100Hl650mm
Gross weight	450kg

Keywords:

SMT Assembly line, PCB Assembly line, LED Production line, Automatic SMT Assembly line, Semi Automatic SMT Assembly line, JUKI SMT Assembly Line, Samsung SMT Assembly Line, Hanwha SMT Assembly Line, Panasonic SMT Assembly Line, FUJI SMT Assembly Line, Yamaha SMT Assembly Line.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com
