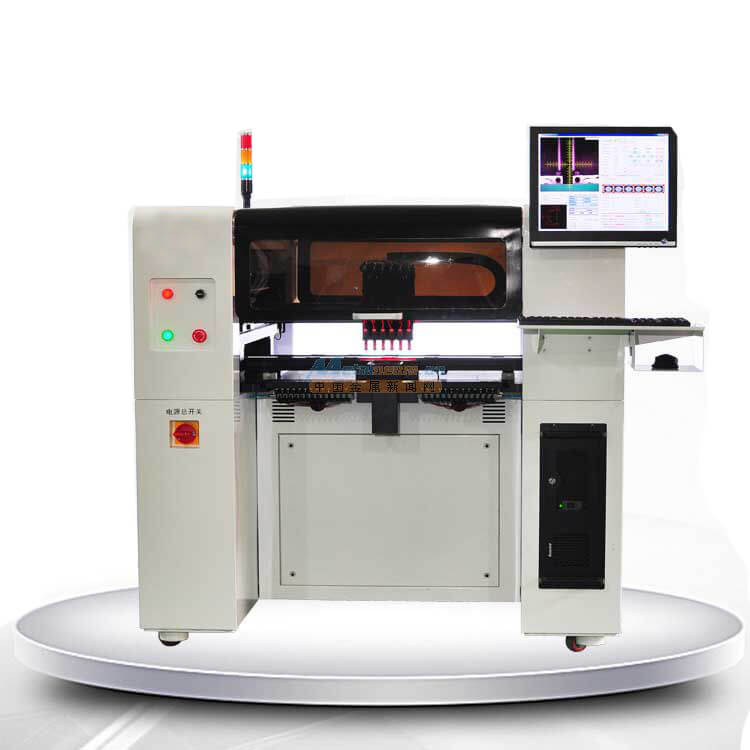

6 Head Pick And Place Machine HW06

Description:

6 Head Pick And Place Machine HW06

【Technical Parameters】

○Number of Feeders：64pieces

○Number of mounting head：6head

○Number of pallets：6pieces

○Average power：500W

○positioning accuracy：0.01mm○Nozzle buffer range：4.5mm

○Power Supply：220V, 50Hz

○Compressed air: 0.5-0.6Mpa

○Drive motor: Panasonic servo motor /HW-QiGn stepper motor

○Identification mode: six head synchronous identification

○Suction nozzle vacuum source：High speed on-off vacuum generator with vacuum destruction

○Maximum board area：625×455mm

○XY maximum range of motion：629×679mm○Z axis maximum range：20mm○Belt feeder: 8, 12, 16, 24mm and vibration feeder (can be attached to the chip)

○Maximum theory speed: 15000 Pcs/ hours

○LED, resistance capacitance actual patch speed: 12000 Pcs/ hours

○Hybrid visual mount average patch speed 8500Pcs/ hours

○XYZ drive rail: TBI high precision heavy duty linear guide rail.

○Motion drive system: Panasonic AC servo -A6 driver○Operating system: Based on the Windows operating system, China JAGUAR record company independent research and development automatic placement machine operating system, support Windows XP, win7 operating system

○Component angle: 0-360 degrees at any angle, the movement of synchronous rotation○X/Y mode of operation: QiGn-2017 version of intelligent curve acceleration and deceleration linkage system

○MARK point positioning: automatic scanning (can be arbitrarily set MARK points)

○Intelligent alarm: automatic correction, Automatic patch, lack of material alarm

○Into the plate mode: single segment from left to right transmission, can be connected to the automatic connection platform system, automatic PCB transmission positioning. Thimble positioning, manual release plate.

○Visual display: 17 inch industrial control display ratio 4:3 resolution 1280x1024

○Programming mode: peer to Peer programming, visual programming, PCB file import, etc.

○Optimization mode: three automatic optimization modes (including V2017 intelligent optimization)

○To identify the number of cameras: a Mark recognition camera, six high speed identification camera, a high resolution precision recognition camera

○Applicable scope:adapt 0402, 0603, 0805, 1206, two tubes, transistors, SOT, and 40*40mm in the range of pin spacing is greater than or equal to 0.3mm (0.5mm from the QFP BGA pin center), etc..

○Product weight：500KG

○Size (length and width): 1450*1370*1350mm (without display and keyboard)
