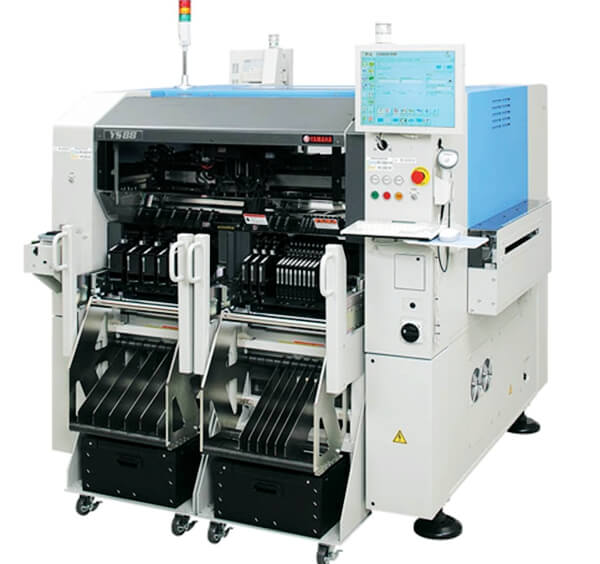

Yamaha ys88 Pick and Place Machine

Yamaha ys88 Pick and Place Machine
components heights up to 25.5mm
Accuracy:+/-30μm QFP mounting
Speed:8,400CPH
Product description: Yamaha ys88 Pick and Place Machine, components heights up to 25.5mm, Accuracy:+/-30μm QFP mounting, Speed:8,400CPH
INQUIRY

Yamaha YS88 Pick and Place Machine

Description:

By holding up to 119 feeding positions, the YS88 offers the ultimate in changeover flexibility.
Handles a super-wide range of components from 0402 chips to W45xL100mm or less components and with long connectors
Handles components with heights up to 25.5mm
Simplified pressing force control from 10 to 30N
+/-30μm QFP mounting absolute accuracy and
+/-20μm QFP repeatability in full time operation
8,400CPH(0.43sec/CHIP Equivalent : optimum condition)mounting capacity
Applicable to large size PCB(L510mm x W460mm)

The standard YS88 comes with many software and hardware features that improve product quality, increase production efficiency and reduce maintenance, including:
It is varied by the combination layout together with sATS / dYTF etc.
For information on "2 stages push-up spec.", please consult us separately.
A preliminary arrangement is necessary when a side-view camera is installed.
When handling long connectors and large sized components, about the eccentric offset values and the rotation angle, please consult us separately.
22.5mm or less when the side-view camera is installed.
This dimension does not include the projection.

Main benefits

Intelligent electrical Feeders
Z-Servo controlled placement heads for accurate stress-free component mounting
Automatic board width and thickness adjustment for fast changeover
Automatic Nozzle cleaning station
Automatic temperature feedback compensates for temperature variations
Fiducial recovery function that eliminates the need to remove and clean the PCB
Feeder indicators that simplify setup and reduce feeder setup
Double board support system that decreases board transfer time
Force control
Tape cutting
