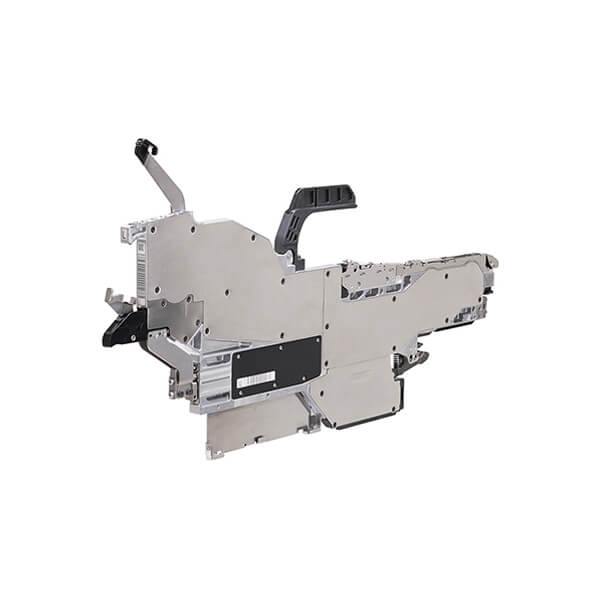

Yamaha YSM20W ALF Feeder
Specifications:
Yamaha YSM20W ALF feeder
Revolutionizes feeding tape components by eliminating reliance on user skill.
Any operator to easily supply tape components by merely inserting the tape, all without stopping the machine.
Yamaha’s unique center-open system, which eliminates the need to remove the top tape, reduces pick-up errors due to static peeling charge and fuzz.
Yamaha-exclusive tape setting mechanism that extends towards the operator to simplify tape setting and a mechanism that allows for two reels to be set at once on the feeder greatly improves ease of use for the operator.
|
ALF |
Compatible tape |
Width 8mm, Maximum thickness 1mm |
Applicable reel specifications |
"Feed pitch setting 2mm/4mm |
8mm-converted installation occupied width |
12mm pitch |
Loadable minimum tape length |
400mm or more |
Applicable components |
1005 to 3216 |
Feeder type |
4 types S (1005)/M (1608)/L (2012)/LL (3216) |
Tape loading time |
Approx. 5 sec |
Compatible mounter |
YS/YSM series with tape cutter |
External dimension (excluding projections) |
L 549 x W 11.5 x H 278mm |
Weight |
Approx. 1.50kg |
KLJ-MC200-000 YAMAHA ZS Feeder 12mm
KLJ-MC300-000 YAMAHA ZS Feeder 16mm
KLJ-MC400-000 YAMAHA ZS Feeder 24mm
KLJ-MC500-000 YAMAHA ZS Feeder 32mm
KLJ-MC600-000 YAMAHA ZS Feeder 44mm
KLJ-MC700-000 YAMAHA ZS Feeder 56mm
KLJ-MC800-000 YAMAHA ZS Feeder 72mm
KLJ-MC900-000 YAMAHA ZS Feeder 88mm KHJ-MC100-000 YAMAHA SS Feeder 8mm
KHJ-MC200-000 YAMAHA SS Feeder 12mm
KHJ-MC300-000 YAMAHA SS Feeder 16mm
KHJ-MC400-000 YAMAHA SS Feeder 24mm
KHJ-MC500-000 YAMAHA SS Feeder 32mm
KHJ-MC600-000 YAMAHA SS Feeder 44mm
KHJ-MC700-000 YAMAHA SS Feeder 56mm
KHJ-MC800-000 YAMAHA SS Feeder 72mm
KHJ-MC900-000 YAMAHA SS Feeder 88mm
KHJ-MC100-003 SS 4mm
KHJ-MC100-001 SS 8mm
KHJ-MC100-002 SS 8mm
KHJ-MC100-003 SS 8mm
KHJ-MC100-004 SS 8mm
KHJ-MC100-005 SS 8mm
KHJ-MC100-006 SS 8mm
KHJ-MC200-002 SS 12/16 mm
KHJ-MC400-002 SS 24mm
KHJ-MC500-001 SS 32mm
KHJ-MC600-001 SS 44mm
KHJ-MC700-001 SS 56mm
KHJ-MC800-001 SS 72mm
KHJ-MC900-001 SS 88mm
KHJ-MC800-001 SS 72mm
KHJ-MC900-001 SS 88mm
TAPE GUIDE ASSY (..KW1-M1140-00X)
STOPPER PIN (..K87-M111F-100)
SPROCKET ASS'Y (..KW1-M1120-000)
SPRING (..KW1-M119P-000)
SPRING (..KW1-M119K-000)
SPRING (..KW1-M111E-001)
SCREW FLAT HEAD (..K87-M111P-000)
if there is no product that you need,please contact me directly.
