  • YAMAHA YV180 Pick and Place Machine

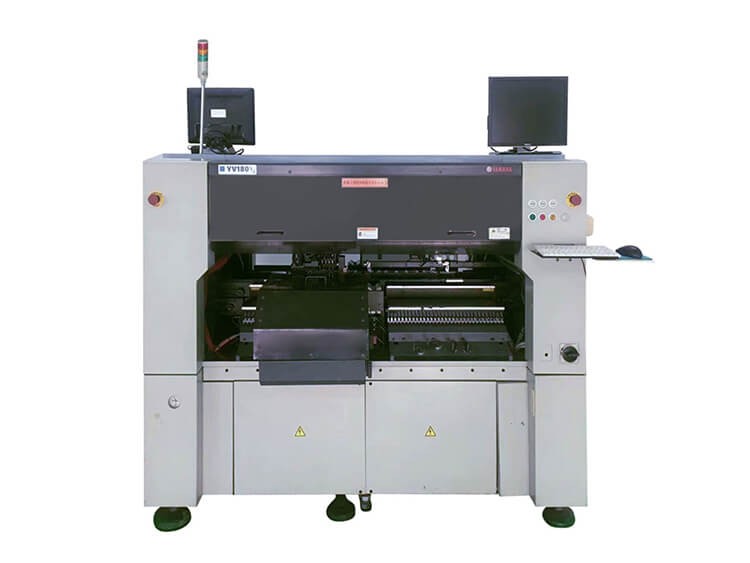

YAMAHA YV180 Pick and Place Machine

YAMAHA YV180 Pick and Place Machine

  • Patch speed 30,600CPH
  • SMD components can be put 96 kinds
  • weight: 2080KG
  • Dimension: L1960XW1630X1450
  • Product description: YAMAHA YV180 Pick and Place Machine, Patch speed 30,600CPH, SMD components can be put 96 kinds, weight: 2080KG, Dimension: L1960XW1630X1450
  • INQUIRY

YAMAHA YV180 Pick and Place Machine

Products description



Model: yv180x
New and old: 8 into a new.
Machine age: yv180x, 20feeder, 2004
The main working parameters:
Power supply voltage: 380 (V)
Patch speed: 0.11 seconds / CHIP
0.16s / pcs, 0402/0603 / sop, QFP139029 ... Japan YAMAHA Y180X placement machine:
SMD PCB size: L330XW330MM_L50XW50MM
Chip components: 0603 (MM) -31MMX31MM
SMD components can be put 96 kinds (8MM)
Mounter size: L1960XW1630X1450
Mounter weight: 2080KG
Mounter YAMAHA YV180xg
Substrate inch method L330 × W330mm (Max) / L50 × W50mm (Min)
L380 × W330mm (Max) / L50 × W50mm (Min)
Accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP Mounting Speed 0.095sec / CHIP 【Optimal Condition】
1608CHIP: 30,600CPH (0.118 seconds / CHIP conversion) [IPC9850 conditions: M distinction]
Mounting Area 0603 ~ □ 31mm Parts, SOP / SOJ, QFP, Connector, PLCC, CSP / BGA (※ 1)
※ □ 25mm ~ □ 31mm parts are available, the shaft can be equipped with spin-off possible.
FNC ヘ ッ ド: Before moving into the substrate above the allowable high さ 4mm or less, carrying parts may be high さ 6.5mm
Standard ヘ ッ ド: move into the substrate above the allowable high さ 6.5mm or less, carrying parts may be high さ 6.5mm
Dimensions inch method L1,960 × W1,630 × H2,000mm
The body mass is about 2,080kg

Keywords:


SMT Pick and Place Machine, Chip Mounter, SMT Mounter, PCB Mounter, SMT Surface Mounter, Chip Shooter. China pick and place machine, JUKI Pick and Place Machine, Pick and place machine Manufacturer, FUJI Pick and Place Machine, Siemens Pick and Place Machine, Samsung Pick and Place Machine, Panasonic Pick and Place Machine, Hitachi Pick and Place Machine, I Pulse Pick and Place Machine.

Flason Electronic Co, Ltd provide a full SMT Assembly Line solutions, including SMT reflow ovenWave Soldering MachinePick and Place Machinesolder paste printerPCB loaderPCB unloaderSMT AOI MachineSMT SPI MachineSMT X-Ray machineSMT assembly line equipment, smt spare parts etc, any kind SMT machines you may need, please contact us by: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]




FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$100,000 !
C. Best price & Best shipping & Best service !
