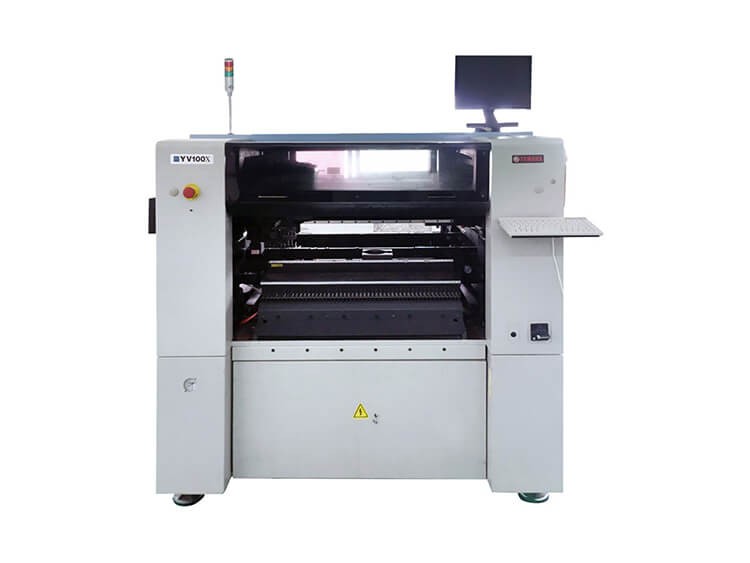

YAMAHA YV100X Pick and Place Machine

Description:

YAMAHA YV100X Pick and Place Machine

SMT (surface mount technology) component placement systems, commonly called pick-and-place

machines or P&P Machine, Yamaha YV100-x is robotic machines which are used to place

surface-mount devices (SMDs) onto a printed circuit board (PCB). They are used for high speed,

high precision placing of broad range of electronic components, like capacitors, resistors,

integrated circuits onto the PCBs which are in turn used in computers,

consumer electronics as well as industrial, medical, automotive,

military and telecommunications equipment.

Yamaha YV100X is a mid-speed multi-function placement machine to adapt to medium-speed

small-sized components and high-precision mounting of shaped components, using the latest

Yamaha latest closed-loop technology, dual drive technology. Used Yamaha YV100X placement

machine factory period 1999-2004 years; YV100XE general year: 2004-2006, DOS operating

system, a working head, 8 Nozzles, 2 high-resolution multi-vision digital camera, Optional with

YAMAHA patented flight for the first move, from 0201 (British) micro-components to 32mm

chip SMD components, including IC.QFP.SOT.SOP.SOJ.PLCC.BGA. Heterosexual components

such as connectors can be mounted . Mechanical structure is simple, a casting frame made to

ensure durability and stability, the circuit control department is not complicated, easy maintenance.

Menu is relatively simple, easy to operate, can be easily modified stickers 1.2 m long LED light board.

Theory of 18000 points per hour. The actual production speed of about 9000 points per hour,

suitable for small and medium batch production and with high-speed placement machine.
