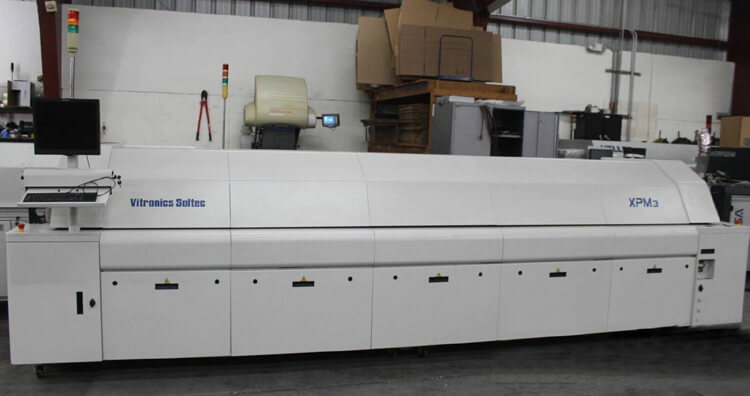

Vitronics Soltec XPM3-1030 Reflow Oven

Max. Width of PCB 450mm
Heating zones: 10
Heating method: Hot Air
Conveyor speed 0-2000mm/min
Product description: Vitronics Soltec XPM3-1030 Reflow Oven Edge/Mesh belt, 10 zone, Dimension(L*W*H) 5200×1400×1550mm Weight 2200KG Max. Width of PCB 450mm Conveyor speed 0-2000mm/min
INQUIRY

Vitronics Soltec XPM3-1030 Reflow Oven

Introduction:

Characters:

1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.

5. Effective heating zone length with uniform heat distribution.

6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.

7. PLC and PID closed loop control to achieve high precision temperature control.

8. Standard 8 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.

9. The rail track is dealt with hardening process to make it more reliable.

10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.

11. Computerized controlled rail chain lubrication structure.

12. Powerful software system can save all settings and data printout capability.

13. Flux removal unit meet with environmental protection requirement.

14. Nitrogen structure is an option.

Specification:

Heating System	Number of heating zones	Top 10/Bottom 10
	Number of cooling zones	2
	Heating passage	3600mm
	Heating style	Hot air
	Cooling style	Air Oven: Forced air; Nitrogen Oven: Water Chiller
	Exhaust Volume	10m³/min * 2 vanes
Conveyor System	Max. Width of PCB	450mm
	Mesh belt width	500mm
	Conveyor Direction	L-R(or R-L)
	Process height	900±20mm
	Conveyor type	Mesh and chain
	Range of rail width	0-450mm
	Conveyor speed	0-2000mm/min
	Auto/manual Lubrication	standard
	Fixed track	Front rail fixed(option: rear rail fixed)
	Product clearance	Top and bottom 25mm
Control system	Power supply	5 cables 3 phase 380V 50/60Hz
	Total consumption	40kw
	Startup consumption	38kw
	Steady consumption	8KW
	Ramp up time	About 20 mins
	Temp. set-point range	Room temperature-300℃
	Temp. control method	PID close loop control & SSR driving
	Temp. control precision	±1℃
	Temp. deviation on PCB	±2℃
	Data storage	Process Data and status storage(80GB)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temp. (over-temp/low temp.)
	Board dropped alarm	Light Tower: Amber-warming, Green-normal, Red-abnormal
General	Dimension(LWH)	5200×1400×1550mm
	Weight	2200KG
	Color	Computer grey
