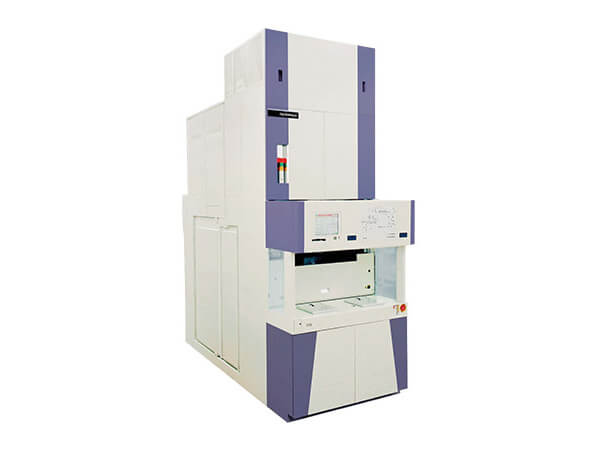

Tokyo Electron Tel batch furnace TELFORMULA

Wafer size (mm) 300
Cassette stocker -10
Process temp RT-1100C
Additional features, Option N2/LL Gas cleaning
Product description: Tokyo Electron Tel batch furnace TELFORMULA, Wafer size (mm) 300, Cassette stocker -10, Process temp RT-1100C, Additional features, Option N2/LL Gas cleaning
INQUIRY

Tokyo Electron Tel batch furnace TELFORMULA

TELFORMULA is the semiconductor industry’s most advanced iso-thermal minibatch platform. TELFORMULA™ incorporates a number of innovative technologies specifically developed to address the industry’s need for a 300mm high speed batch platform capable of delivering short TAT (Turn Around Time) both suitable for product development and simultaneously capable of meeting demanding, high-volume production requirements. The short TAT is achieved by the convergence of multiple new core technologies, such as a metal-free fast ramping heater, low thermal mass chamber, rapid gas volume purge/displacement and a high speed wafer handling unit. The all quartz reactor concept provides the ideal processing environment for attaining the ultimate level of cleanness which is maintained by in-situ chamber dry gas cleaning reducing maintenance downtime and related costs. TELFORMULA™ is the ideal platform for a wide variety of semiconductor processes including LPCVD Si (Poly, a-Si), Si₃N₄, SiO₂, ALD High-k, ATM/LP Oxidation, Oxynitridation, etc.

Item	TELINDY PLUS	TELFORMULA	TELINDY	ALPHA-8S
Wafer size (mm)	300	300	300	150,200
Availability	New, Certified used	Certified used	Certified used	Certified used
Production load max	-125	-50	-125	-150
Cassette stocker	-18	-10	-16	-21
Process	Thermal ALD, LPCVD, Oxididation/Anneal	Oxide, Anneal, Nitride, Poly, TEOS, High-k	Oxide, Anneal, Nitride, Poly, TEOS, HTO, High-k	Oxide, Anneal, Nitride, Poly, TEOS, HTO
Reactor	Thermal	Thermal	Thermal/Plasma	Thermal
Reactor	Thermal	Thermal	Thermal/Plasma	Thermal
Process temp	RT-1100C	RT-1000C	RT-1100C	RT-1250C
Additional features, Option	N₂/LL Gas cleaning	N₂/LL Gas cleaning	N₂/LL Gas cleaning Advance platform	N₂/LL, Gas cleaning: CIF3 for poly
