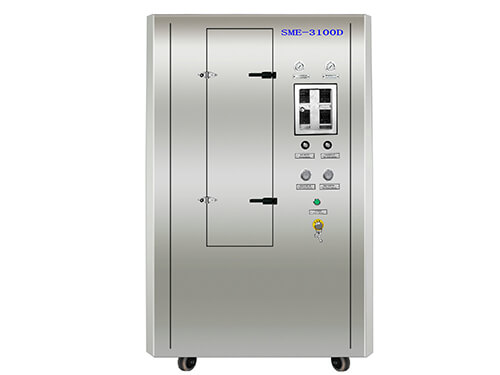

SMT Screen Cleaning Machine SME-3100D

SMT Screen Cleaning Machine SME-3100D

  • Maximum screen size 1200 x 1200 x 40 mm
  • SMT Screen Cleaning Machine SME-3100D
  • Cleaning time 3~5min
  • Drying time 3~5min
  • Product description: SMT Screen Cleaning Machine SME-3100D,Maximum screen size 1200 x 1200 x 40 mm,Cleaning time 3~5min,Drying time 3~5min
  • INQUIRY

SMT Screen Cleaning Machine SME-3100D

Products description



Machine Introduction:
SME-3120D is designed to improve the cleaning efficiency while cleaning two screens of the special screen cleaning machine. Mainly used in relatively easy to clean the ink and mesh larger screen cleaning. The machine uses compressed air as the driving force, 360 ° rotation spray cleaning and rinsing way, effectively cleaning the printing plate after the residual ink to ensure that the screen screen plate and mesh cleaning; SME-3120D corresponding to the screen size of 1200x1200mm.
Machine Introduction:
1.the use of special stencil placement, while cleaning 2 stencils to improve cleaning efficiency.
2.for easy to clean the PCB ink or other ink screen.
3.the full use of compressed air as energy, do not use electricity, no explosion, fire and other potential security risks.
4.the overall use of stainless steel body, anti-acid corrosion, durable, beautiful appearance.
5.a key operation, cleaning, rinsing, drying automatically set by the set time.
6.cleaning, rinsing can be used separately with different solutions, more suitable for complex cleaning requirements.
7.multi-level precision filtration system, the solution recirculation.
8.equipped with automatic liquid, drainage system.
9.since the row of exhaust, connecting the factory pipeline, eliminating the screen cleaning shop odor, to protect the working environment, in line with environmental requirements.
10.reduce the printing defects by 10%, significantly improve the printing quality, reduce rework probability.
11.to improve the screen cleaning workshop environment, reduce the solvent volatile odor, to protect the health of workers.
12.cleaning solvent cycle repeated use, reduce cleaning costs, reduce the direct discharge of solvent pollution.

Machine Specifications:

project

SME-3120D specifications

Maximum screen size

1200 x 1200 x 40 mm (Lx W x H) x 2 sheets

Tank capacity

50L

Cleaning time

3~5min

Rinse time

1~2min

Drying time

3~5min

Air consumption

800~1000L/min

Gas source

0.5~0.7Mpa

Outlet size

Φ124 × H30 (mm)

filtering system

1mm / 100um / 1um three filters

Cleaning method

Spray cleaning + spray rinse + high pressure gas drying

Machine size

L1300 x W1550 x H 2050(mm)

Machine weight

500KG


Keywords:

SMT Peripheral Equipment, PCB loader, PCB unloader, PCB conveyor, PCB cleaner, Nozzle cleaner, PCB destacker loader, Reflow Oven thermal profiler, PCB NG/OK machine, DIP insert line, Solder paste mixer, SMT Stencil Cleaning machine.

KAIT provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price !; Best shipping !; Best service !
