  • Hanwha SM481 PLUS Chip Mounter

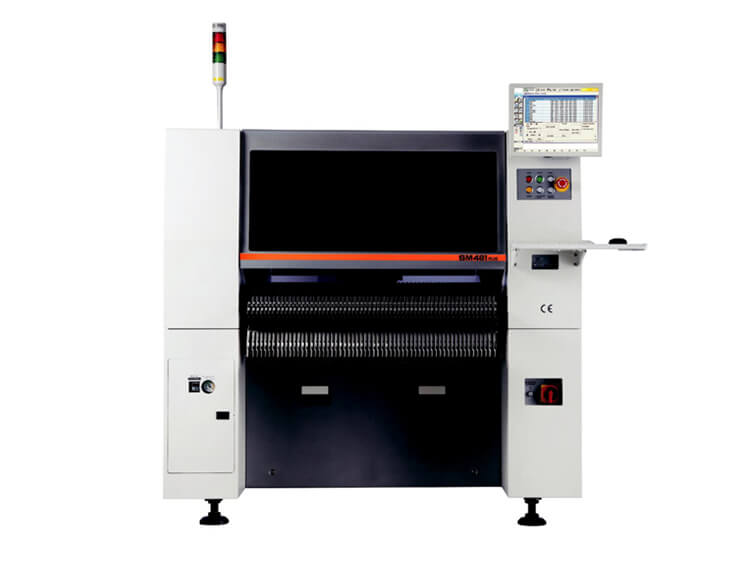

Hanwha SM481 PLUS Chip Mounter

Hanwha SM481 PLUS Chip Mounter

  • Components: 0402 ~ 42mm(H 15mm)
  • Max PCB:Max. 460(L) x400(W)(Standard)
  • Weight: 1400KG
  • Speed:40,000CPH
  • Product description: Hanwha SM481 PLUS Chip Mounter-Components: 0402 ~ 42mm(H 15mm),Max PCB:Max. 460(L) x400(W)(Standard), Speed:40,000CPH, Weight: 1400KG
  • INQUIRY

Hanwha SM481 PLUS Chip Mounter

Introduction



Hanwha SM481 PLUS Chip Mounter

SM481 Plus pick and place machine realizes the highest-speed placement of the TECHWIN patented identification method of the medium-speed machine, namely the on the Fly identification method, which can achieve 40,000CPH of Chip components and unit mounting time of QFP components of 1.1 seconds (each is Optimum ) High-speed placement. The One-Gantry structure uses a 10Nozzle high-speed keyboard head, which can be operated with the least manpower using one side of the device. It can support 1,500mm long board, and it has the strongest PCB correspondence ability in SM series.


Model Name
SM471plus
SM481plus
SM482plus
Alignment
Flying Vision
Flying Vision+stage vision
Flying Vision+stage vision
Spindles
10 Spindles ×2 Gantry
10 Spindles ×1 Gantry
6 Spindles ×1 Gantry
Placement Speed
78,000CPH(Optimum)
40,000CPH(Optimum)
30,000CPH(Optimum)
Placement Accuracy
±50μm#μ±3σ
±30μm#μ±3σ
±30μm#μ±3σ
Applicable Parts

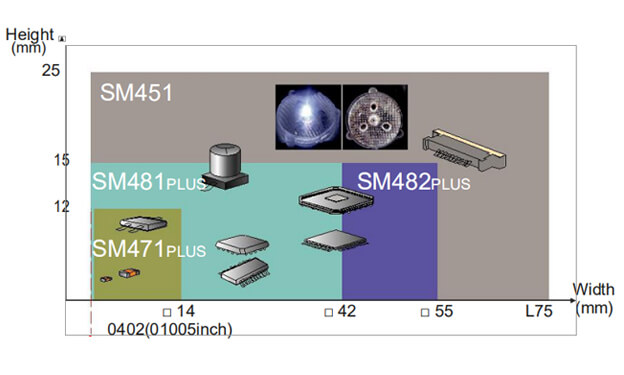

0402 ~  14mm(H 12mm)
0402 ~  42mm(H 15mm)
0402 ~  55mm(H 15mm)
Applicable PCB
Max. 510(L) x 460(W)(Standard)
Max. 460(L) x400(W)(Standard)
Max. 460(L) x400(W)(Standard)
Max. 610(L) x 460(W)(Option)
Max. 1500(L) x 460(W)(Option)
Max. 1200(L) x 510(W)(Option)
Dimension(L.D.H)
1650×1690×1458
1650×1680×1530
1650×1680×1458


Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com
