  • Hanwha SM481 PLUS Pick and Place Machine

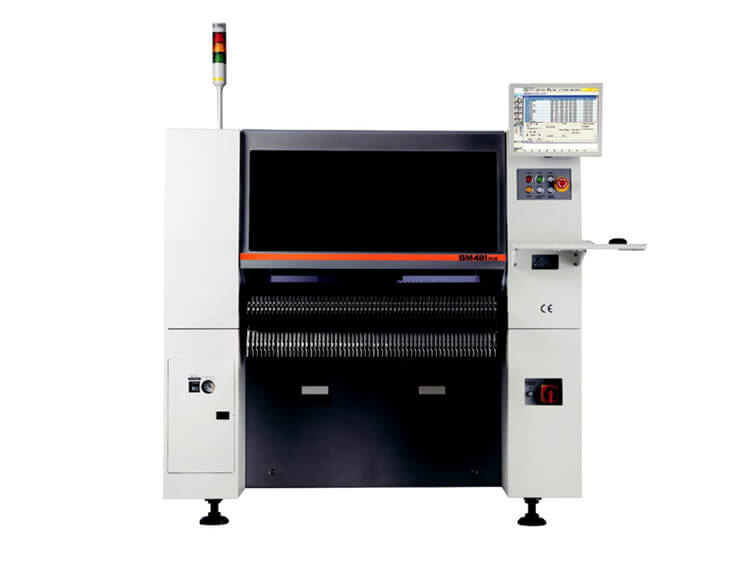

Hanwha SM481 PLUS Pick and Place Machine

Hanwha SM481 PLUS Pick and Place Machine

  • Speed 40,000 CPH
  • PCB : Max. 460(L) x400(W)
  • Weight: 1400KG
  • Component available: 0402 ~ 14mm(H 12mm)
  • Product description: Hanwha SM481 PLUS Pick and Place Machine, Speed 40,000 CPH, PCB : Max. 460(L) x400(W), Weight: 1400KG, Component available: 0402 ~ 14mm(H 12mm)
  • INQUIRY

Hanwha SM481 PLUS Pick and Place Machine

Introduction



Hanwha SM481 PLUS Pick and Place Machine

As Hanwha SMT Pick and Place Machine that applies two gantries equipped with 10 spindles per head as well as new flying vision, the Hanwha SMT Pick and Place Machine realizes a chip mounting speed of 40,000 CPH, the highest in the world among chip shooters of the same class. In addition, it is applicable to 0402 chips to the largest 16mm ICs by default and increases actual productivity and placement quality by applying an electrically driven high speed and high precision Feeder. Moreover, it is designed for mixed use with the SM pneumatically driven feeder to maximize the customers’ operational convenience.

Main Features of Hanwha SMT Pick and Place Machine

1,Realizes a Super-high Speed Placement Speed of 40,000 CPH
Realizes the Highest Placement Speed Among Chip Shooters of the Same Class by Adopting a New Flying Head Mechanism Equipped With 10 Spindles.
2,Electrically Driven High Speed and High Precision Feeder
Electrically Driven SM Feeder
Allows integrated use of 0603/2P/4P Equipped with a function to automatically align the pickup position between feeders to improve the simultaneous pickup rate. Able to set various part supply speeds to improve the stability of part supply.
40,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable Parts : 0402 ~ 14mm(H 12mm)
Applicable PCB : Max. 460(L) x400(W)(Standard)
Max.510(L) x 460(W)(Option)
Electrically Driven High Speed and High Precision Feeder
Allows mixed use with an SM pneumatically driven feeder
SMART Feeder

The world’s first feeder equipped with Auto Splicing and Auto Loading functions

Specifications

Hanwha SMT pick and place machine

Model Name

SM471plus

SM481plus

SM482plus

Alignment

Flying Vision

Flying Vision+stage vision

Flying Vision+stage vision

Spindles

10 Spindles × 2 Gantries

10 Spindles × 1 Gantry

6 Spindles × 1 Gantry

Placement Speed

78,000CPH(Optimum)

40,000CPH(Optimum)

30,000CPH(Optimum)

Placement Accuracy

±40μm@μ±3σ

±40μm@μ±3σ

±40μm@μ±3σ

Applicable Parts

0402 ~ 14mm(H 12mm)

0402 ~ 42mm(H 15mm)

0402 ~ 55mm(H 15mm)

Applicable PCB(L × W)

Max. 510 × 460(Standard)

Max. 460 × 400(Standard)

Max. 460 × 400(Standard)

Max. 610 × 460(Option)

Max. 1500 × 460(Option)

Max. 1200 × 510(Option)

Dimension(L.D.H)

1650×1690×1458

1650×1680×1530

1650×1680×1458

Mass(Kg)

Approx. 1820

Approx. 1655

Approx. 1600
