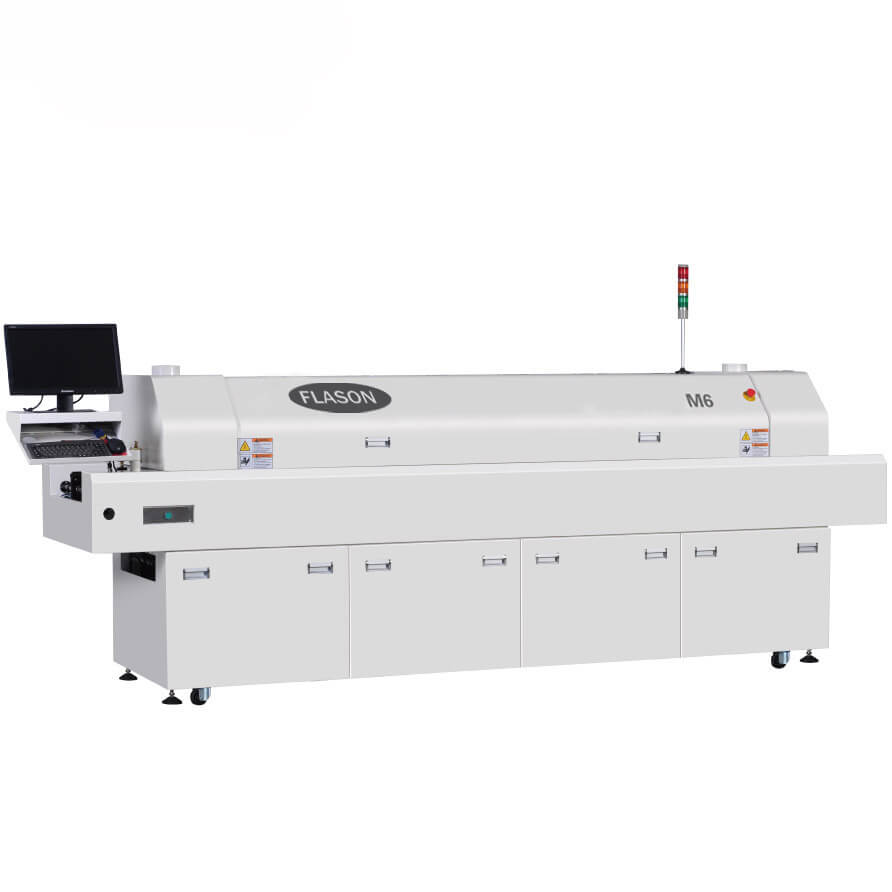

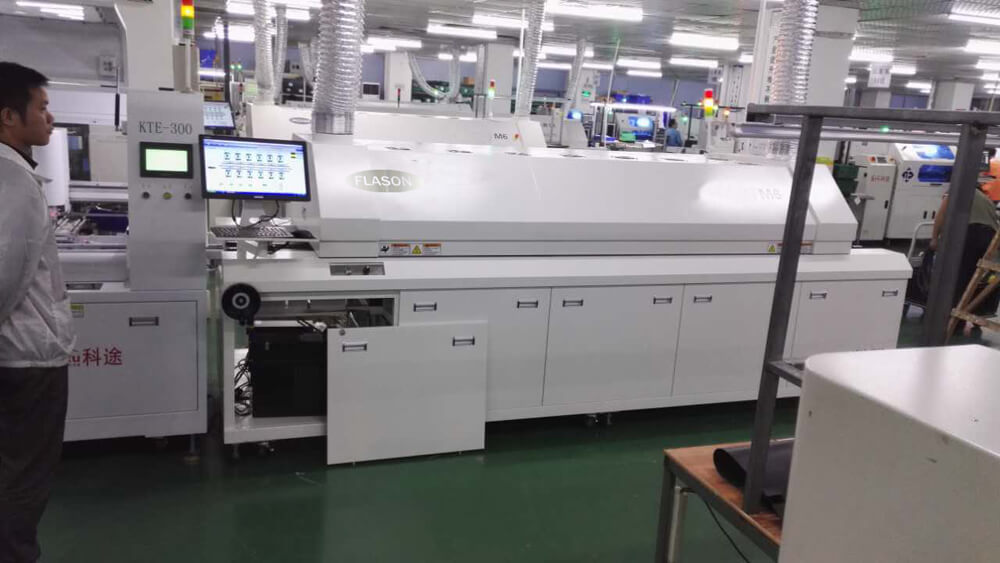

lead free reflow oven M6

Max. Width of PCB 350mm
Heating zones: 6
Heating method: Hot Air
Conveyor speed 0-1500mm/min
Product description: lead free reflow oven for solar street light M6 Dimension(L*W*H) 3600×1000×1490mm Weight 700KG Max. Width of PCB 350mm Conveyor speed 0-1500mm/min
INQUIRY

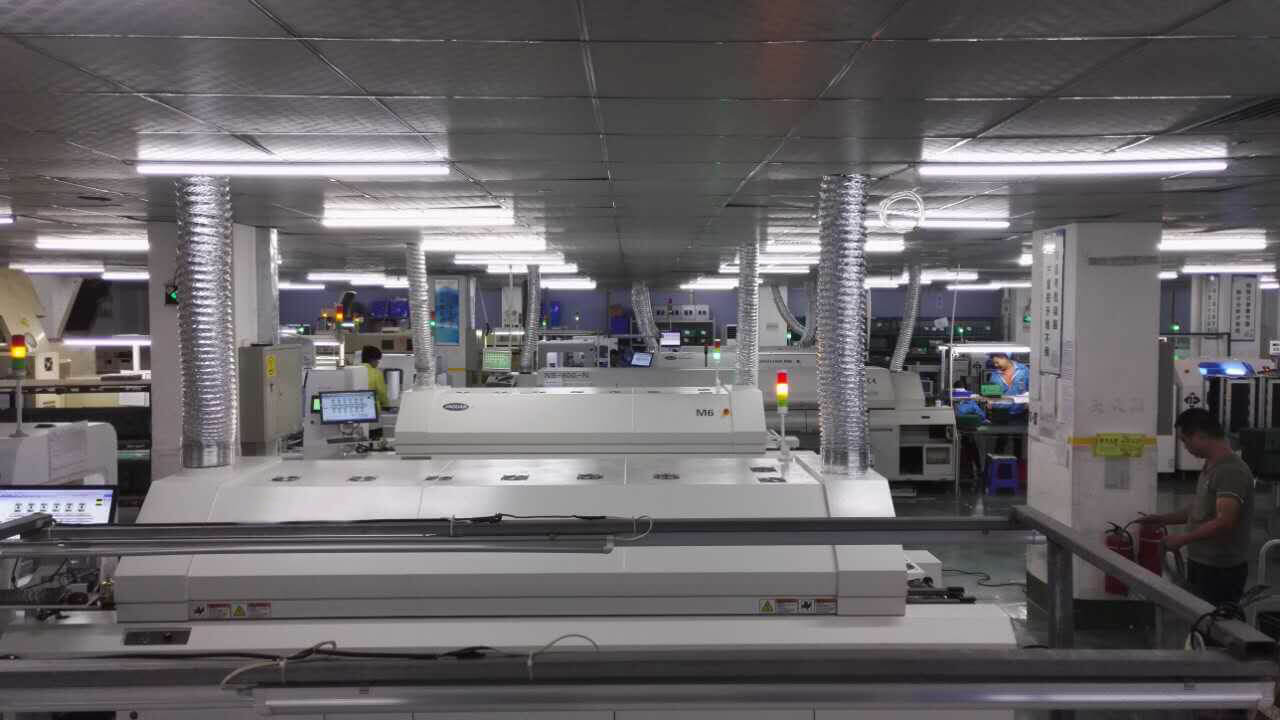

SMT Assembly line lead free reflow oven for solar street light M6

Introduction:

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector enhance temperature ramp up speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component uniformly heated and eliminate the "shadow effect" efficiently.

2.Using special high temperature resistant protection material in heating preservation structure and cast iron in heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, critical design for no noise or vibration and convenient for maintenance .

4. Heating zones are structured with porous aluminum air director, hot air is uniformly distributed to the PCB surface. Hood can open completely so as to easily proceed maintenance.

No.2 Stable and reliable conveyor system

1. The conveyor driving system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running extremely stable, speed range can varies between 0-1500mm/min.

2. Independent roller structure support and mesh belt running smooth and the speed precision is up to ±20 mm/min .

3. Mesh belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy logic and PID closed loop control system. It can quick response to the changes in heating condition and ensure efficient heat compensation to achieve required temperature.

2. Using thermocouple imported from Taiwan to every heating zone, it can rapid feedback changes in each temperature zone, real-time monitoring to maintain the temperature in each zone.

3 .Special SSR solid state relay matched with dedicated heat dissipating block prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of environmental temperature and calorific value, applying the heating device by minimum pulse, ensuring the high precision of the temperature control & uniform temperature within zones. The zone length, flow direction, temperature distribution, all these are meet with IPC standards.

4. Powerful heating elements, heat up fast, it’s only need approx. 20 minutes from room temperature to set-point temperature.

5 .Failure diagnosis, visual & audio alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent hard-wares from any thermal damaged.

Specification:

Model	Flason M6
Heating System	Number of heating zones	Top 6/Bottom 6
	Heating passage	2500MM
	Heating style	hot air
	Cooling style	Force air
Conveyor System	Max. Width of PCB	350mm
	Mesh belt width	400mm
	Conveyor Direction	L-R(or R-L)
	Process Height	880±20mm
	Conveyor type	Mesh and chain
	Range of rail width	0-300mm
	Conveyor speed	0-1500mm/min
	Auto/manual Lubrication	standard
	Hood opening	Manual(option: auto)
	Fixed track	Front track fixed(option: rear rail fixed)
	Product clearance	Top and bottom 25mm
Control system	Power supply	5line 3phase 380V 50/60Hz
	Total power consumption	28kw
	Startup consumption	28kw
	Steady consumption	4KW
	Ramp up time	About 20 mins
	Temp. setting range	Room temperature-300℃
	Temp. control method	PLC & PC
	Temp. control precision	±1℃
	Temp. deviation on PCB	±2℃
	Data storage	Process Data and status storage(80GB)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temperature. (Overtemp/low temp.)
	Board dropped alarm	Tower light: Amber-warming, Green-normal, Red-abnormal
General	Dimension(LWH)	3600×1000×1490mm
	Weight	700KG
	Color	Computer gray
