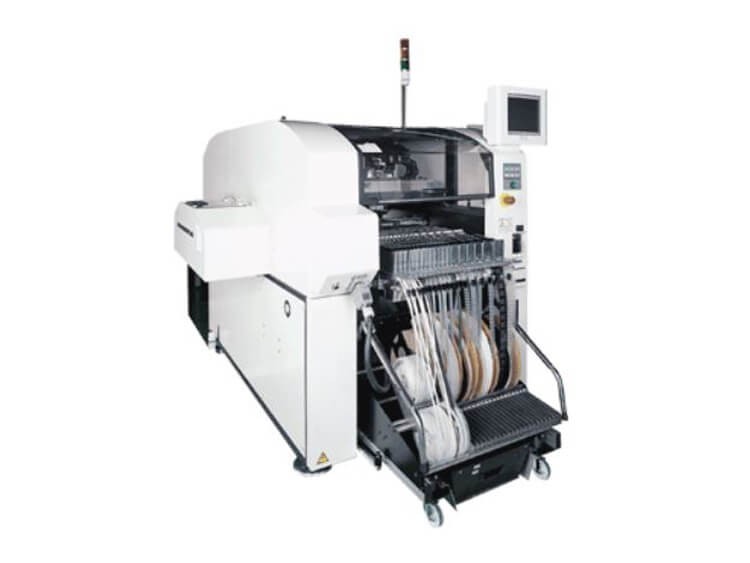

Panasonic DT401-F Pick and Place Machine

Description:

Panasonic DT401-F Pick and Place Machine

Panasonic DT401-F multi-function placement machine price |

The Panasonic DT401 is a direct tray modular, multi-functional placement machine that's designed to give users the flexibility to place a large number of varied, odd-shaped components at high speeds. Direct placement head pickup allows for the wide component range, while tray Feeder replenishment and a feeder collective-exchange cart delivers improved operation rates.

Can handle parts ranging from microchips to large parts such as BGAs, CSPs and connectors

The DT401 handles a broad spectrum of components including 0402 chips, BGAs, CSPs, connectors and other large components up to 100 mm X 90 mm @ 25mm thickness. To ensure such flexibility, the machine supports five kinds of tape feeders, equipped with variable feed pitch capabilities. The DT401 uses the same feeder table and feeders as our CM402, which results in cost-savings, reduction in feeder inventory, greater flexibility and interchangeability.

Load control head supplied as standard
The series of three load control heads yields a maximum load of 50 N which enables almost all insertion connectors to be mounted.
Features & Benefits
Direct pickup along with on-the-fly component replenishment and changeover allows high-speed production
Supports twin and single tray feeders
8 mm double tape feeders, as well as 12/16, 24/32, 44/56 and 72 mm tape feeders
Interchangeable platform
Handles up to 510 mm L x 460 mm W boards

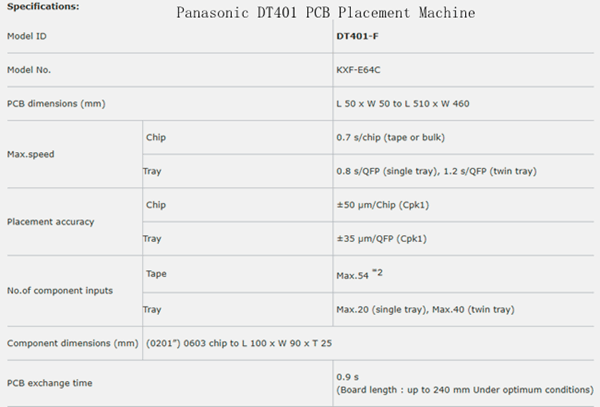

Panasonic DT401-F multi-function placement machine Model Specifications

To achieve a wide range of components corresponding to the ability and high-precision placement
Corresponding to the direct adsorption tray modular multi-function placement machine

Panasonic multi-function placement machine DT401 Features:
1, direct adsorption tray feeder and rack a switch car, improve the rate of Jia moving.
Using direct suction adsorption
The transfer head is directly attached to the pallet components, allowing for high-speed placement of various weird shapes.

Feeding the tray
