PCBA CLEANING MACHINE 5600

Product Introduce:

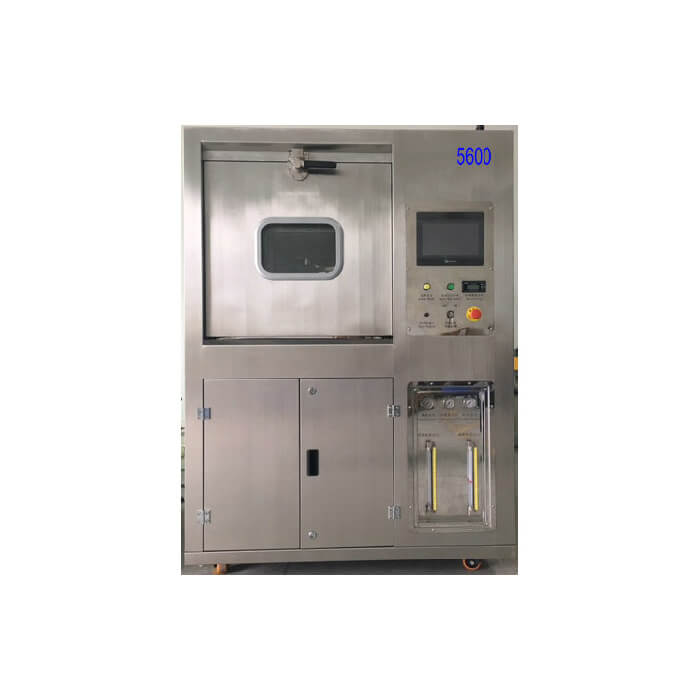

PCBA CLEANING MACHINE 5600

FLASON-5600 off-line automatic PCBA washing machine is an energy-saving environmental protection, bulk cleaning integrated high-end cleaning machine, can automatically complete the cleaning, rinsing, drying function.
Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other high-end products such as high-end products, small and medium-sized PCBA board cleaning, can effectively clean the SMT / THT PCBA welding surface residual rosin flux, water-soluble flux , No-clean flux / solder paste and other organic and inorganic pollutants

Features:

1, the whole process of visualization: the cleaning room with a visual window, cleaning room with lighting, cleaning process at a glance
2, automatic cleaning mode: in a cleaning room with a spray to complete the cleaning, rinsing, drying full cleaning process volume occupied area is small, compact structure;
3, the most scientific Nozzle design: the use of left and right incremental distribution --- to enhance cleaning efficiency,The upper and lower dislocation distribution - completely solve the cleaning blind area;
4, the nozzle pressure adjustable design: to solve the small size of the PCBA in the high pressure spray under the conditions of the collision, splash problem;
5, the standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;
6, a comprehensive cleaning system: for SMT; THT PCBA after welding the surface of the residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants for thorough and effective cleaning;

7, convenient cleaning agent to add: can be manually added, but also by setting the ratio (5% to 25%) automatically with DI water and chemical solution;
8, dedicated spray tank and auxiliary heating system: spray bath is cleaning and rinsing process to be stored in the work of the cleaning plate to the tank. Cleaning process, the solvent from the dilution tank into the spray tank and continuous heating, pressurized by the high-pressure pump spray from the spray, followed by the use of circular filtration; rinse process, the spray tank is stored in deionized water, and then Pressurized by the high-pressure pump from the nozzle after the rinse water can be heated as needed;
9, lower operating costs: built-in filter device can be used to achieve the use of solvent, reducing the amount of solvent, at the end of the use of compressed air blowing method: recovery of the pipeline and the pump residual liquid, can effectively save 50%
10, the concentration compensation: dilution of the liquid after repeated use of reduced concentration, affecting the cleaning effect and cleaning efficiency, but not dirty enough, waste and waste, concentration compensation can improve the effective use of liquid, add the amount of adjustable.

Specifications:

1. Cleaning room rotation axis: the cleaning chamber to change the structure and material, turn off the industry before the PCBA washing machine rotary shaft easy to wear a common problem, every 6 to 12 months to replace the defect, the new rotary shaft mechanism without replacement.
2. Cleaning room, middle and lower spray bar pressure monitoring: cleaning room, the middle and the next three spray bar pressure display and monitoring, can be independently adjusted, corresponding to the majority of customer pressure control before the improvement requirements. Cleaning basket up and down 2 layers can be placed different PCBA, adjustable spray bar pressure to correspond. When the 2-layer cleaning basket is only placed on a layer of PCBA cleaning, you can also close one of the spray bar.
3. Software improvement: more powerful, especially the machine alarm and error failure instructions that allow customers to use the process can be based on instructions to troubleshoot.
4. Shape and size: Optimize the appearance of the machine and the key arrangement, more beautiful. Smaller footprint, less space: 1300x1200x1850mm (LxWxH).
5. Electrical configuration: According to the domestic manufacturers and export requirements matching:
All the electrical components used: Mitsubishi, Schneider, CKD, Omron and other well-known brands.
