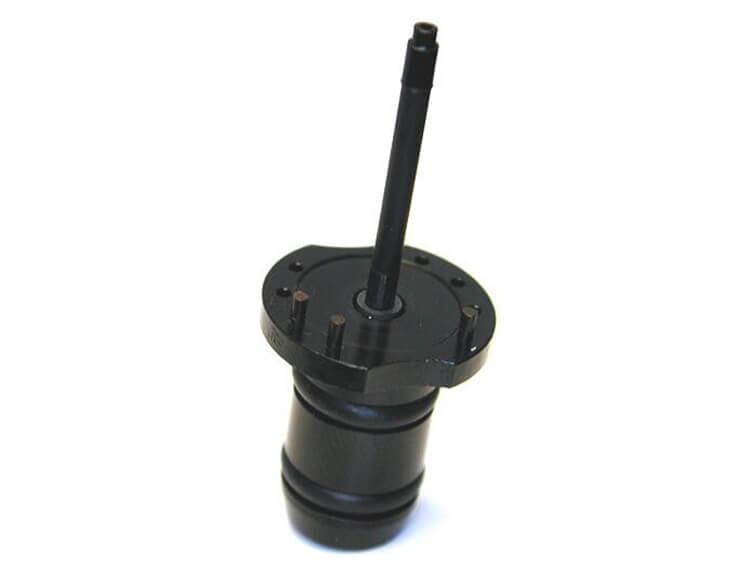

Mydata Midas C24 GRIPPER Nozzle WITH 0-4.5MM JAWS L-012-0115

Specifications:

Mydata Midas C24 GRIPPER NOZZLE WITH 0-4.5MM JAWS L-012-0115

MTP-A12-1  TIP, TAPERED, .8 ID, BLACK
MTP-A12-2  D-012-0263D4  TIP, STEPPED, .8 ID, BLACK
MTP-A12-3  TIP, TAPERED, .8 ID, WHITE
MTP-A12-4  TIP, STEPPED, .8 ID, WHITE
MTP-A13-1  D-012-1162  TIP, TAPERED, 1.2 ID, BLACK
MTP-A13-2  TIP, TAPERED, 1.2 ID, WHITE
MTP-A14-1  D-012-0408B  TIP, 2.0 ID, BLACK
MTP-A14-2  TIP, 2.0 ID, WHITE
MTP-A14-3  2009-0605  TIP, 2.0 ID, BLACK W/3mm O-RING (more information)
MTP-C14-1  L-012-0823  TIP, TAPERED, SMALL HOLE (.25mm), BLACK
MTP-C14-2  TIP, TAPERED, LARGE HOLE (.5mm), BLACK
MTP-C14-3  TIP, STEPPED, LARGE HOLE (.5mm), BLACK
MTP-C14-4  TIP,TAPERED, SMALL HOLE (.25mm), WHITE
MTP-C14-5  TIP, TAPERED, LARGE HOLE (.5mm), WHITE
MTP-C14-6  TIP, STEPPED, LARGE HOLE (.5mm), WHITE
MTP-C14-S1  TIP, LONG REACH (.5mmOD X .25mmID), STAINLESS
MTP-C14-S2  TIP, LONG REACH (.8mmOD X .35mmID), STAINLESS
MTP-A24  L-012-0542  TIP, JUKI STYLE
M-H01  HYDRA H01 NOZZLE
M-H02  HYDRA H02 NOZZLE
M-H03  HYDRA H03 NOZZLE
MTP-H04  L-012-0576  MICRO-MECHANICS R-730 TIPS FOR H04 TOOLS
M-HS1  HYDRA SPECIAL HO3 NOZZLE FOR LEDs
M-H05  HYDRA H05 NOZZLE COMING SOON
M-H06  HYDRA H06 NOZZLE
MyData Tools
MTL-A12-N  L-012-0011E  A-12 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER
MTL-A13-N  L-012-0012F  A-13 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER
MTL-A14-N  L-012-0109C  A-14 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER
MTL-C14-N  L-012-0802  C-14 TOOL, NEW, SPRING LOADED W/EXTRA SLIDER
MTL-R1  TOOL, REBUILT W/EXTRA SLIDER
MTL-R2  TOOL, REBUILT, SOLID W/MM 12U3or12C3 ADAPTER and 2 TIPS *
MTL-R3  TOOL, REBUILT, SPRING LOADED W/MM SLIDER and 2 TIPS *
MSL-N1  SLIDER, NEW W/TIP (for use with black aluminum tools)
MSL-N2  SLIDER, BLACK (for use with stainless tools)
MSL-N3  SLIDER, WHITE (for use with stainless tools)
MSL-N4  SLIDER, NEW W/MM 12U3 ADAPTER and 2 TIPS *
MSL-N5  SLIDER, NEW W/MM 12C3 ADAPTER AND 2 TIPS *
MSL-R  SLIDER, REPAIRED
* 12U3 TIP SIZES--1.5mm, 2.0mm, 2.25mm, 3.0mm, 4.0mm, 5.0mm.--PLEASE SPECIFY
* 12C3 TIP SIZES--6.0mm, 7.0mm, 8.0mm --PLEASE SPECIFY
Nozzle bodies sent to us for rebuilding are fitted for our custom slider. These sliders can be replaced in the field in less than two minutes. This feature allows you to replace damaged sliders at a fraction of the cost of a new spring loaded tool. This feature allows you to do maintenance and cleaning of the tubes with minimal machine downtime.
