  • MPM UP-2000 Solder Paste Printer

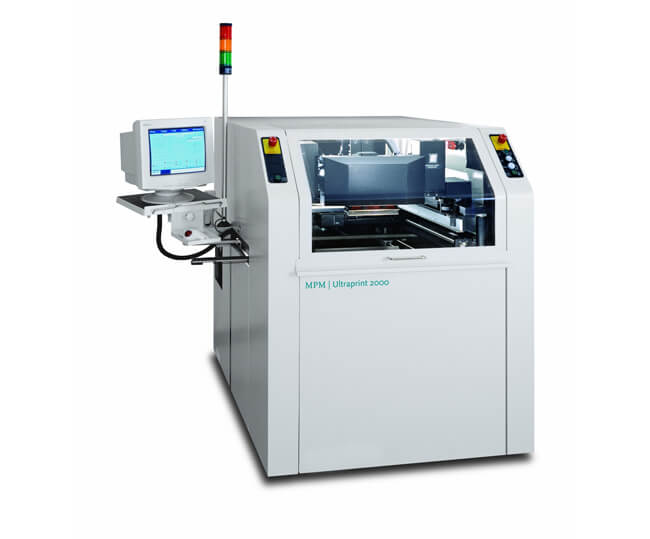

MPM UP-2000 Solder Paste Printer

MPM UP-2000 Solder Paste Printer

  • Frame Size: 29* x 29'' (736.6mm x 736.6mm
  • PCB Size:508mm k 406.4mm
  • Weight:677KG
  • size: 1168.4x1625x1371mm
  • Product description: MPM UP-2000 Solder Paste Printer, Frame Size: 29* x 29'' (736.6mm x 736.6mm, PCB Size:508mm k 406.4mm, Weight:677KG, size: 1168.4x1625x1371mm
  • INQUIRY

MPM UP-2000 Solder Paste Printer

Specifications:

The MPM Ultraprint 2000 series machines are versatile computer-controlled automatic screen printers for use in SMT production. You can use an Ultraprint 2000 printer as a standalone screen printer or interfaced to in-line SMT machines. The Ultraprint 2000 requires minimal machine adjustment to interface to existing in-line SMT production lines.
MPM UP-2000 Screen Printer Features:
Enhanced software features provide storage for up to 200 board parameter files allowing minimal setup time and quick response to varying production runs.
Ultraprint 2000 Series Machine Specifications
Print Area: 2"x 2"(50.8mm x 50,8mm) to 18' x 16";457.2mm x 406.4mm);
20'' x 16" (508mm k 406.4mm)
Board size: 2''x 2'', (50.8mm x 50.8mm) to 20'' x16'' (508mm x 406.4 mm)
Frame Size: 29* x 29'' (736.6mm x 736.6mm)  with adapter system for small frames
Stencil: X. 丫 adjusiment; +-0.5'' (+-12.7mm).
Service: 115V, 220V. 60Hz. 30 amp (220V, 50Hz 20 amp); Air: 80 W 125 PSI 4 cfm
Dimension:
Conveyor Length: 51" (1295,4mm) standard: to 66" (1676.4mm) optional
Machine width: 1168.4mm
Machine depth: 64' (1625.6mm)
Machiiw Height: 54'' plus 7''(1371.6mm plus 177.8mm adjustment)
Shipping weight: 1500lbs(677KG)

Keywords:

SMT stencil printer, SMT solder paste printer, SMT printing machine, Offline Solder paste printer, LED solder paste printer, PCB Solder paste printer, Automatic Solder Paste Printer, Semi Auomatic Solder Paste Printer, GKG SMT stencil printer.

FLASON provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]
