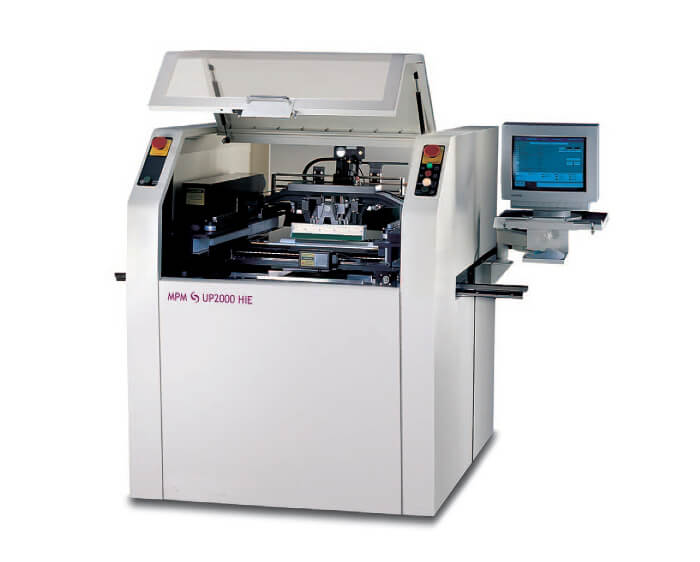

MPM UP-2000 HiE SMT Stencil Printer

Specifications:

The MPM UP-2000 HiE SMT Stencil Printer is built for the most demanding production requirements, offering superior performance and flexibility in a compact, sturdy cost-effective printer. This machine combines a remarkably compact footprint with large board capability, resulting in exceptional productivity per square foot. In addition, the printer is user-friendly and has unlimited flexibility with advanced options, such as closed-loop squeege pressure control, an automatic support pin placement system and full environmental control.

MPM UP-2000 HiE SMT Stencil Printer Features:
Print Area 18" x 16" (457 x 406mm)
User-friendly software maximizes uptime
Alignment Accuracy: +/- 0.001" at 6 sigma, and cycle time of less than 11 seconds
Advanced vision algorithms quickly process fiducials "On-the-Move" for efficient image capture
Self leveling print head allows squeegee pressure, print speed and down stop to be independently adjusted for both front and rear squeegee blades for optimal print quality
MPM UP-2000 HiE SMT Stencil Printer Specification:
Stencil Printing System, 2D Inspection,
Automatic stencil cleaner (viper vacuum)
Automatic paste dispenser
Vacuum tunnel
SPC statistical proccess control
Windows NT
Min. Board Size: 2" x 2" (50.0 mm x 50.0 mm)
Max. Board Size: 20" x 16" (508 mm x 406 mm)
Thickness range: 0.015" to 0.500"
Underside component clearence: 0.50" (1.0" optional)
Machine interface transport speed: programmable up to 60"/sec (1524 mm/sec)
Transport height from floor: Adjustable 34.5" to 41" (876 mm to 1041 mm)
Methode of board hold-down: Underside vacuum, Y-axis snuggers and Z-Grip fingers
Print parameters: 18" x 16" (457 mm x 406 mm);
X,Y Snap off - 0.050" to + 0.1" (-1.3 mm to 2.5 mm)
Squeegee pressure (Balanced Control) 1 to 60 lbs (0.4 kg to 27 kg)
Cycle time: <11 seconds (excluding print stroke)
