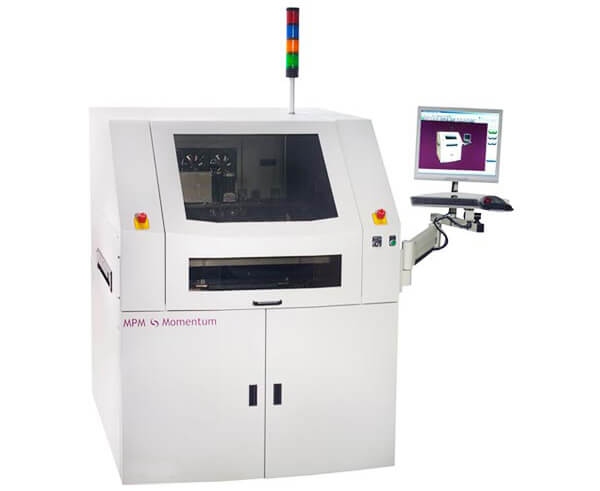

MPM Momentum SMT Stencil Printer

Specifications:

The MPM Momentum SMT Stencil Printer is a fast, precise, highly reliable printer that is simple to learn and easy to use, with performance that is unmatched by any other printer in its class. It’s a cost-effective, fast ROI printing solution with innovative technology and outstanding capability.

MPM Momentum SMT Stencil Printer Features:
Fastest Cycle Time in its Class
The MPM Momentum SMT Stencil Printer is built for efficiency and speed. With its triple track conveyor rails and servo drive motors, for example, the Momentum Elite model provides the greatest throughput capability in the series, making it the ideal printer for high volume, high mix assembly lines.
Proven MPM Momentum SMT Stencil Printer Accuracy and Performance
Wet Print accuracy of 20µm@6s, Cpk = 2, with 6s capability designed in and independently verified. MPM Momentum series printers are fast, precise, and highly reliable, with performance unmatched by any other printer in their class.
Benchmark User Interface
Easy to learn and use for the average operator, Speedline’s Benchmark software is powerful yet intuitive, and facilitates rapid setup, assists with operational tasks, and makes changeover quick and easy.
BOARD  HANDLING
Maximum Board Size (X x Y) 609.6 mm x 508 mm(24” x 20”)
Staging Mode - Momentum Elite 457 mm x 508 mm (18” x 20”)
Minimum Board Size (X  x Y) 50.8 mm x 50.8 mm  (2”  x 2”)
Board Thickness 0.2mm (0.008") to 5.0mm (0.20”), up to 6.0 mm (0.24”) without top clamp foils
Maximum  Board Weight 4.5  kg (9.92 lbs)
Board Edge Clearance 3.0 mm (0.118")
Underside Clearance 12.7 mm (0.5")standard Configurable for 25.4 mm (1.0”)
Board Hold-Down Fixed top clamps, centernest vacuum  Optional Edge Loc
Board Support Methods Magnetic pins Optional Gel-Flex, vacuum pins, support blocks, patented auto-tooling or Grid-Lok
PRINT PARAMETERS
Maximum Print Area (X x Y) 609.6 mm x 508 mm (24"  x 20")
Print Gap (Snap-off) 0 mm to 6.35 mm (0" to 0.25")
Print Speed Up to 305 mm/sec (12.0"/sec)
Print Force 0 to 20 kg (0 lb to 44 lbs)
Stencil Frame Size 737 mm x 737 mm (29" x 29") Adapters available for smaller sizes
VISION
Fiducial Types Standard shape fiducials (see SMEMA standards), pad/aperture
Camera System Single digital camera -MPM patented look up/down vision
PERFORMANCE
Total System Alignment ±12.5 microns Accuracy and Repeatability (±0.0005") at 6 sigma,
Qualification is performed using Production environment process variables; print speed, table lift and camera movement are included in the capability figure.
Wet Print Deposit ±20 microns
Accuracy and Repeatability (±0.0008") at 6 sigma,Cpk of greater than or equal to 2.0*
Based upon actual wet printing with positional accuracy and repeatability verified by a 3rd party measurement system.
Cycle Time Momentum 11 seconds standard
Momentum+ 9 seconds standard
Momentum HiE 7.5 seconds standard
Momentum Elite 6 seconds standard
FACILITIES
Power Requirements 200 to 240 VAC (±10%) single phase @ 50/60Hz, 15 A
Air Supply Requirements 100 psi at 4 cfm (standard run mode) to 18 cfm (vacuum wipe) (6.89 bar @ 1.9 L/s to 8.5L/s),12.7 mm (0.5”) diameter line
Height (excluding light tower) 1638.4 mm (64.5") at 940 mm (37.0”) transport height
Machine Depth 1593.1 mm (62.72")
Machine Width Momentum, Momentum+ & Momentum HiE 1202.7 mm (47.35”)
Momentum Elite 1675.5 mm (65.96”)
Minimum Front Clearance 508 mm (20.0”)
Minimum Rear Clearance 508 mm (20.0”)
Machine Weight Momentum, Momentum+ Momentum HiE 862 kg (1900 lbs)
Momentum Elite 899  kg (1982 lbs)
Crated Weight Momentum, Momentum+ & Momentum HiE 1155.5  kg  (2547 lbs)
Momentum Elite 1192.5  kg  (2629 lbs)
* The higher the Cpk, the lower the variability with respect to the process specification limits. In a process qualified as a 6 sigma process (i.e., one that allows plus or minus 6 standard deviations within the specification limits), the Cpk is greater than or equal to 2.0.
Specification is subject to change without notice. Please consult factory for specifics
