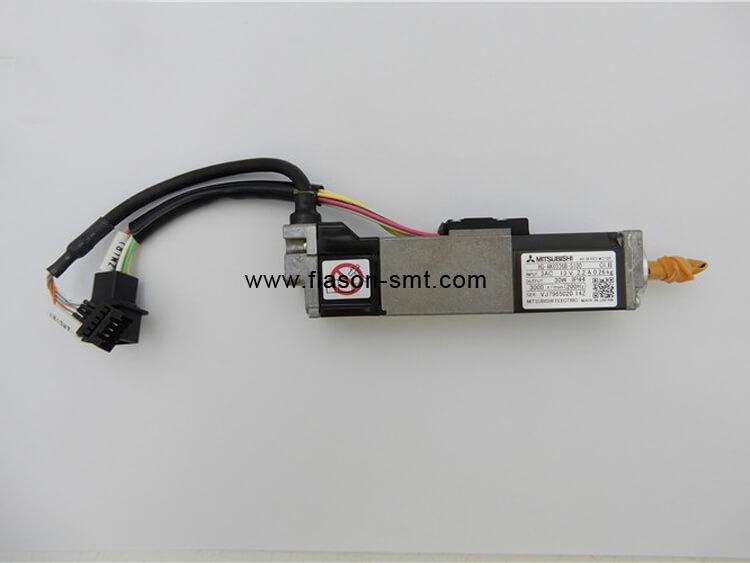

JUKI  RX-7R Z SERVO MOTOR ASSY HG-AK0336B-S100 EZ149223515

Specifications:

JUKI RX-7R Spare part List:

Base frame assy - 1
1 EZ4-455-513-01 PAD (L)
2 EZ4-455-514-01 STAND BOLT
3 EZ4-455-516-01 RING (PAD)
4 EZ4-455-517-01 NUT (M42), TYPE 3
5 EZ4-706-724-31 BOLT (M3X10), HEXAGON SOCKET
6 EZ4-455-515-01 PAD (S)
7 EZ2-659-164-01 EYEBOLT (M20)
8 EZ4-455-490-04 STAND
9 EZ4-455-491-03 MAIN FRAME
10 EZ4-455-492-04 CENTER BLOCK
11 EZ4-707-927-01 PIN (A10X30), PARALLEL
12 EZ4-716-148-05 BOLT (M8X20 SUS), SOCKET
13 EZ4-716-151-05 BOLT (M16X40 SUS), SOCKET
14 EZ1-492-198-11 LED ASSY (INNER LIGHT) LED ASSY
15 EZ1-492-198-21 LED ASSY (INNER LIGHT) LED ASSY
16 EZ1-492-236-14 SCALE ASSY (Y)
17 EZ1-492-236-24 SCALE ASSY (Y)
18 EZ1-855-269-11 MOTOR, LINEAR
19 EZ2-580-593-01 SCREW, +PSW M3X8
20 EZ4-454-730-02 LM GUIDE (SHS20LV2UUC1E) LM
21 EZ4-455-276-01 BRACKET, Y SCALE SENSOR Y
22 EZ4-455-403-11 BRACKET (FR), Y STOPPER Y
23 EZ4-455-404-01 BRACKET (RR), Y STOPPER Y
24 EZ4-455-405-01 STOPPER
25 EZ4-455-407-03 Y STOPPER (FR), HI SPEED HEAD Y
26 EZ4-455-493-01 DIAMOND PIN
27 EZ4-458-991-01 COLLAR (8-6-3), Y AXIS
28 EZ4-705-547-31 PIN, PARALLEL (A4X8)
29 EZ4-720-203-01 PIN, TOOL POSITIONING
30 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6
31 EZ7-683-419-04 BOLT,HEXAGON SOCKET 4X8 6
32 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X8 6
33 EZ7-683-437-04 BOLT,HEXAGON SOCKET 5X14 6
34 EZ7-683-440-04 BOLT,HEXAGON SOCKET 5X20 6
35 EZ7-683-452-04 BOLT,HEXAGON SOCKET 6X10 6
36 EZ7-683-479-04 BOLT,HEXAGON SOCKET 8X50 6
37 EZ7-688-004-11 W 4, MIDDLE W 4, MIDDLE 4
38 EZ7-688-005-11 W 5, MIDDLE W 5, MIDDLE 8
