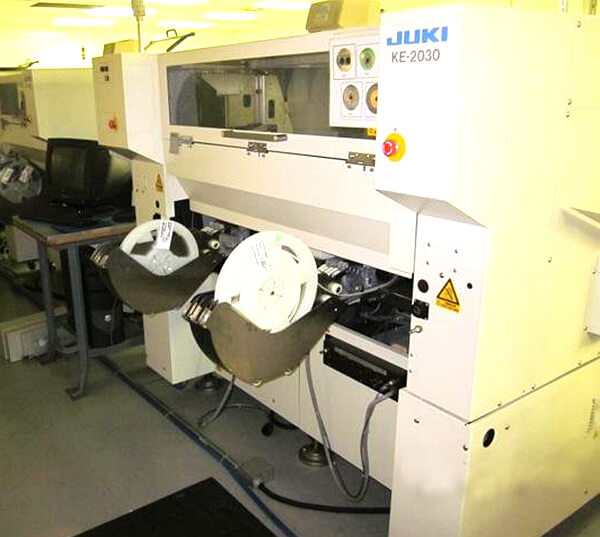

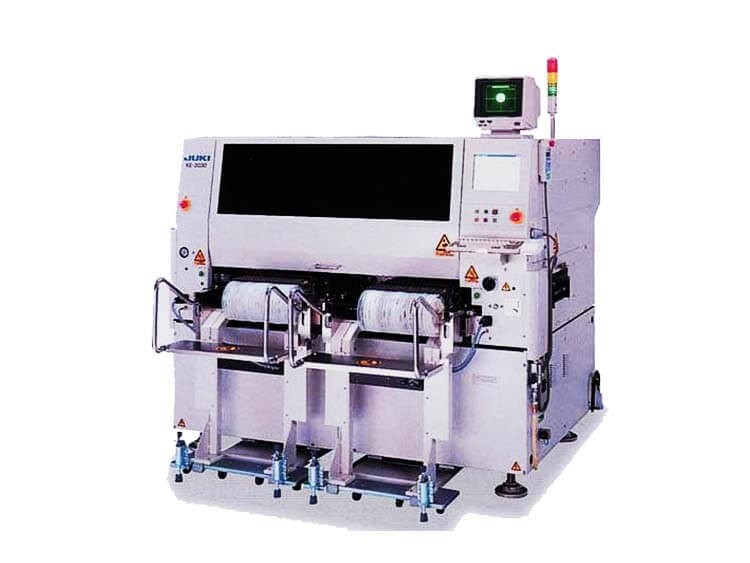

JUKI KE-2030 chip mounter
JUKI 2030 is 20000CPH can achieve high-speed performance "double-chip high-speed placement machine."
Not only can be used around 2 patch head to mount two substrates at the same time,
but also to achieve the same type of mounting the highest efficiency,
The equivalent of two JUKI 2010.
1) PCB size: 330mmX250mm
2) Can be attached to the component range: 0402,0603 chip -26.5X11mm or 20mm square components
3) The number of stations: 60 x 2
4) theoretical chip speed: 20000 (grain / hour)
5) Mounting accuracy: Laser identification ± 0.08mm
6) Size and weight: L1900 / W1476 / H2000 & 6000KG
7) Weight 1400 (kg)
Power three-phase AC200-415 (V)
8) Patch speed 19000CPH (grain / hour)
9) Resolution ± 0.05mm (mm)
Manufactured in 2000,
PCB size: 330mmX250mm
Components can be affixed to range: 0402,0603 chip-26.5X11mm or 20mm square components
Feed station number: 60 x 2
Theory Chip Speed: 20000 (tablets / hour)
Placement accuracy: ± 0.08mm laser identification
Size and weight: L1900/W1476/H2000 & 6000KG
Power and gas supply: 3PH, 200V, 5KVA
Configuration: 0603 2 sets of each nozzle; Manual CD-ROM 1
2 multi nozzle laser heads(8 nozzles)
From: 0603 (0201)chip to 26.5 x 11mm chip or 20mm square chip
Simultaneous placement of components onto two boards
Medium board size: 330 x 250mm
Large board size: 410 x 360mm
Extra large board size: 510 x 460mm
Applicable component height: 6mm, 12-20mm
Component size: 25mm, 0603 chip, from 1005 chip
to 20mm square chip or 26.5 x 11mm chip.
From 1005 chip to 50mm square chip or 50 x 150mm chip
Component placement speed: chip, IC: 20,000cph
Component placement accuracy: Laser recognition +/- 0.08mm
Max. unique components: 120 per side using 8mm tape feeders
feeders type available: tape- 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, and 56mm.
Stick/ bulk/ tray not available
Power: 3 phase 200/220/240 or 380 VAC
Compressed Air: 71psi
Operating System: Windows NT
Programming Methods: On line: teach with placement head, teach camera, key board only
Off Line: keyboard entry, CAD data conversion with optional software
Program Size: Maximum 3000 placements per circuit, not to exceed 10,000
Maximum 100 non-matrix or 400 matrix circuits per PCB.
Data entry resolution: X/Y axis 0.0004” (o.01mm)
Teta axis (rotation) 0.05
Entry in millimeters or inches
Self Calibration: Self calibration routine allows operator
to recalibrate at anytime in just minutes
Up and Down line connection: SMEMA standard
Teach Camera: Allows teaching of pick and placement location with
one of two CCD cameras mounted on the head assembly
Auto Tool Changer: The two tool changer hold up to fourty-one (41) vacuum nozzle
Seventeen (17) vacuum nozzles are standard (8x502, 8x504, 1x508)

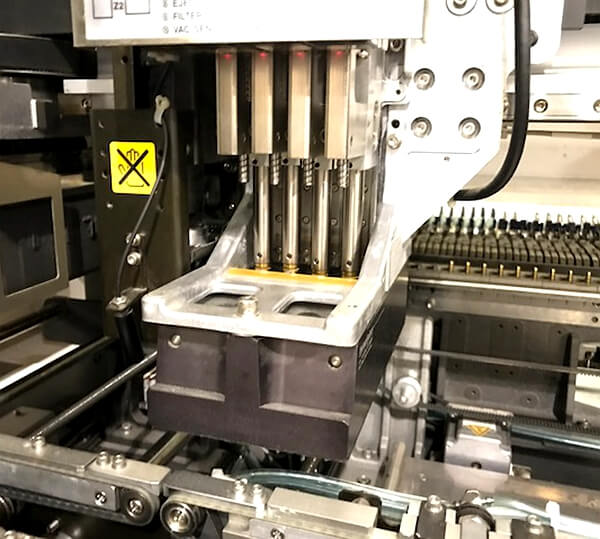

Placement Heads: Two (2) Multi- Nozzles Laser Align (MNLA) high speed assembley
head (total of 8 nozzles) driven by a overhead X/Y gantry positioning
System with closed loop twin AC servo motors and magnetic linear encoders
Component Pick and Placement Method: Pickup and placement is
performated via vacuum nozzle with programmable pick and placement force
Component Centering: Non Contact TouchLess Centering (TLC) using LaserAlign Sensor
Component Detection: Vacuum Sensor and Laser
