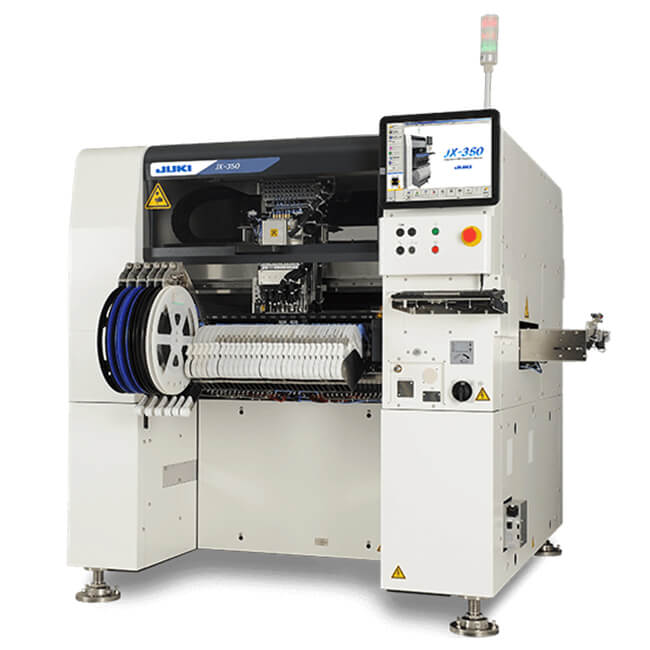

JUKI JX-350 LED Pick and Place Machine

FEEDER INPUTS: Max.40
Max PCB:1,200 X 360mm
components ranging: 0603(0201)
Placement Speed:23,300CPH
Product description: JUKI JX-350 LED Pick and Place Machine,FEEDER INPUTS: Max.40, Max PCB:1,200 X 360mm,components ranging: 0603(0201),Placement Speed:23,300CPH
INQUIRY

JUKI JX-350 LED Pick and Place Machine

Description:

JX-350 LED Flexible LED Mounter
The new JX-350 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.

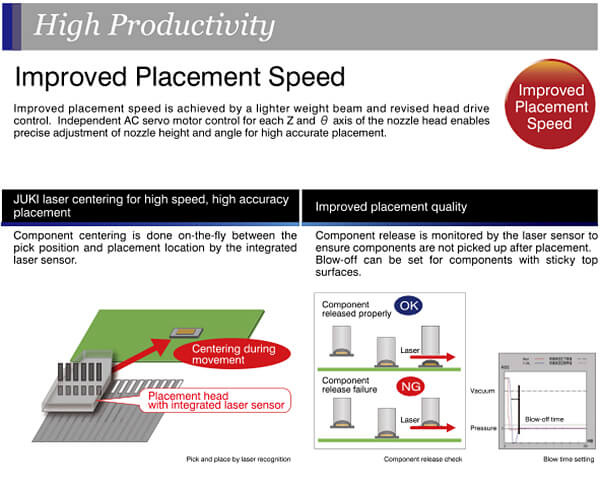

It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.
Ultra-Long Board Support
High Speed
High Accuracy

The new JX-350 LED Mounter offers a flexible placement system specially designed forLED lighting products

and mid- to large LCD display backlights.

It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed,
high accuracy placement offers the best in the industry.

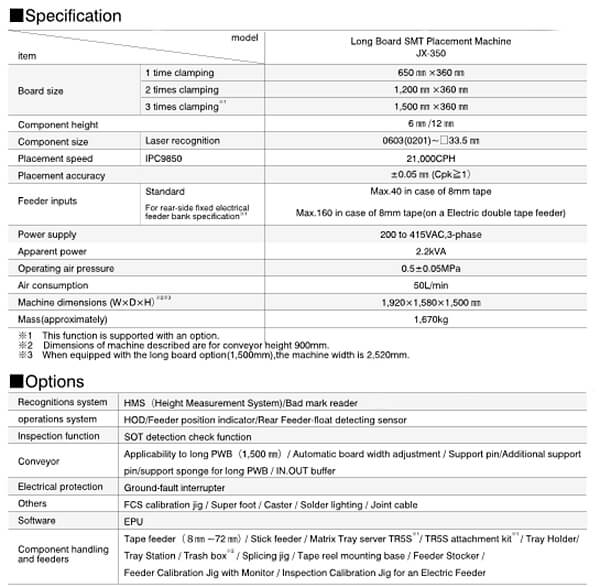

BOARD SIZE
Standard Specification: 50 X 50 ~ 1,200 X 360mm
Longer Sized PWB: 50 X 50 ~ 1,500 X 360mm
COMPONENT SPECS | Component Height: 6mm/12mm
Component Size:0603(0201) ～ 33.5mm
PLACEMENT SPECS

Placement Speed (chip):
Optimum: 23,300CPH
IPC9850: 18,300 CPH
Placement Accuracy: ±0.05mm(Cpk≧1)
Feeder INPUTS: Max.40 in case of 8mm tape
