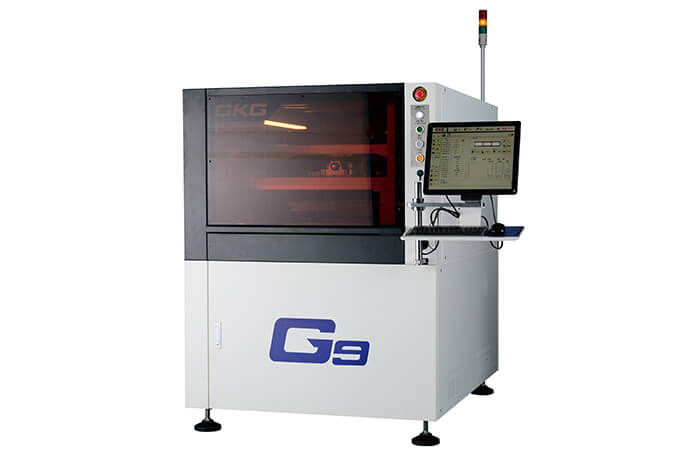

GKG G9 SMT Stencil Printer

PCB:450X340mm
PCB weight: 3KG
size: 1530x1172x1385mm
Weight:1000Kg
Product description: GKG G9 SMT Stencil Printer Fully AutomaticGKG G9 automatic tin paste printing machine is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015,0.2
INQUIRY

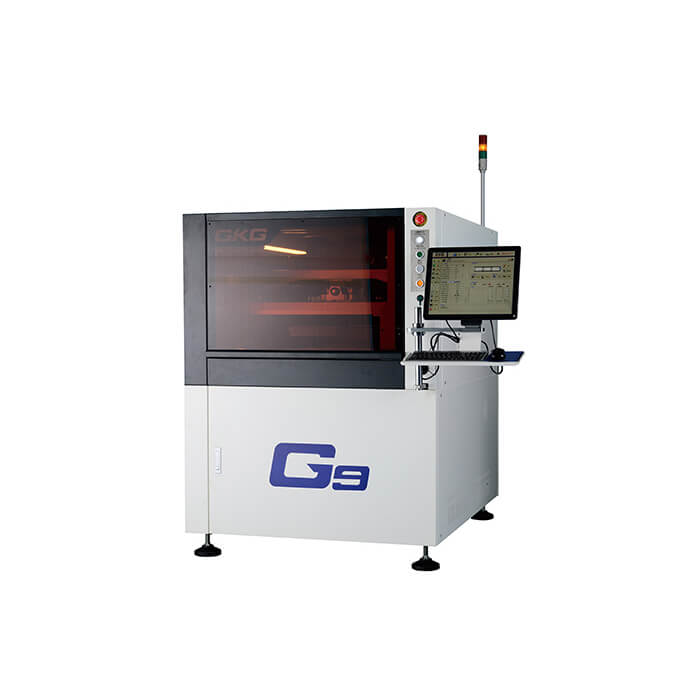

GKG G9 SMT Stencil Printer

Products description

GKG G9 SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service! GKG G9 automatic tin paste printing machine is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25 pitch, high precision and high speed.

G9 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification ：
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~450mm x340mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item		Parameter
Repeat Position Accuracy		±0.01mm(Test data and method are available)
Printing Accuracy		±0.018mm(Test data and method are available)
Printing Speed / Cycle Time		<8s (Exclude Printing & Cleaning)
Products Changeover		<5Min
Screen Stencil Size/Min-Max		470mm X340mm-737mm X737mm
Screen Stencil Size/Thickness		20mm ~ 40mm
PCB Size/Min-Max/Thickness5		0X50mm-450X340mm/0.4~15mm
PCB Warpage Ratio		＜1%（Based on diagonal length）
Bottom of Board Size		15mm（Standard configuration）, 25mm
Edge of Board Size		3mm
Conveyor Height		900±40mm
Conveyor Direction		Left-Right; Right-Left; Left-Left; Right-Right
Conveyor Speed		100-1500mm/sec Programmable control
Board Positioning	Support System	Magnetic pin/Side support block/Flexible automatic pin（optional）
	Clamping System	Elastic side clamping/Vacuum Nozzle/Extension-type Z-direction table setting
Print head		Two indepandent Motorised printheads
Squeegee Speed		6~300mm/sec
Squeegee Pressure		0-10kg software control（closed-loop pressure feedback）, pressure value visible
Squeegee Angle		60°(Standard )/55°/45°
Squeegee Type		Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.
Steel Mesh Separation Speed		0.1~20mm/sec Programmable Control
Cleaning Method		Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods）
Table Adjustment Range		X:±3mm; Y:±7mm θ:±2°
Type of Fiducial Point		Standard geometry shape of fiducial point, bonding pad / Stencil hole
Camera System		Single digital camera for upward/downward vision system
Air Pressure		4~6Kg/cm2
Air Consumption		Approx 0.07m3 /min
Control Method		PC Control
Power Supply		AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions/Weight		Depends on exactly model
Operation Temperature		-20°C ~ +45°C
Operation Humidity		30%~60%
