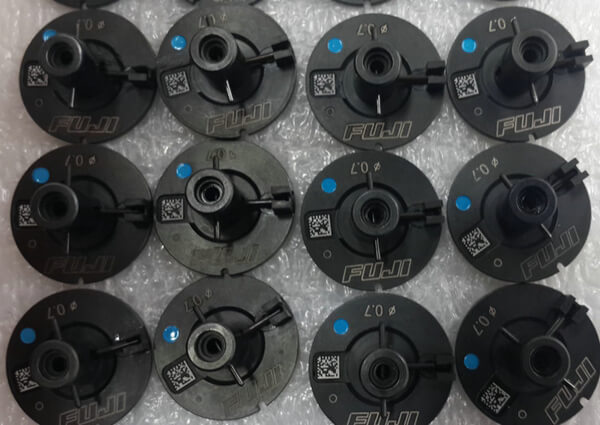

Fuji NXT Nozzle H08 0.7 nozzle

Products description

NOZZLE SIZE H08/H12 H04 H01
0.45*0.3 AA05600 / /
0.7*0.5 AA05700 / /
Diameter1.0 AA05800 AA06W00 AA0AS00
Diameter1.3 AA20A00 AA06X00 AA05800
Diameter1.3 MELF AA06400 / AA0MZ00
Diameter1.8 AA20B00 AA06Y00 AA06900
Diameter1.8 MELF AA19G00 / AA11R00
Diameter2.5 AA20C00 AA06Z00 AA07000
Diameter2.5 MELF / / /
Diameter2.5G / AA07F00 AA08400
Diameter3.7 AA20D00 AA07A00 AA07100
Diameter3.7G AA18C00 AA07G00 AA08500
Diameter5.0 AA20E00 AA07B00 AA07900
Diameter5.0 G AA06300 AA07H00 AA07200
Diameter7.0 / AA07C00 AA08000
Diameter7.0G / AA07K00 AA07300
Diameter10.0 / AA07D00 AA08100
Diameter10.0G / AA07L00 AA07400
Diameter15.0 / AA07E00 AA08200
Diameter15.0G / AA07M00 AA07500
Diameter20.0 / / AA08300
Diameter20.0G / / AA07600
JIP AA06A00 AA0EX00 AA05Z00



CP4 NOZZLE
Part Number Description
AMPH - 8710 CP4/S PICK UP NOZZLE Ø 0.7
AMPH - 8720 CP4/S PICK UP NOZZLE Ø 1.0
AMPH - 8730 CP4/S PICK UP NOZZLE Ø 1.3
AMPH - 8740 CP4/S PICK UP NOZZLE Ø 1.8
AMPH - 8750 CP4/S PICK UP NOZZLE Ø 2.5
AMPH - 8760 CP4/L PICK UP NOZZLE Ø 2.5
AMPH - 8770 CP4/L PICK UP NOZZLE Ø 3.7
AMPH - 8780 CP4/L PICK UP NOZZLE Ø 5.0

CP2-CP3 Nozzle
Part Number Description
AGPH - 9560 CP3/S PICK UP NOZZLE Ø 0.7
AGPH - 9410 CP3/S PICK UP NOZZLE Ø 1.0
AGPH - 9130 CP3/S PICK UP NOZZLE Ø 1.3
AGPH - 9050 CP3/S PICK UP NOZZLE Ø 1.3 (MELF)
AGPH - 9470 CP3/L PICK UP NOZZLE Ø 1.3
AGPH - 9060 CP3/L PICK UP NOZZLE Ø 2.5
AGPH - 9430 CP3/L PICK UP NOZZLE Ø 3.4
AGPH - 9460 CP3/L PICK UP NOZZLE Ø 1.3 (MELF)

FUJI CP3 DARKPOINT PICK UP NOZZLE
Part Number Description
AGPH - 9570 CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550 CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190 CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200 CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440 CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5

CP6 NOZZLE
Part Number Description
AWPH - 9510 CP6/S PICK UP NOZZLE Ø 0.7
AWPH - 9520 CP6/S PICK UP NOZZLE Ø 1.0
AWPH - 9530 CP6/S PICK UP NOZZLE Ø 1.3
AWPH - 9550 CP6/S PICK UP NOZZLE Ø 1.8
AWPH - 9541 CP6/S PICK UP NOZZLE Ø 1.3 (MELF)
AWPH - 9580 CP6/L PICK UP NOZZLE Ø 2.5
AWPH - 9600 CP6/L PICK UP NOZZLE Ø 3.7
AWPH - 9591 CP6/L PICK UP NOZZLE Ø 2.5 (MELF)
AWPH - 9560 CP6/M PICK UP NOZZLE Ø 2.5

CP7 NOZZLE
Part Number Description
ADCPH - 9510 CP7/S NOZZLE Ø0.4 (8mm Diameter)
ADCPH - 9520 CP7/S NOZZLE Ø0.7 (8mm Diameter)
ADCPH - 9530 CP7/S NOZZLE Ø1.0 (8mm Diameter)
ADCPH - 9540 CP7/S NOZZLE Ø1.3 (8mm Diameter)
ADCPH - 9700 CP7/S NOZZLE Ø1.3 (8mm Diameter) MELF
ADCPH - 9550 CP7/S NOZZLE Ø1.8 (16mm Diameter)
ADCPH - 9560 CP7/L NOZZLE Ø2.5 (16mm Diameter)
ADCPH - 9710 CP7/L NOZZLE Ø2.5 (16mm Diameter) MELF
ADCPH - 9570 CP7/L NOZZLE Ø3.7 (16mm Diameter)
ADCPH - 9580 CP7/L NOZZLE Ø5.0 (16mm Diameter) SQUARE

IP1-IP2 NOZZLE
Part Number Description
IPH - 3431 IP - SS NOZZLE Ø 1.0
IPH - 3421 IP - S NOZZLE Ø 1.3
IPH - 3411 IP - M NOZZLE Ø 2.5
IPH - 3401 IP - L NOZZLE Ø 4.0
IPH - 4511 IP - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520 IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531 IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541 IP - LL NOZZLE Ø 20.0 (WITH CAP)

AKPH - 2051 IP2 - SS NOZZLE Ø 1.0 (FIXED)
AKPH - 2031 IP2 - S NOZZLE Ø 1.3 (FIXED)
AKPH - 2041 IP2 - M NOZZLE Ø 2.5 (FIXED)
AKPH - 2061 IP2 - L NOZZLE Ø 4.0 (FIXED)

AIPH - 4030 IP2 -1.3 /21mm DISK
AIPH - 4090 IP2 - 2.5 /33mm DISK
AIPH - 4100 IP2 - 4.0 /71mm DISK
AIPH - 4120 IP 2-10.0 /91mm DISK

IP3 Nozzle
Part Number Description
AQNA - 3110/19 IP3 - NOZZLE Ø 0.7 (FIXED) (10mm)
AQNA - 3120/29 IP3 - NOZZLE Ø 1.0 (FIXED) (10mm)
AQNA - 3130/39 IP3 - NOZZLE Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49 IP3 - NOZZLE Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59 IP3 - NOZZLE Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69 IP3 - NOZZLE Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170 IP3 - NOZZLE Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180 IP3 - NOZZLE Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190 IP3 - NOZZLE Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01 IP3 - NOZZLE Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95 IP3 - NOZZLE Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04 IP3 - NOZZLE Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14 IP3 - NOZZLE Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24 IP3 - NOZZLE Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34 IP3 - NOZZLE Ø 6.5 (FIXED) (52 x 52mm)

QP242 INDEX Nozzle
Part Number Description
ABHPN-8510 QP-2 INDEX NOZZLE 0.7Φ/12
ABHPN-8520 QP-2 INDEX NOZZLE 1.0Φ/12
ABHPN-8530 QP-2 INDEX NOZZLE 1.3/12
ABHPN-8670 QP-2 INDEX NOZZLE 1.3/38
ABHPN-8540 QP-2 INDEX NOZZLE 1.8Φ/12
ABHPN-8550 QP-2 INDEX NOZZLE 2.5Φ/38
ABHPN-8560 QP-2 INDEX NOZZLE 2.5ΦG/38
ABHPN-8570 QP-2 INDEX NOZZLE 3.75Φ/38
ABHPN-8580 QP-2 INDEX NOZZLE 6.5ΦG/47
ABHPN-8590 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8600 QP-2 INDEX NOZZLE 10.0Φ/47F
ABHPN-8610 QP-2 INDEX NOZZLE 2.5Φ/38F
ABHPN-8620 QP-2 INDEX NOZZLE 2.5ΦG/38F
ABHPN-8630 QP-2 INDEX NOZZLE 3.75Φ/38F
ABHPN-8640 QP-2 INDEX NOZZLE 6.5ΦG/47F
ABHPN-8650 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8660 QP-2 INDEX NOZZLE 10.0Φ/47F

QP242 SINGLE Nozzle
Part Number Description
ABHPN-6217 QP-2 NOZZLE SINGLE 1.0Φ L=270F
ABHPN-6227 QP-2 NOZZLE SINGLE 1.3Φ L=270F
ABHPN-6237 QP-2 NOZZLE SINGLE 1.8Φ L=270F
ABHPN-6248 QP-2 NOZZLE SINGLE 2.5Φ L=270F
ABHPN-6718 QP-2 NOZZLE SINGLE 2.5GΦ L=270F
ABHPN-6258 QP-2 NOZZLE SINGLE 3.75Φ L=270F
ABHPN-6855 QP-2 NOZZLE SINGLE 5ΦG L=270F
ABHPN-8196 QP-2 NOZZLE SINGLE 5ΦG L=270(back)
ABHPN-6273 QP-2 NOZZLE SINGLE 7Φ L=270F
ABHPN-6895 QP-2 NOZZLE SINGLE 8ΦG L=270F
ABHPN-8216 QP-2 NOZZLE SINGLE 8ΦG L=270(back)
ABHPN-6283 QP-2 NOZZLE SINGLE 10ΦL=270F
ABHPN-6293 QP-2 NOZZLE SINGLE 15Φ L=270F
ABHPN-6805 QP-2 NOZZLE SINGLE 15ΦG L=270F
ABHPN-6705 QP-2 NOZZLE SINGLE 17.5GΦ L=270F
ABHPN-6300 QP-2 NOZZLE SINGLE 20Φ L=270F
ABHPN-6330 QP-2 NOZZLE SINGLE 0.7 Φ L=185F
ABHPN-6750 QP-2 NOZZLE SINGLE 6.5ΦG L=185F
ABHPN-6360 QP-2 NOZZLE SINGLE 7Φ L=185F
ABHPN-6810 QP-2 NOZZLE SINGLE 7Φ L=100F
ABHPN-6770 QP-2 NOZZLE SINGLE 10Φ L=185F
ABHPN-6340 QP-2 NOZZLE SINGLE 10ΦG L=185F
ABHPN-6821 QP-2 NOZZLE SINGLE 10Φ L=100F
ABHPN-6780 QP-2 NOZZLE SINGLE 15Φ L=185F
ABHPN-6831 QP-2 NOZZLE SINGLE 15Φ L=100F
ABHPN-6790 QP-2 NOZZLE SINGLE 20Φ L185F
ABHPN-6840 QP-2 NOZZLE SINGLE 20Φ L100F
ABHPN-6850 QP-2 NOZZLE SINGLE 23ΦG (for BGA)

QP3 Nozzle
Part Number Description
ADBPN-8123 QP-3 NOZZLE 1.8Φ
ADBPN-8133 QP-3 NOZZLE 2.5Φ
ADBPN-8193 QP-3 NOZZLE 2.5Φ
ADBPN-8143 QP-3 NOZZLE 3.75Φ
ADBPN-8023 QP-3 NOZZLE 5Φ
ADBPN-8203 QP-3 NOZZLE 5ΦG
ADBPN-8213 QP-3 NOZZLE 8ΦG
ADBPN-8223 QP-3 NOZZLE 15ΦG
ADBPN-8233 QP-3 NOZZLE 17.5ΦG
ADBPN-8180 QP-3 NOZZLE SINGLE 20Φ L=270
ADBPN-8440 QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340 QP-3 NOZZLE SINGLE 20Φ L=110
ADBPN-8341 QP-3 NOZZLE SINGLE 23ΦG (for BGA)

XP141E nozzle
Part Number Description
ADEPN-8070 XP-141 NOZZLE ASS'Y-0.7Φ
ADEPN-8080 XP-141 NOZZLE ASS'Y-1.0Φ
ADEPN-8090 XP-141 NOZZLE ASS'Y-1.3Φ
ADEPN-8100 XP-141 NOZZLE ASS'Y-1.8Φ

XP142E / XP143E Nozzle
Part Number Description
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8250 XP-142 NOZZLE ASS'Y-1.8Φ
ADNPN8260 XP-142 NOZZLE ASS'Y-2.5Φ
ADNPN8270 XP-142 NOZZLE ASS'Y-3.7Φ
ADNPN8280 XP-142 NOZZLE ASS'Y-5.0Φ

1.Short lead time;

2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
