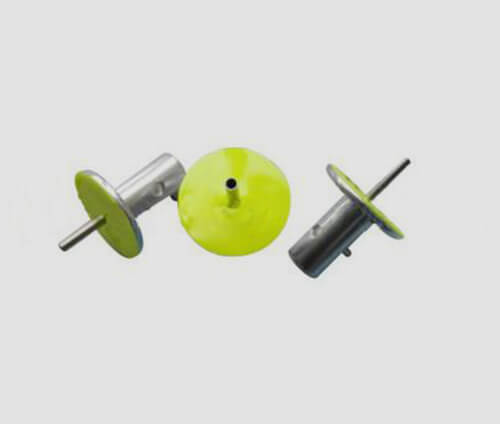

Fuji CP6 1.3mm Nozzle AWPH - 9530

Products description

Fuji Nozzle features:
1. CP series Nozzles: Original Japan sticker and aluminum,
hard Nozzle tube, durable and precision.

2. XP series Nozzles: Original manufacture technology, Nozzle body adopt
special processing technology with aluminum alloy , Nozzle tip and plate
made of ceramic material, do never be white.

3. QP3 series Nozzles: The crystal manufacture by original producing technology,
transparency completely conform to the requirements of the original factory.

4. NXT series Nozzles: Readable original data two-dimension code,
easily to identification by machine; the Nozzle tip made of
ceramic materials, do never be white.

All Fuji nozzles models are summarized as follows:
FUJI NXT NOZZLE H01 PLACING HEAD
Part Number    Description
AA0AS00        Nozzle 1.0
AA06800        Nozzle 1.3
AA0HL00        Nozzle 1.8
AA0HM00        Nozzle 2.5
AA0HN00        Nozzle 3.7
AA0HR01        Nozzle 5.0
AA08000        Nozzle 7.0
AA08100        Nozzle 10.0
AA08200        Nozzle 15.0
AA08300        Nozzle 20.0
AA0MZ00        Nozzle 1.3m MELF
AA11R00        Nozzle 1.8m MELF
AA08410        Nozzle 2.5G with rubber pad
AA08500        Nozzle 3.7G with rubber pad
AA07200        Nozzle 5.0G with rubber pad
AA07310        Nozzle 7.0G with rubber pad
AA07410        Nozzle 10.0G with rubber pad
AA07510        Nozzle 15.0G with rubber pad
AA07610        Nozzle 20.0G with rubber pad

FUJI NXT NOZZLE H04 PLACING HEAD
Part Number    Description
AA06W00        Nozzle 1.0
AA06X00        Nozzle 1.3
AA06Y00        Nozzle 1.8
AA06Z00        Nozzle 2.5
AA07A00        Nozzle 3.7
AA07B00        Nozzle 5.0
AA07C00        Nozzle 7.0
AA07D00        Nozzle 10.0
AA07E00        Nozzle 15.0
AA22Y00        Nozzle 1.3m MELF
AA22Z00        Nozzle 1.8m MELF
AA07F00        Nozzle 2.5 with rubber pad
AA00G00        Nozzle 3.7 with rubber pad
AA00H00        Nozzle 5.0 with rubber pad
AA07K00        Nozzle 7.0 with rubber pad
AA07L00        Nozzle 10.0 with rubber pad
AA07M00        Nozzle 15.0 with rubber pad

FUJI NXT NOZZLE H08/ H12S PLACING HEAD
AA1AT00        Nozzle 0.3
AA05600        Nozzle 0.4
AA05700        Nozzle 0.7
AA05800        Nozzle 1.0
AA20A00        Nozzle 1.3
AA20B00        Nozzle 1.8
AA20C01        Nozzle 2.5
AA0WT00        Nozzle 2.5G
AA20D00        Nozzle 3.7
AA20E00        Nozzle 5.0
AA06400        Nozzle 1.3m MELF
AA19G00        Nozzle 1.8m MELF
AA18C00        Nozzle 3.7G with rubber pad
AA06300        Nozzle 5.0G with rubber pad

FUJI XP 241 341 SMT NOZZLE
Part Number     Description
ADEPN8510       FUJI XP2 PICK UP NOZZLE Φ0.7
ADEPN8520       FUJI XP2 PICK UP NOZZLE Φ1.0
ADEPN8530       FUJI XP2 PICK UP NOZZLE Φ1.3
ADEPN8540       FUJI XP2 PICK UP NOZZLE Φ1.8
ADEPN8550       FUJI XP2 PICK UP NOZZLE Φ2.5
ADEPN8560       FUJI XP2 PICK UP NOZZLE Φ3.7
ADEPN8530       FUJI XP3 PICK UP NOZZLE Φ0.7
ADEPN8540       FUJI XP3 PICK UP NOZZLE Φ1.0
ADEPN8550       FUJI XP3 PICK UP NOZZLE Φ1.3
ADEPN8560       FUJI XP3 PICK UP NOZZLE Φ1.8
DEPN3080        FUJI XP3 PICK UP NOZZLE Φ5.0
DEPN3089        FUJI XP3 PICK UP NOZZLE Φ7.0
DEPN3100        FUJI XP3 PICK UP NOZZLE Φ10
DEPN3110        FUJI XP3 PICK UP NOZZLE Φ15
DEPN3120        FUJI XP3 PICK UP NOZZLE Φ20

FUJI XP 142 143 141 SMT NOZZLE
Part Number     Description
ADNPN8210       XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230       XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240       XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8210       XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230       XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240       XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8250       XP-142 NOZZLE ASS'Y-1.8Φ
ADNPN8260       XP-142 NOZZLE ASS'Y-2.5Φ
ADNPN8270       XP-142 NOZZLE ASS'Y-3.7Φ
ADNPN8280       XP-142 NOZZLE ASS'Y-5.0Φ
ADEPN-8070      XP-141 NOZZLE ASS'Y-0.7Φ
ADEPN-8080      XP-141 NOZZLE ASS'Y-1.0Φ
ADEPN-8090      XP-141 NOZZLE ASS'Y-1.3Φ
ADEPN-8100      XP-141 NOZZLE ASS'Y-1.8Φ

FUJI QP341 INDEX SMT NOZZLE
Part Number    Description
ADBPN-8123     QP-3 NOZZLE  1.8Φ
ADBPN-8133     QP-3 NOZZLE  2.5Φ
ADBPN-8193     QP-3 NOZZLE  2.5ΦG
ADBPN-8143     QP-3 NOZZLE  3.75Φ
ADBPN-8023     QP-3 NOZZLE  5Φ
ADBPN-8203     QP-3 NOZZLE  5ΦG
ADBPN-8213     QP-3 NOZZLE  8ΦG
ADBPN-8223     QP-3 NOZZLE  15ΦG
ADBPN-8233     QP-3 NOZZLE  17.5ΦG
ADBPN-8180     QP-3  NOZZLE SINGLE 20Φ L=270
ADBPN-8440     QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340     QP-3  NOZZLE SINGLE 20Φ L=110
ADBPN-8341     QP-3  NOZZLE SINGLE 23ΦG (for BGA)

FUJI QP242 QP132 INDEX SMT NOZZLE
Part Number      Description
ABHPN - 8510     QP-S-12 -Ø 0.7
ABHPN - 8520     QP-S-12 NZ. Ø 1.0
ABHPN - 8530     QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560     QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570     QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590     QP-L-47 NZ. Ø 7.0
CGPN-8036        QP132 Ø0.7 / Ø0.4
CGPN-80250       QP132 Ø1.0 / Ø0.7
CGPN-8015        QP132 Ø1.3 / Ø0.9

FUJI CP3 DARKPOINT SMT NOZZLE
Part Number      Description
AGPH - 9560     FUJI CP3/S SMT NOZZLE Ø 0.7
AGPH - 9410     FUJI CP3/S SMT NOZZLE Ø 1.0
AGPH - 9130     FUJI CP3/S SMT NOZZLE Ø 1.3
AGPH - 9050     FUJI CP3/S SMT NOZZLE Ø 1.3 (MELF)
AGPH - 9470     FUJI CP3/L SMT NOZZLE Ø 1.3
AGPH - 9060     FUJI CP3/L SMT NOZZLE Ø 2.5
AGPH - 9430     CP3/L Ø 3.4
AGPH - 9460     CP3/L Ø 1.3 (MELF)
AGPH - 9570     CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550     CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190     CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200     CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440     CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5

FUJI CP4 CP6 CP7 SMT NOZZLE
Part Number      Description
AMPH - 8710     CP4/S Ø 0.7
AMPH - 8720     CP4/S Ø 1.0
AMPH - 8730     CP4/S Ø 1.3
AMPH - 8740     CP4/S Ø 1.8
AMPH - 8750     CP4/S Ø 2.5
AMPH - 8760     CP4/L Ø 2.5
AMPH - 8770     CP4/L Ø 3.7
AMPH - 8780     CP4/L Ø 5.0
AWPH - 9510     CP6/S Ø 0.7
AWPH - 9520     CP6/S Ø 1.0
AWPH - 9530     CP6/S Ø 1.3
AWPH - 9550     CP6/S Ø 1.8
AWPH - 9541     CP6/S Ø 1.3 (MELF)
AWPH - 9580     CP6/L Ø 2.5
AWPH - 9600     CP6/L Ø 3.7
AWPH - 9591     CP6/L Ø 2.5 (MELF)
AWPH - 9560     CP6/M Ø 2.5
ADCPH - 9510    CP7/S Ø0.4 (8mm Diameter)
ADCPH - 9520    CP7/S Ø0.7 (8mm Diameter)
ADCPH - 9530    CP7/S Ø1.0 (8mm Diameter)
ADCPH - 9540    CP7/S Ø1.3 (8mm Diameter)
ADCPH - 9700    CP7/S Ø1.3 (8mm Diameter) MELF
ADCPH - 9550    CP7/S Ø1.8 (16mm Diameter)
ADCPH - 9560    CP7/L Ø2.5 (16mm Diameter)
ADCPH - 9710    CP7/L Ø2.5 (16mm Diameter) MELF
ADCPH - 9570    CP7/L Ø3.7 (16mm Diameter)
ADCPH - 9580    CP7/L Ø5.0 (16mm Diameter) SQUARE

FUJI IP IP2 IP3 SMT NOZZLE
Part Number      Description
IPH - 3431      FUJI IP SMT NOZZLE - SS NOZZLE Ø 1.0
IPH - 3421      FUJI IP SMT NOZZLE - S NOZZLE Ø 1.3
IPH - 3411      FUJI IP SMT NOZZLE - M NOZZLE Ø 2.5
IPH - 3401      FUJI IP SMT NOZZLE - L NOZZLE Ø 4.0
IPH - 4511      FUJI IP SMT NOZZLE - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520      IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531      IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541      IP - LL NOZZLE Ø 20.0 (WITH CAP)
AKPH - 2051     IP2 - SS Ø 1.0 (FIXED)
AKPH - 2031     IP2 - S Ø 1.3 (FIXED)
AKPH - 2041     IP2 - M Ø 2.5 (FIXED)
AKPH - 2061     IP2 - L Ø 4.0 (FIXED)
AQNA - 3130/39     IP3 - Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49     IP3 - Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59     IP3 - Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69     IP3 - Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170        IP3 - Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180        IP3 - Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190        IP3 - Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01     IP3 - Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95     IP3 - Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04     IP3 - Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14     IP3 - Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24     IP3 - Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34     IP3 - Ø 6.5 (FIXED) (52 x 52mm)
IPA - 0007         IP - LL ADAPTOR Ø 7.0
IPA - 0010         IP - LL ADAPTOR Ø 10.0
IPA - 0015         IP - LL ADAPTOR Ø 15.0
IPA - 0020         IP - LL ADAPTOR Ø 20.0

FUJI QP QP132 QP242 QP341 SMT NOZZLE
Part Number     Description
BHPN - 3271     QP SMT NOZZLE SPRING PLATE
BHPN - 3232     QP SMT NOZZLE SPRING PLATE
ABHPN - 6246     - Ø 2.5
ABHPN - 6256     - Ø 3.75
ABHPN - 6276     - Ø 7.0
ABHPN - 6365     - Ø 7.0
ABHPN - 6852     - Ø 5.0 (W/RUBBER CUP)
ABHPN - 6893     - Ø 8.0 (W/RUBBER CUP)
ABHPN - 6803     - Ø 15.0 (W/RUBBER CUP)
ABHPN - 6703     - Ø 17.5 (W/RUBBER CUP)
CGPN-8036        QP132 Ø0.7 / Ø0.4
CGPN-80250       QP132 Ø1.0 / Ø0.7
CGPN-8015        QP132 Ø1.3 / Ø0.9
ABHPN - 8510     QP-S-12 -Ø 0.7
ABHPN - 8520     QP-S-12 NZ. Ø 1.0
ABHPN - 8530     QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560     QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570     QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590     QP-L-47 NZ. Ø 7.0

FUJI QP341 INDEX SMT NOZZLE
Part Number    Description
ADBPN-8123     QP-3 NOZZLE  1.8Φ
ADBPN-8133     QP-3 NOZZLE  2.5Φ
ADBPN-8193     QP-3 NOZZLE  2.5ΦG
ADBPN-8143     QP-3 NOZZLE  3.75Φ
ADBPN-8023     QP-3 NOZZLE  5Φ
ADBPN-8203     QP-3 NOZZLE  5ΦG
ADBPN-8213     QP-3 NOZZLE  8ΦG
ADBPN-8223     QP-3 NOZZLE  15ΦG
ADBPN-8233     QP-3 NOZZLE  17.5ΦG
ADBPN-8180     QP-3  NOZZLE SINGLE 20Φ L=270
ADBPN-8440     QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340     QP-3  NOZZLE SINGLE 20Φ L=110
ADBPN-8341     QP-3  NOZZLE SINGLE 23ΦG (for BGA)

FUJI QP242 QP132 INDEX SMT NOZZLE
Part Number      Description
ABHPN - 8510     QP-S-12 -Ø 0.7
ABHPN - 8520     QP-S-12 NZ. Ø 1.0
ABHPN - 8530     QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560     QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570     QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590     QP-L-47 NZ. Ø 7.0
CGPN-8036        QP132 Ø0.7 / Ø0.4
CGPN-80250       QP132 Ø1.0 / Ø0.7
CGPN-8015        QP132 Ø1.3 / Ø0.9

FUJI CP3 DARKPOINT SMT NOZZLE
Part Number      Description
AGPH - 9560     FUJI CP3/S SMT NOZZLE Ø 0.7
AGPH - 9410     FUJI CP3/S SMT NOZZLE Ø 1.0
AGPH - 9130     FUJI CP3/S SMT NOZZLE Ø 1.3
AGPH - 9050     FUJI CP3/S SMT NOZZLE Ø 1.3 (MELF)
AGPH - 9470     FUJI CP3/L SMT NOZZLE Ø 1.3
AGPH - 9060     FUJI CP3/L SMT NOZZLE Ø 2.5
AGPH - 9430     CP3/L Ø 3.4
AGPH - 9460     CP3/L Ø 1.3 (MELF)
AGPH - 9570     CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550     CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190     CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200     CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440     CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5

FUJI CP4 CP6 CP7 SMT NOZZLE
Part Number      Description
AMPH - 8710     CP4/S Ø 0.7
AMPH - 8720     CP4/S Ø 1.0
AMPH - 8730     CP4/S Ø 1.3
AMPH - 8740     CP4/S Ø 1.8
AMPH - 8750     CP4/S Ø 2.5
AMPH - 8760     CP4/L Ø 2.5
AMPH - 8770     CP4/L Ø 3.7
AMPH - 8780     CP4/L Ø 5.0
AWPH - 9510     CP6/S Ø 0.7
AWPH - 9520     CP6/S Ø 1.0
AWPH - 9530     CP6/S Ø 1.3
AWPH - 9550     CP6/S Ø 1.8
AWPH - 9541     CP6/S Ø 1.3 (MELF)
AWPH - 9580     CP6/L Ø 2.5
AWPH - 9600     CP6/L Ø 3.7
AWPH - 9591     CP6/L Ø 2.5 (MELF)
AWPH - 9560     CP6/M Ø 2.5
ADCPH - 9510    CP7/S Ø0.4 (8mm Diameter)
ADCPH - 9520    CP7/S Ø0.7 (8mm Diameter)
ADCPH - 9530    CP7/S Ø1.0 (8mm Diameter)
ADCPH - 9540    CP7/S Ø1.3 (8mm Diameter)
ADCPH - 9700    CP7/S Ø1.3 (8mm Diameter) MELF
ADCPH - 9550    CP7/S Ø1.8 (16mm Diameter)
ADCPH - 9560    CP7/L Ø2.5 (16mm Diameter)
ADCPH - 9710    CP7/L Ø2.5 (16mm Diameter) MELF
ADCPH - 9570    CP7/L Ø3.7 (16mm Diameter)
ADCPH - 9580    CP7/L Ø5.0 (16mm Diameter) SQUARE

FUJI IP IP2 IP3 SMT NOZZLE
Part Number      Description
IPH - 3431      FUJI IP SMT NOZZLE - SS NOZZLE Ø 1.0
IPH - 3421      FUJI IP SMT NOZZLE - S NOZZLE Ø 1.3
IPH - 3411      FUJI IP SMT NOZZLE - M NOZZLE Ø 2.5
IPH - 3401      FUJI IP SMT NOZZLE - L NOZZLE Ø 4.0
IPH - 4511      FUJI IP SMT NOZZLE - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520      IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531      IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541      IP - LL NOZZLE Ø 20.0 (WITH CAP)
AKPH - 2051     IP2 - SS Ø 1.0 (FIXED)
AKPH - 2031     IP2 - S Ø 1.3 (FIXED)
AKPH - 2041     IP2 - M Ø 2.5 (FIXED)
AKPH - 2061     IP2 - L Ø 4.0 (FIXED)
AQNA - 3130/39     IP3 - Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49     IP3 - Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59     IP3 - Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69     IP3 - Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170        IP3 - Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180        IP3 - Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190        IP3 - Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01     IP3 - Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95     IP3 - Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04     IP3 - Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14     IP3 - Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24     IP3 - Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34     IP3 - Ø 6.5 (FIXED) (52 x 52mm)
IPA - 0007         IP - LL ADAPTOR Ø 7.0
IPA - 0010         IP - LL ADAPTOR Ø 10.0
IPA - 0015         IP - LL ADAPTOR Ø 15.0
IPA - 0020         IP - LL ADAPTOR Ø 20.0

FUJI QP QP132 QP242 QP341 SMT NOZZLE
Part Number     Description
BHPN - 3271     QP SMT NOZZLE SPRING PLATE
BHPN - 3232     QP SMT NOZZLE SPRING PLATE
ABHPN - 6246     - Ø 2.5
ABHPN - 6256     - Ø 3.75
ABHPN - 6276     - Ø 7.0
ABHPN - 6365     - Ø 7.0
ABHPN - 6852     - Ø 5.0 (W/RUBBER CUP)
ABHPN - 6893     - Ø 8.0 (W/RUBBER CUP)
ABHPN - 6803     - Ø 15.0 (W/RUBBER CUP)
ABHPN - 6703     - Ø 17.5 (W/RUBBER CUP)
CGPN-8036        QP132 Ø0.7 / Ø0.4
CGPN-80250       QP132 Ø1.0 / Ø0.7
CGPN-8015        QP132 Ø1.3 / Ø0.9
ABHPN - 8510     QP-S-12 -Ø 0.7
ABHPN - 8520     QP-S-12 NZ. Ø 1.0
ABHPN - 8530     QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560     QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570     QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590     QP-L-47 NZ. Ø 7.0

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

Samsung Nozzle, Yamaha Chip mounter Nozzle, SMT Nozzle, Juki Nozzle, Panasonic Nozzle, Pick and place machine Nozzle, Seimens Nozzle, Yamaha Nozzle, FUJI Nozzle, JUKI Nozzle,Hitachi Nozzle.
