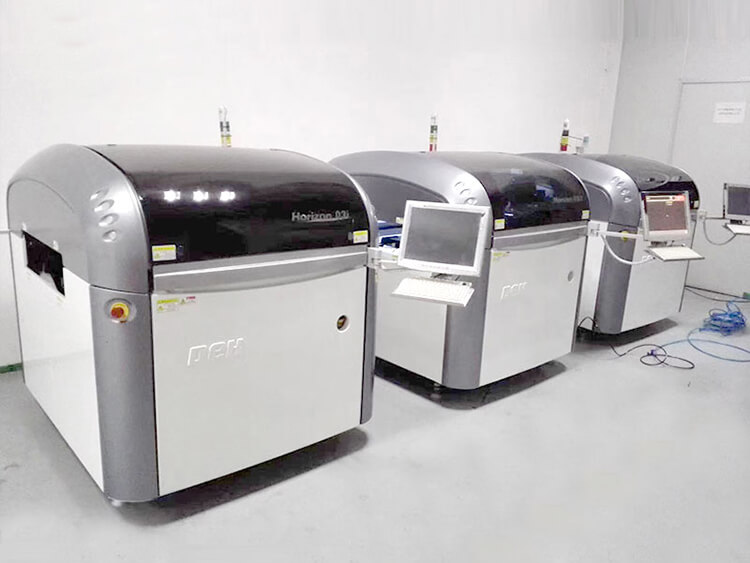

DEK SMT Stencil Printer Horizon 03iX

Printing cycle time:12 seconds
Maximum PCB: 510x508.5mm
Printing Pressure:0-20kg
Weight: Approx. 660 kg
Product description: DEK SMT Stencil Printer Horizon 03iX, Printing cycle time:12 seconds, Maximum PCB: 510x508.5mm, Printing Pressure:0-20kg, Weight: Approx. 660 kg, Dimension: 2060x1500x1570mm
INQUIRY

Specifications:

DEK Horizon 03iX
DEK is fully automatic SMT printer.
High-speed moving camera.
Advanced upper/lower vision system.

Technical Data:

Device alignment accuracy	> 2cpk@ +/ -12.5 microns, 6 sigma
Process alignment accuracy	> 2cpk@ +/ -25 microns, 6 sigma
Core printing cycle time	12 seconds (up to 11 seconds with HTC)
Scraper pressure mechanical system	Software control, motor drive
ISCANTM equipment control	Operation control using CAN BUS network
interface	Color tablet touch screen, keyboard and trackball, DEK InstinctivTM V9 user interface
Screen orientation	Manually load using the mesh frame depth regulator
Maximum substrate handling size	510 mm (X) X 508.5 mm (Y)
Minimum substrate handling size	50 mm (X) X 40.5 mm (Y)
The thickness of the substrate	From 0.2 mm to 6 mm
Base board weight	1 kg
Rail type	Use a 3 mm round belt integral transmission system
The visual system	Cognex
Camera lighting	Software controlled programmable LED lighting
