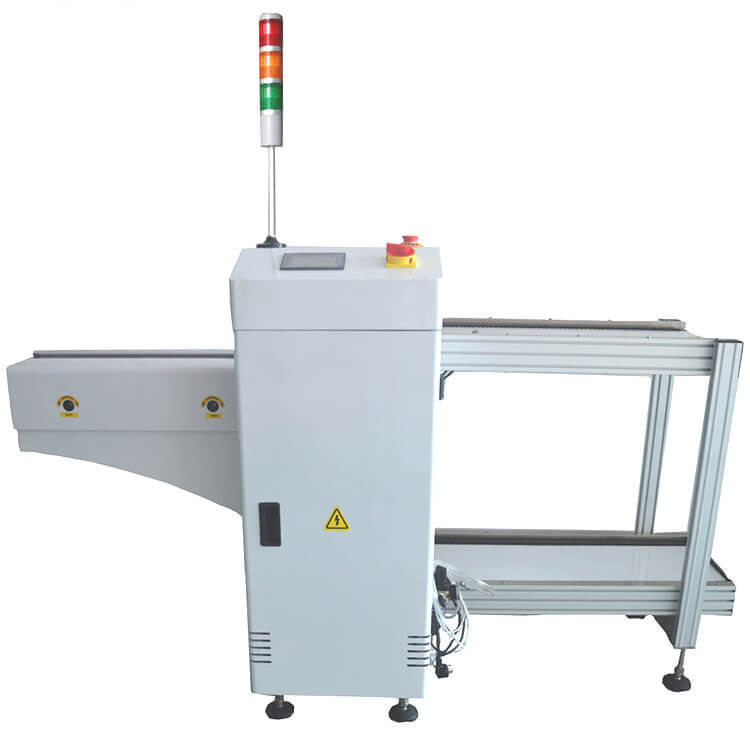

SMT PCB magazine Unloader

Demensions:1950(L)×680(W)×1650(H)mm
PCB size: 50x50 - 390x400mm
SMEMA compliant
Lift platform pitch selection:50pcs
Product description: SMT PCB magazine Unloader Factory, Demensions:1950(L)×680(W)×1650(H)mm, PCB size: 50x50 - 390x400mm, Lift platform pitch selection:50pcs
INQUIRY

SMT PCB magazine Unloader Factory

Product Features:

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box

Features
Model		Auto Unloader
Item	Product	Describtion
1	Auto SMT Unloader	1 Dimension:1950(L)×680(W)×1650(H)mm
		2 Special aluminum guide rail and special chain;
		3 90WSPG Brake motor drive the ball screw,Make Magazine lift;
		4 Pneumatic clamping structure
		5 Magazine Size :300(W)×340(L)×570(H)mm
		6 PCB Size :60(W)×60(L)mm--390(W)×400(L)mm
		7 Direction: R-L or L-R;
		8?Lift platform pitch selection:10?20?30?40?50
		9 Siemens PLC control system;
		10 auto upper function;
		11 Control panel is touch screen;
		12 Power :0.25KW
		13 Power supply:220V 50HZ
		14 Air Supply:4-6MPa
