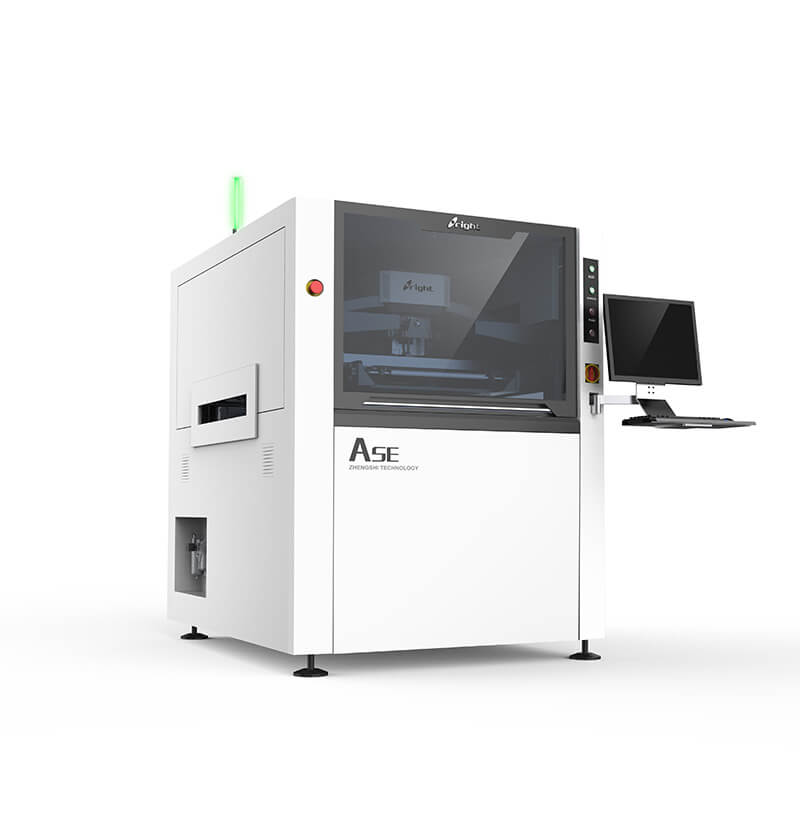

ASE SMT Stencil Printer

PCB Max Size 400×340mm
Printing Accuracy ±0.025mm
size: 1220（L）×1355（W）×1500（H）mm
Weight:1000Kg
Product description: ASE SMT Stencil Printer Fully Automatic,
INQUIRY

ASE SMT Stencil Printer Fully Automatic

Products description

ASE SMT Stencil Printer Fully Automatic

Specification ：

A Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size：50mm x 50mm ~400mm x 340mm;

PCB thickness: 0.4mm ~ 6mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Machine specification parameters

Model			Ase
Screen Frames		Min Size	470×370mm
		Max Size	737×737mm
		Thickness	25~40mm
PCB Min Size			50×50mm
PCB Max Size			400×340mm
PCB Thickness			0.4~6mm
PCB Warpage			<1%
Transport Height			900±40mm
Transport Direction			Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed			Max 1500mm/s（Programmable）
Board Location PCB	Support System		Magnetic Pin/Up-down table adjusted/support block
	Clamping System		Side clamping,vacuum Nozzle
Printer Head			Two independent motorised printhead
Squeegee Speed			6~200mm/sec
Squeegee Pressure			0~15kg
Squeegee Angel			60°/55°/45°
Squeegee Type			Stainless steel（standard）,plastic
Stencil Separation Speed			0.1~20mm/sec （Programmable）
Cleaning System			Dry 、Wet、Vacuum （Programmable）
Table Adjustment Ranges			X:±10mm;Y:±10mm;θ:±2°
Machine
Repeate Position Accuracy			±0.01mm
Printing Accuracy			±0.025mm
Cycle Time			<7s（Exclude Printing & Cleaning）
Product Changeover			<5Min
Air Required			4.5~6kg/cm2
Power Input			AC:220±10%,50/60HZ1F3KW
Control Method			PC Control
Machine Dimensions			1220（L）×1355（W）×1500（H）mm
Machine Weight			Approx:1000kg

Keywords:

SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer, 600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
