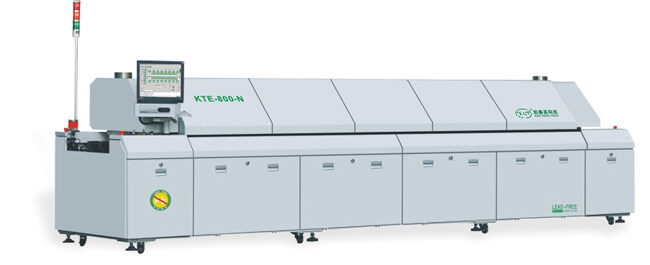

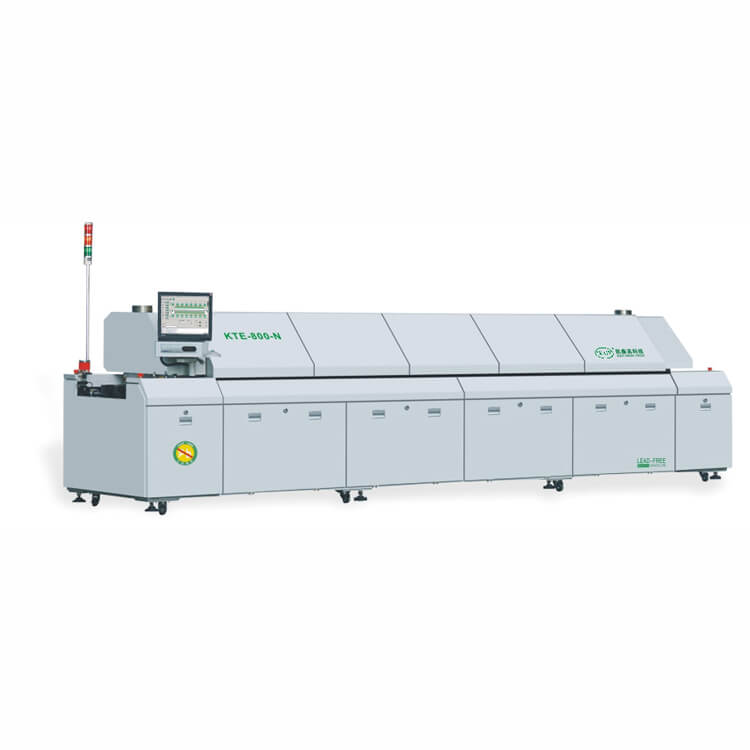

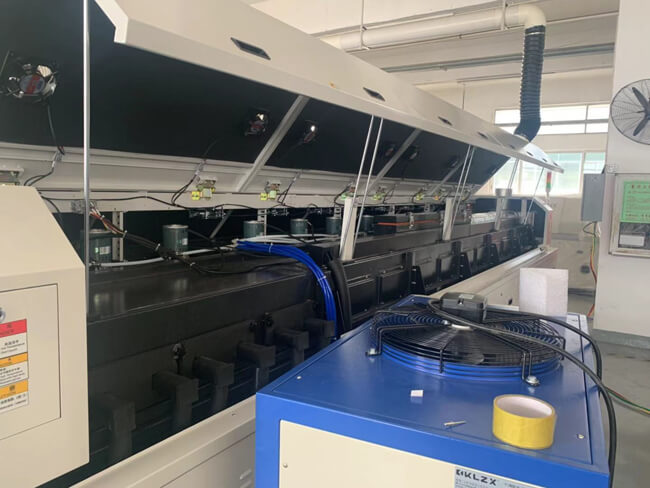

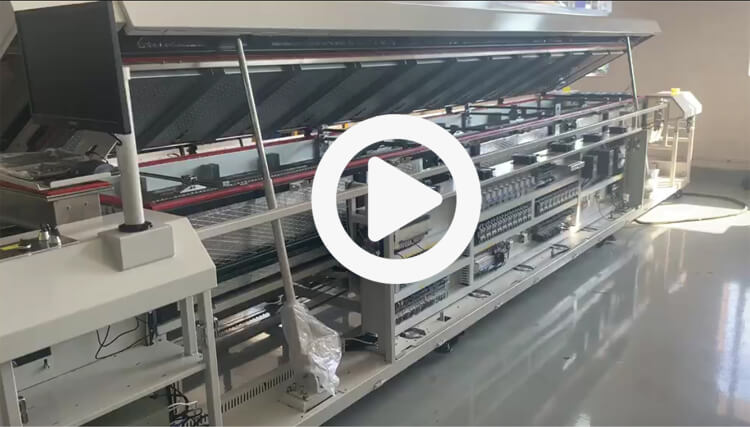

8 Zones Nitrogen SMT Reflow Oven KTE 800-N

Nitrogen soldering process
2 cooling zones
Weight Apprx.:2300KG
Dimension 5310*1360*1490mm
Product description: 8 Zones Nitrogen SMT Reflow Oven KTE 800-N, Nitrogen soldering process, 2 cooling zones, Weight Apprx.:2300KG, Dimension 5310*1360*1490mm
INQUIRY

Specifications:

8 Zones Nitrogen SMT Reflow Oven KTE 800-N

Features:
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
7. The temperature inspection instrument constantly monitors the temperature of each temperature zone, ultra-high temperature protection, and automatically switch off the heating power
8. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.
The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.

*Machine Specification*
Model	KTE-800-N	Control	Industrial computer
Heating zones qty.	Top 8, bottom 8	Cooling zones qty.	Top 2
Heating zone length	3110mm	Rectifying plate	Galvanized plate
Weight	Apprx.:2300KG	Dimension	531013601490mm
Exhaust capacity	10㎡/min×2	Color	Grey
*Nitrogen* *system*
With "-N" standard configuration including nitrogen sealed structure and pipeline, nitrogen flow meter, water chiller cooling system
Full Nitrogen system: Oxygen analyzer added on the N Standard
Nitrogen consumption Standard width machine (400mm Width): 300-1000ppmO2ppm, 10-20m3/ hr
N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr
*Control system*
Electricity supply	3P 380V/220V 50/60HZ	Temp. control range	Room temp.～300℃
Total power	64KW	Temp. control accuracy	±1℃（static state）
Start power	30KW	Temp. control method	PID +SSR drive
Consumption power	10KW	PCB temperature deviation	±1.5℃
Speed control	Inverter adjust	Data save	All profiles can be saved
Warm up time	Apprx.30minute	Abnormal alarm	High, low temp. alarm
*Conveying system*
Rail structure	2 sectional rails	Rail fixed method	Front fix
Chain	Stuck-free type	Conveying height	900±20mm
PCB Max. width	50-400mm	Conveying method	Rail+ mesh+ chain
Component height	Top/bottom 25mm	Conveying speed	300-2000mm
Conveying direction	Left to right	Lubrication	Automatic
*Cooling system*
Cooling method	water chiller
*Heating features*
Heating zones	Top 8,bottom 8（3110mm）can meet the need of the peak lead-free technique.
Cooling zones	After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time	From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence	Warm up from two side, save the power and time
Profile transfer time	＜15min
Heating zone temp. control accuracy	±1℃
PCB temp. deviation	±1.5℃
Empty to full load heat balance respond time	≤20 s
