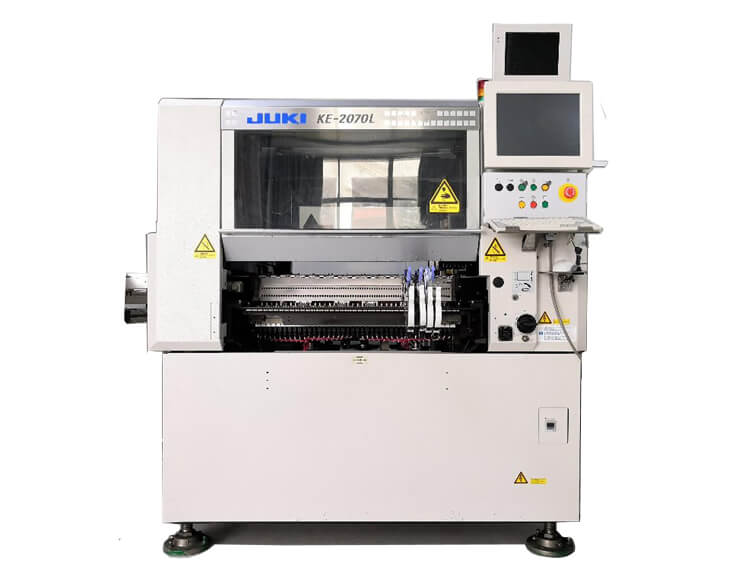

JUKI KE-2070 Pick and Place Machine

Applicable Components: 0402 (01005) 33.5mm
Board size:330×250mm
Feeder inputs:80
placement capacity:23,300CPH
Product description: JUKI KE-2070 high speed Pick and Place Machine, Applicable Components: 0402 (01005)-33.5mm, Board size:330×250mm, Feeder inputs:80, placement capacity:23,300CPH
INQUIRY

JUKI KE-2070 Pick and Place Machine

Introduce:

With the addition of the optional MNVC, the component range can be increased even more for greater flexibility.

Chip Mounter Speed:23,300CPH

laser centering/Optimum 0.155Sec./chip

18,300CPH laser centering/IPC 9850
IC 4,600CPH (vision centering with optional MNVC)
One multi-Nozzle laser head (6 nozzles)
From 0402 (01005) to 33.5mm square components
Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)
1 Actual throughput may vary.

2 Please download brochure for details.

Main Features of SMT Pick and Place Machine

Board size	M size (330×250mm)
	L size (410×360mm)
	L-Wide size(510×360mm) (option)
	E size (510×460mm)*1
Component size	Laser recognition		0402 (01005) 33.5mm
	Vision recognition	Standard camera	3mm*2 33.5mm
		High-resolution camera (option)	1.0×0.5mm*3 20mm
Placement speed	Chip	Optimum	0.155Sec./chip(23,300CPH)
		IPC9850	18,300CPH
	IC*4		4,600CPH*5
Placement accuracy	Laser recognition		±0.05mm Cpk 1
	Vision recognition		±0.04mm
Feeder inputs				Max. 80 on 8mm T/F*6

*1 Please ask for details on E size board.

*2 When using MNVC. (option)

*3 When using both high-resolution camera and MNVC. (option)

*4 Effective tact: The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.(CPH=number of components placed for one hour)

*5 Estimated value when using MNVC (option) and picking up components simultaneous with all nozzles.

*6 Including matrix tray changer, max 110.
