FUJI QP341 Placement Rubber Nozzle BHPH4201

Products description

FUJI QP341 INDEX SMT NOZZLE
Part Number Description
ADBPN-8123 QP-3 NOZZLE 1.8Φ
ADBPN-8133 QP-3 NOZZLE 2.5Φ
ADBPN-8193 QP-3 NOZZLE 2.5ΦG
ADBPN-8143 QP-3 NOZZLE 3.75Φ
ADBPN-8023 QP-3 NOZZLE 5Φ
ADBPN-8203 QP-3 NOZZLE 5ΦG
ADBPN-8213 QP-3 NOZZLE 8ΦG
ADBPN-8223 QP-3 NOZZLE 15ΦG
ADBPN-8233 QP-3 NOZZLE 17.5ΦG
ADBPN-8180 QP-3 NOZZLE SINGLE 20Φ L=270
ADBPN-8440 QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340 QP-3 NOZZLE SINGLE 20Φ L=110
ADBPN-8341 QP-3 NOZZLE SINGLE 23ΦG (for BGA)

FUJI QP242 QP132 INDEX SMT NOZZLE
Part Number Description
ABHPN - 8510 QP-S-12 -Ø 0.7
ABHPN - 8520 QP-S-12 NZ. Ø 1.0
ABHPN - 8530 QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560 QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570 QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590 QP-L-47 NZ. Ø 7.0
CGPN-8036 QP132 Ø0.7 / Ø0.4
CGPN-80250 QP132 Ø1.0 / Ø0.7
CGPN-8015 QP132 Ø1.3 / Ø0.9

FUJI CP3 DARKPOINT SMT NOZZLE
Part Number Description
AGPH - 9560 FUJI CP3/S SMT NOZZLE Ø 0.7
AGPH - 9410 FUJI CP3/S SMT NOZZLE Ø 1.0
AGPH - 9130 FUJI CP3/S SMT NOZZLE Ø 1.3
AGPH - 9050 FUJI CP3/S SMT NOZZLE Ø 1.3 (MELF)
AGPH - 9470 FUJI CP3/L SMT NOZZLE Ø 1.3
AGPH - 9060 FUJI CP3/L SMT NOZZLE Ø 2.5
AGPH - 9430 CP3/L Ø 3.4
AGPH - 9460 CP3/L Ø 1.3 (MELF)
AGPH - 9570 CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550 CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190 CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200 CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440 CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5

FUJI CP4 CP6 CP7 SMT NOZZLE
Part Number Description
AMPH - 8710 CP4/S Ø 0.7
AMPH - 8720 CP4/S Ø 1.0
AMPH - 8730 CP4/S Ø 1.3
AMPH - 8740 CP4/S Ø 1.8
AMPH - 8750 CP4/S Ø 2.5
AMPH - 8760 CP4/L Ø 2.5
AMPH - 8770 CP4/L Ø 3.7
AMPH - 8780 CP4/L Ø 5.0
AWPH - 9510 CP6/S Ø 0.7
AWPH - 9520 CP6/S Ø 1.0
AWPH - 9530 CP6/S Ø 1.3
AWPH - 9550 CP6/S Ø 1.8
AWPH - 9541 CP6/S Ø 1.3 (MELF)
AWPH - 9580 CP6/L Ø 2.5
AWPH - 9600 CP6/L Ø 3.7
AWPH - 9591 CP6/L Ø 2.5 (MELF)
AWPH - 9560 CP6/M Ø 2.5
ADCPH - 9510 CP7/S Ø0.4 (8mm Diameter)
ADCPH - 9520 CP7/S Ø0.7 (8mm Diameter)
ADCPH - 9530 CP7/S Ø1.0 (8mm Diameter)
ADCPH - 9540 CP7/S Ø1.3 (8mm Diameter)
ADCPH - 9700 CP7/S Ø1.3 (8mm Diameter) MELF
ADCPH - 9550 CP7/S Ø1.8 (16mm Diameter)
ADCPH - 9560 CP7/L Ø2.5 (16mm Diameter)
ADCPH - 9710 CP7/L Ø2.5 (16mm Diameter) MELF
ADCPH - 9570 CP7/L Ø3.7 (16mm Diameter)
ADCPH - 9580 CP7/L Ø5.0 (16mm Diameter) SQUARE

FUJI IP IP2 IP3 SMT NOZZLE
Part Number Description
IPH - 3431 FUJI IP SMT NOZZLE - SS NOZZLE Ø 1.0
IPH - 3421 FUJI IP SMT NOZZLE - S NOZZLE Ø 1.3
IPH - 3411 FUJI IP SMT NOZZLE - M NOZZLE Ø 2.5
IPH - 3401 FUJI IP SMT NOZZLE - L NOZZLE Ø 4.0
IPH - 4511 FUJI IP SMT NOZZLE - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520 IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531 IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541 IP - LL NOZZLE Ø 20.0 (WITH CAP)
AKPH - 2051 IP2 - SS Ø 1.0 (FIXED)
AKPH - 2031 IP2 - S Ø 1.3 (FIXED)
AKPH - 2041 IP2 - M Ø 2.5 (FIXED)
AKPH - 2061 IP2 - L Ø 4.0 (FIXED)
AQNA - 3130/39 IP3 - Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49 IP3 - Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59 IP3 - Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69 IP3 - Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170 IP3 - Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180 IP3 - Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190 IP3 - Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01 IP3 - Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95 IP3 - Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04 IP3 - Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14 IP3 - Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24 IP3 - Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34 IP3 - Ø 6.5 (FIXED) (52 x 52mm)
IPA - 0007 IP - LL ADAPTOR Ø 7.0
IPA - 0010 IP - LL ADAPTOR Ø 10.0
IPA - 0015 IP - LL ADAPTOR Ø 15.0
IPA - 0020 IP - LL ADAPTOR Ø 20.0

FUJI QP QP132 QP242 QP341 SMT NOZZLE
Part Number Description
BHPN - 3271 QP SMT NOZZLE SPRING PLATE
BHPN - 3232 QP SMT NOZZLE SPRING PLATE
ABHPN - 6246 - Ø 2.5
ABHPN - 6256 - Ø 3.75
ABHPN - 6276 - Ø 7.0
ABHPN - 6365 - Ø 7.0
ABHPN - 6852 - Ø 5.0 (W/RUBBER CUP)
ABHPN - 6893 - Ø 8.0 (W/RUBBER CUP)
ABHPN - 6803 - Ø 15.0 (W/RUBBER CUP)
ABHPN - 6703 - Ø 17.5 (W/RUBBER CUP)
CGPN-8036 QP132 Ø0.7 / Ø0.4
CGPN-80250 QP132 Ø1.0 / Ø0.7
CGPN-8015 QP132 Ø1.3 / Ø0.9
ABHPN - 8510 QP-S-12 -Ø 0.7
ABHPN - 8520 QP-S-12 NZ. Ø 1.0
ABHPN - 8530 QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560 QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570 QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590 QP-L-47 NZ. Ø 7.0

AA0AS00 Nozzle 1.0
AA06800 Nozzle 1.3
AA0HL00 Nozzle 1.8
AA0HM00 Nozzle 2.5
AA0HN00 Nozzle 3.7
AA0HR01 Nozzle 5.0
AA08000 Nozzle 7.0
AA08100 Nozzle 10.0
AA08200 Nozzle 15.0
AA08300 Nozzle 20.0
AA0MZ00 Nozzle 1.3m MELF
AA11R00 Nozzle 1.8m MELF
AA08410 Nozzle 2.5G with rubber pad
AA08500 Nozzle 3.7G with rubber pad
AA07200 Nozzle 5.0G with rubber pad
AA07310 Nozzle 7.0G with rubber pad
AA07410 Nozzle 10.0G with rubber pad
AA07510 Nozzle 15.0G with rubber pad
AA07610 Nozzle 20.0G with rubber pad

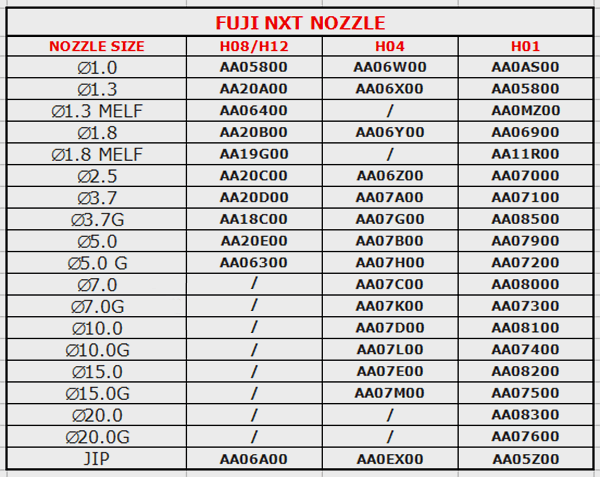

FUJI NXT NOZZLE H04 PLACING HEAD
Part Number Description
AA06W00 Nozzle 1.0
AA06X00 Nozzle 1.3
AA06Y00 Nozzle 1.8
AA06Z00 Nozzle 2.5
AA07A00 Nozzle 3.7
AA07B00 Nozzle 5.0
AA07C00 Nozzle 7.0
AA07D00 Nozzle 10.0
AA07E00 Nozzle 15.0
AA22Y00 Nozzle 1.3m MELF
AA22Z00 Nozzle 1.8m MELF
AA07F00 Nozzle 2.5 with rubber pad
AA00G00 Nozzle 3.7 with rubber pad
AA00H00 Nozzle 5.0 with rubber pad
AA07K00 Nozzle 7.0 with rubber pad
AA07L00 Nozzle 10.0 with rubber pad
AA07M00 Nozzle 15.0 with rubber pad

FUJI NXT NOZZLE H08/ H12S PLACING HEAD
AA1AT00 Nozzle 0.3
AA05600 Nozzle 0.4
AA05700 Nozzle 0.7
AA05800 Nozzle 1.0
AA20A00 Nozzle 1.3
AA20B00 Nozzle 1.8
AA20C01 Nozzle 2.5
AA0WT00 Nozzle 2.5G
AA20D00 Nozzle 3.7
AA20E00 Nozzle 5.0
AA06400 Nozzle 1.3m MELF
AA19G00 Nozzle 1.8m MELF
AA18C00 Nozzle 3.7G with rubber pad
AA06300 Nozzle 5.0G with rubber pad

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
